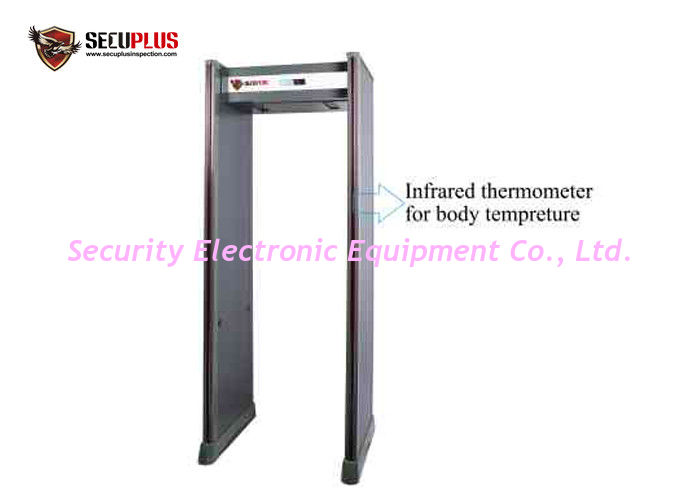

Shock Proof Archway Metal Detector Gate Auto Body Temperature Detection System

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Shock Proof Archway Metal Detector Gate Auto Body Temperature Detection System

Shock Proof Archway Metal Detector Gate Auto Body Temperature Detection System
Shock Proof Archway Metal Detector Gate Auto Body Temperature Detection System

Large Image :  Shock Proof Archway Metal Detector Gate Auto Body Temperature Detection System

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO9001, FCC, RoHS
Model Number: SPW-300B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: 7 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Detailed Product Description
False Alarm: <1% Detection Zones: 6,12,18 Zones
Sensitivity: Detect A Small Pin Material: Fire And Shock Proof Material
Waterproof: IP55 Induction Loop: Pure Copper
Alarm: Audio And LED Alarm Technical Training: Free
Production Life: 10 Years Warranty: 18 Months
High Light:

metal detectors at airports

,

door frame metal detector



auto body temperature detection system archway metal detector gate in public area



    Walkthrough Metal Detector can easily detect weapons, such as knife and gun, and any metal articles which are hidden in human body.



Specification description :


* 18 Pinpoint zones to precisely identify multiple target locations from head to toe.
* Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
* Sensitivity adjustable from Level 0 to 299

   High: Can detect a pin
   Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g),

   ignoring metal in belt button, shoes.


* Shock proof to avoid false alarm
* Sound and light alarm
* With remote controller.

* 4 LED light bars on both door panels: gives alarm corresponding to the height or human body.

* Perfect weather-proofing design: Can work in heavy rain.

* LCD screen show operate steps in English and Chinese

* Networking: Remote ability with Desktop Remote Control. ( Optional)



* Tamper-Proof: operate program is protected by password.
* Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.

* Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
* Harmless to pregnant woman and heart pacemaker



Applications:



Commercial buildings; Factories(to find needle in clothing,  shoes,  bags)
Courthouses; Embassies;  Government buildings;
Military installations; Prisons; Hotels;
Schools; Convention centers; Security checkpoints.

Excellent system for schools,  hotels,  convention centers and event-based security requirements



Specifications:



Electric current: AC100V~230V   50/60Hz

Power: 10W

Work environment: -20℃~+45℃

Gross Weight: 95kg

Outer frame: 2220mm (h) x 820mm (w) X 522mm (d)

Inner frame: 2000mm (h) X 700mm (w) X 522mm (d)



Competitive Advantage:



High sensitivity,  economic model

Easy to Install, Simple to Operate.

Perfect weather-proof design for outdoor use



Our services:



1. Professional reply for your question in time during Monday to Friday 24 hours.
2. All of our product already get pass the aging test, to ensure reliability of using.
3. Quality inspection department will check the machine again before packing
4. One years spare parts in free for replacing the broken after delivery .
5. Remote control the machine for diagnosing
6. Technic support by video and telephone
7. Accept your engineer come to our factory for training in free
8. Send engineer to your country with additional cost
9. Operation training program for end users
10. Free of factory training for engineer from agents or end user
11. One year free of spare parts
12. Life time technical support
