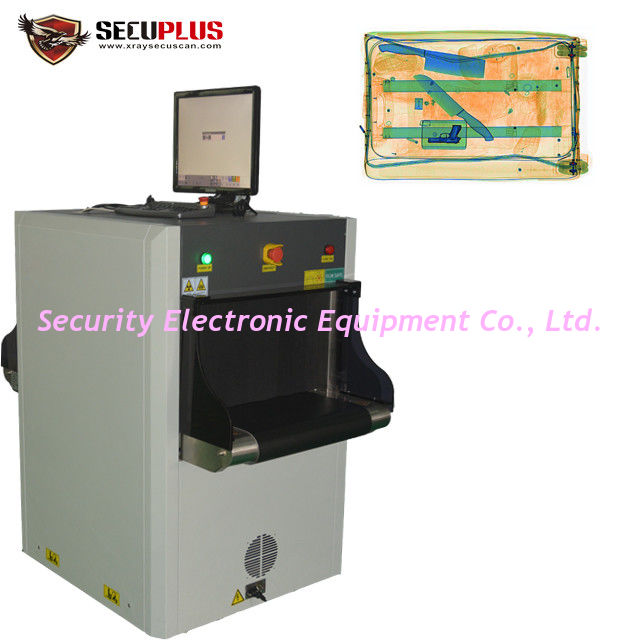

Oil Cooling X Ray Baggage Scanner Parcels Machine SPX5030C CE FCC ROHS Certificated

Large Image : Oil Cooling X Ray Baggage Scanner Parcels Machine SPX5030C CE FCC ROHS Certificated

Product Details:

Place of Origin:	CHINA
Brand Name:	SECUPLUS
Certification:	CE ROHS FCC
Model Number:	SPX-5030C

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Plywood Pallet
Delivery Time:	7 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	200 units per months

Contact Now

Detailed Product Description

Tunnel Size:	50*30cm	Have In Stocks:	More Than 10 Units
Warranty:	12 Months	Support:	7 Days Per Week Online
Installation:	User Manual&Video	Training:	Free In Our Factory
Highlight:	airport screening machines , airport baggage scanner

X ray Baggage Scanner SPX-5030C CE FCC ROHS certificated X-ray Parcels machine

Oil Cooling X Ray Baggage Scanner Parcels Machine SPX5030C CE FCC ROHS Certificated 0

Tunnel size	504320mm (wh)
Conveyor speed	0.20m/s
Conveyor height	693mm
Max Load	100kgs
Wire Resolution	38AWG
Spatial resolution	Vertical: diameter 1.0mm, horizontal: diameter 1.0mm
Penetration	14 mm steel panel
Monitor	17inch, resolution 1280*1024
X Ray generator anode voltage	100KV
Cooling/operation cycle	Oil Cooling /100%
X ray Dose per inspection	<0.16 μSv
Image processing	Color/black & white image, Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom	Variable zoom up to X64, support continuous magnification.
Image Checking	Continuous check back image
Storage capacity	Can store more than 100000 images
Radiation leakage	<0.4 μSv/h(5cm away from fame), in full compliance with all international radiation safety requirements.
Film safety	In accordance with ASA/ISO1600 film safe standard
System function	F programmable key, high density alarm, TIP; Date/Time display, Baggage Count, User management, System work timing, Radiation timing, Self-inspection while power on, Save and search image, Automatically maintenance and diagnosis system, Image recognition training.
Optional function	Video surveillance system, LED prompt screen, Bi-direction scan, Voltage stabilizer, UPS back up
Weight	300kg
Environment temperature/humidity	- 3℃～+40℃±2℃ / 5%～95%(non-condensing)
Storage temperature/humidity	-43℃～+60℃±2℃ / 5%～95%(non-condensing)
Power	220VAC (+/-10%) 50+/-3HZ
Consumption	0.6KvA
Noise Level	<55db
