Product Details:
Place of Origin: CHINA
Brand Name: SECUPLUS
Certification: CE, ISO9001
Model Number: SPV-5000ES
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: wooden box
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set per month
Detailed Product Description
Material: Stainless Steel Water Proof: IP68
Function: To Check Bomb In Vehicles Scanning Image: B/W, Color
Software: Multi-language Support Camera: Color
Technology: Area Scan Warranty: 18 Months
Resolution: 4096P
High Light:

under vehicle inspection systems

,

car surveillance system

Color Embedded Under Vehicle Surveillance System

Unique features:

  • Area Scan Digital Image Processing technology, superior in every way to line scanners uvss
  • 3D images : high resolution composite (stitched frames) images of vehicle undercarriages regardless of size, weight or speed,You can even stop on top of any SPV-5000ES UVSS without affecting the image.
  • Automatic Foreign Object Detection :automatically mark the suspicious with a red rectangle, like. explosive or change to undercarriage
  • Automatic Reference Image Recall and compare
  • Automatic License Plate Reader System (option)
  • Easy to install and maintain

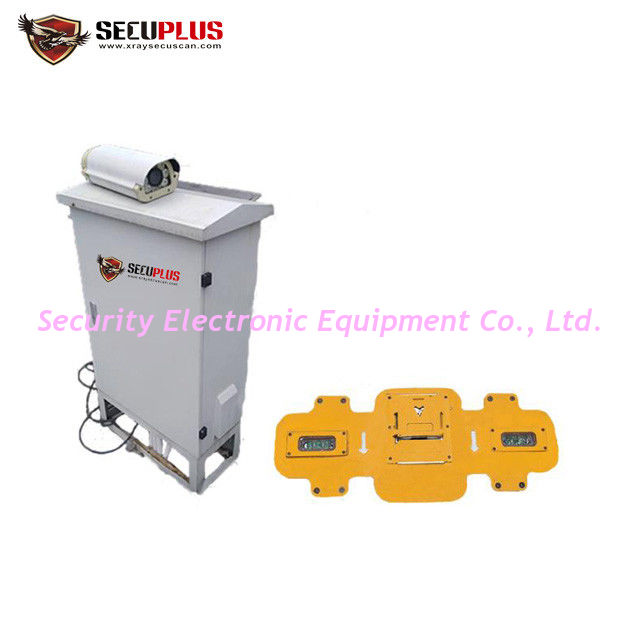

SPV-5000ES UVSS is an embedded solution for the fully identification of threats or modifications to a vehicle’s undercarriage. It can quickly and accurately identify threats , contraband objects and stowaway who are hidden at the bottom of vehicle. Vehicles drive over the embedded scanning units while SPV-5000 systems compile high-resolution images to create the vehicle’s “fingerprint." It’s easy to see any threatening objects that may be hidden on top of an axel or crossbeam. An overview camera captures the normal view of car and displays this on the high-resolution monitor .



Coloured under vehicle scanning camera:


Vertical resolution of the image: 4096 pixels
Check the width viewing angle:not less than 4 meters
Speed of vehicle:30~75km/h
Effective FOV:not less than 170°
Auxiliary light:100W
Bearing weight: more than 40T
Waterproof grade:IP68 meet the condition of working around the clock
Scanning device weight:30KG
Scanning device volume:

753L * 353W * 41H mm

Communication interface:RJ45
Operating Temperature:-25ºC to 55ºC
Storage temperature:-40ºC to +75ºC
Operating voltage: 110-240V AC, 50-60HZ


Color under vehicle scanning unit :

Camera: SensorArea scan camera
Resolution:

10000 × 4096 pixels

Power Supply24VDC, 3A
Min operate time :110us
Pixel size :14um x 14um
Sampling bits wide :8bit
Dynamic Range :76db
Sensitivity : 15,21,37V/uJ/cm2(wave
Transmission mode : (Gigabit Ethernet) /100m
Power Dissipation :less 8W,12V
Working Temperature:0ºC to 60ºC


Our Services:

1. Free training in our factory

2. Accept arrange engineer to your country with additonal cost
3. After-sales service online 18/24 hours
4. Remote control the machine for maintenance diagnosing
5. Free spare parts supply during the warranty
6. Exclusive agent protection and special support for market
7. OEM and ODM service accept
