Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 500mm*300mm | Conveyor Max Load: | 150KG |
|---|---|---|---|
| Penetration: | 28-32mm Steel | Film Safety: | Guarantee ISO1600 Film |
| Have In Stock: | Yes | Certificate: | CE |
| Automic Scanning: | Yes | Bidirectional Scanning: | Yes |
| High Light: | airport screening machines,security screening equipment |
||

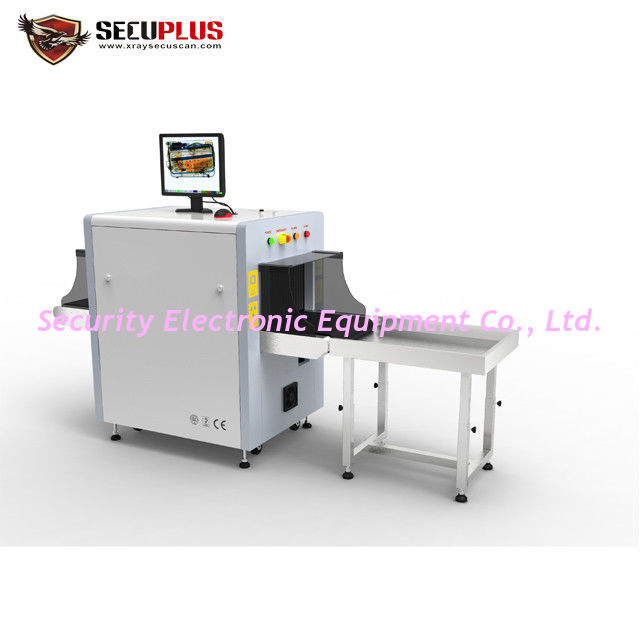

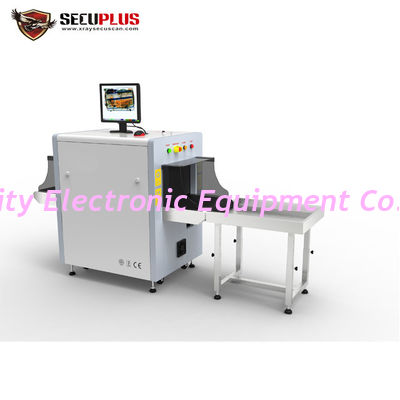

Huge stocks X Ray Baggage Scanner SPX5030C with TIP function machine
General Specification
|
Tunnel Size: |
500(W)*300H)mm |
|
Conveyor Speed: |
0.22m/s |
|
Conveyor Max Load: |
150kgs |
|
Wire Resolution: |
32AWG to 38 AWG |
|
Spatial resolution: |
horizontal:1.3 or 1.0mm, |
|
Penetration: |
28-32 mm Steel |
|
Film Safety: |
Guarantee ISO1600 Film |
|
X-ray Leakage: |
<1μGy/h (at a distance of 5cm From external housing) |
| Pass rate: | 720 bags per hour |
|
Beam direction: |
Diagonal |
|
Generate angle: |
80 degree |
|
Anode Voltage: |
140Kv |
|
Anode power: |
0.4 to 1.2mA |
|
Cooling / Duty Cycle: |
Oil Cooling /100% |
|
X-ray Sensor: |
L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
|
Monitor: |
High Resolution LCD Accord, 17 inch |
|
Image Processing: |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
|
Image Grey Level: |
4096 |
|
Image Max Resolution: |
1024 * 768 pixel |
|
Image Processing: |
24bit for processing real time |
|
Image storage: |
Storage 100000 pictures in real time |
|
Zoom: |
64 Times Enlarge, Whole screen continuous observation |
|
Operation temperature/Humidity: |
0℃-45℃/20%-95%(non-condensing) |
|
Storage Temperature/Humidity: |
-20℃-60℃/20%-95%(non-condensing) |
|
Operation Power: |
220VAC(±10%)50±3Hz |
|
Power Consumption: |
1 KW (max) |
|
Noise: |
<60db |
SPX5030C offers another way to see inside of handbags,briefcases. It popular accepted as a nonintrusively optimize security measure .
SPX5030C give you innovative and costeffective solutions.
It's a great help to exclude the threats and contraband.
SPX5030C is friendly operation system, and easy to maintenance .
Applications:
01. railway station
02. Transport terminals,
03. Buildings,
04. Factories (to find needle in clothing, shoes, bags),
05. Courthouses,
06. Embassies,
07. Military installations,
08. Prisons,
09. Hotels,
10. Schools ,
11. Convention centers,
12. Security checkpoints
13. Special events location
Scan Image
Detailed Product Description:
X-ray scanner offers a modern technology to secure entry checkpoints for important locations like airports, transport terminals, buildings, and so on.
Our systems screen baggage and parcel, to detect contraband, weapons, dangerous and illegal items. Model AT100100 easily accommodates the inspection of big size baggage and parcels.
X RAY SYSTEM is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is easy to installation and maintenance. Over 100 systems per month installed in china and abroad.
Our products received certifications of CE, Test report from China Ministry of Public Security and Copyright for image Operation software SPHOTO.
As a manufacturer SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LTD has gotten the certificate ISO 9001:2008, ISO14001:2004 and OHSMS18001 GB/T 28001-2001 (Occupational Health and Safety Management System) certified company. We have Radiation Safety license from China Environmental Protection Administration.
X RAY SYSTEM is a professional security solution provider, a wise choice to governments and partners.
