Wireless Portable X Ray Baggage Inspection System With Industrial CCD Camera
Detailed Product Description
| High Light: |
airport screening machines, airport baggage scanner |
- wireless portable x ray system with industrial CCD camera for remote scanning in police, army
-
- Product Introduction

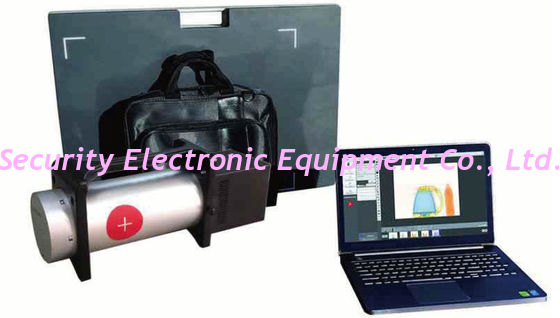

SPX-3025P portable X-ray scanner has clear image and compact and lightweight design. Using high-resolution digital imaging technology; integrated industrial CCD camera and advanced digital display system. Applicable to security inspection, criminal investigation, smuggling and factory product quality testing.
- Technical characteristics
- Dimensional imaging, accurate display of dangerous goods location and internal structure
- Dynamically capture images, support playback of dynamic video
- Scanning images are clear, the resolution is high and the imaging speed is fast. Use CCD industrial camera;
- High capacity battery life, meet the field operations
- Super software features: easy to achieve multi-touch gestures, physical size measurement, continuous image zoom, multi-effect image processing
- Security upgrades: provides X-ray delay and safety protection to ensure operator safety
- Modular design, easy maintenance
| Wire resolution |
40AWG (dia 0.787mm copper) |
| Penetration |
20mm steel/150mm aluminum |
| Image station |
Lenovo Flex3-14, touch screen 14.0 inches; HD LED 1366 * 768 resolution; windows 8 operating system; intel core i5-6200U; 4GB memory; 500GB hard drive; weight 1.85kg |
| Sensor type |
Industrial CCD camera |
| Imaging array |
1280*960 resolution |
| Effective imaging area |
304.8*252mm |
| data communication |
Wired transmission |
| Image acquisition time |
1-2s |
| X ray tube voltage |
100kv (120kv optional) |
| X ray source current |
1mA |
| X ray source weight |
9kgs |
| Image processing |
Edge enhancement, super penetration, local enhancement, histogram equalization, anti-color display, black and white display, pseudo-color display, relief display. |
| Area selection and enlargement |
Unlimited continuous magnification |
| Storage capacity |
At least 10000 images |
| Image display |
Support dynamic images |
| System function |
Date / time display, historical image preview, user management, image storage and retrieval, emergency stop operation, device status display. |
| Outline Dimensions |
X ray generator: 482*215*178mm (L*W*G) |
| Detection board : 462*366*164mm (L*W*G) |
| Total weight |
15kgs |
| Operating temp. |
-15℃～+50℃ |
| Storage temp. |
-40℃～+70℃ |
| Battery |
Rechargeable lithium ion battery(Supports 400 image captures) |
| Other function(optional) |
Print the image and connect network&dual energy |
