Security X Ray Scanning Machine 6550B Medium Size Baggage Scanner For Shoppingmall

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

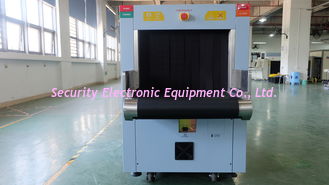

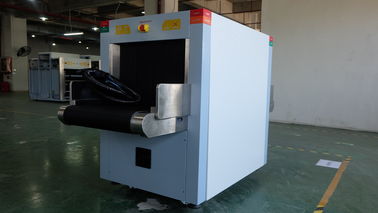

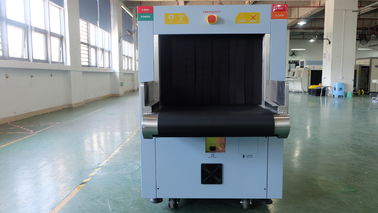

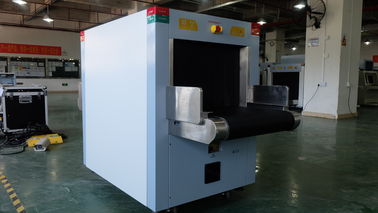

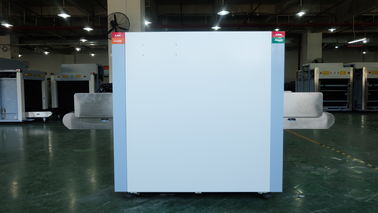

Security X Ray Scanning Machine 6550B Medium Size Baggage Scanner For Shoppingmall

Security X Ray Scanning Machine 6550B Medium Size Baggage Scanner For Shoppingmall
Security X Ray Scanning Machine 6550B Medium Size Baggage Scanner For Shoppingmall Security X Ray Scanning Machine 6550B Medium Size Baggage Scanner For Shoppingmall Security X Ray Scanning Machine 6550B Medium Size Baggage Scanner For Shoppingmall Security X Ray Scanning Machine 6550B Medium Size Baggage Scanner For Shoppingmall Security X Ray Scanning Machine 6550B Medium Size Baggage Scanner For Shoppingmall

Large Image :  Security X Ray Scanning Machine 6550B Medium Size Baggage Scanner For Shoppingmall

Product Details:
Place of Origin: China
Brand Name: secuscan
Certification: CE ISO
Model Number: AT6550B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood pallet
Delivery Time: within 7 working days
Payment Terms: T/T
Supply Ability: 300 SETS per month
Detailed Product Description
Tunnel Size: 653(W)*514(H)mm Conveyor Speed: 0.22m/s
Conveyor Height: 690mm Conveyor Max Load: 170kg
Wire Resolution: 40AWG Spatial Resolution Level: Dia1.0mm,Vertical: Dia1.0mm
OEM: Yes Steel Penetration: 38mm Guaranteed, 40mm Typical
High Light:

x ray security systems

,

airport x ray machine

X ray Scanning Machine 6550B Medium size baggage scanner for shoppingmall



General Specification



Tunnel Size 653(W)*514(H)mm
Conveyor Speed 0.22m/s
Conveyor height 690mm
Conveyor Max Load 170kg
Wire Resolution 40AWG
Spatial resolution Level dia1.0mm,Vertical: dia1.0mm
Steel Penetration 38mm guaranteed, 40mm typical
Film Safety guarantee ISO 1600 film
X-ray Leakage <1.0μ Sv / hr(at a distance of 5cm From external housing)



Image System



Memory gray level 65536
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
X-ray Sensor L-Shaped Photodiode Array ,16bit deep
Image storage More than 100,000 pictures in real time
Zoom 64X Times Enlarge, Whole screen continuous observation Multi-energetic distinguish retrieval00,000 pictures in real time
Objects Selective detection of Objects by atomic number, organic objects in orange, inorganic objects in blue, mixture in green
Monitor

High Resolution Color, LCD Accord, 17 inch

Image Processing: Black / white, abundant energy , variable absorptive, elimination of inanimate matter, elimination of organism, super-enhance, reversed color, high energy penetration, low energy penetration, image strengthening, image lightening, reducing darkening

High-energy/low energy switch from high energy to low energy
TIP function Automatic identification of threads such as knifes guns, etc
Assist to detect drug and explosive powder



X-ray Generator



Generate direct Upward
Generate anger 80 degree
Anode Voltage 160Kv
Anode power 0.8mA
Cooling / Duty Cycle Oil Cooling /100%





Computer Character



Computer CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB Little low version, Motherboards: Intel G41, Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1and 1PCI BX press *16 .

Memory: 2GB1333MHz DDR3 RAM, with Minimum2 total DIMM slots.

Hard Disk drive: 500GB 7200 rpm serial ATA.



Other Characters



Keyboard Protection: IP43

Machine Protection: IP20

Dual direction scanning

Extension Rollers: Optional

UPS: Optional

Support card reader operator access

Monitor Table: one LCD monitors, made in stainless steel.

it have vents and transparent parts

Computer system: Window XP System LCD monitor: 19 inch (optional)

Certificates: ISO9001:2008, CE



Operating Environment



Operation temperature/Humidity-------------0℃-45℃/10%-95%(non-condensing)
Storage Temperature/Humidity---------------------  -40℃-60℃/10%-95%(non-condensing)

Operation Power------------------220VAC (±10%), 50Hz

Power Consumption--------------------1.0 KW (max), 1.0KW (working)

Noise---------------- <58db





Workshop for X ray Baggage Scanner



Security X Ray Scanning Machine 6550B Medium Size Baggage Scanner For Shoppingmall 0

Security X Ray Scanning Machine 6550B Medium Size Baggage Scanner For Shoppingmall 1
