Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 653(W)*514(H)mm | Conveyor Max Load: | 170kg |
|---|---|---|---|
| Wire Resolution: | 40AWG | OEM: | Yes |
| Have In Stock: | Yes | Generator: | 160KV USA Brand |
| High Light: | airport screening machines,security screening equipment |
||

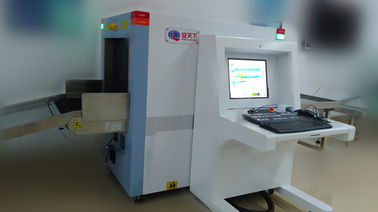

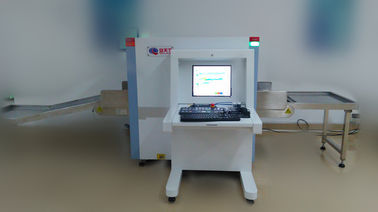

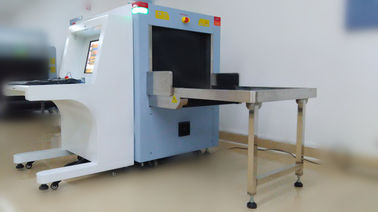

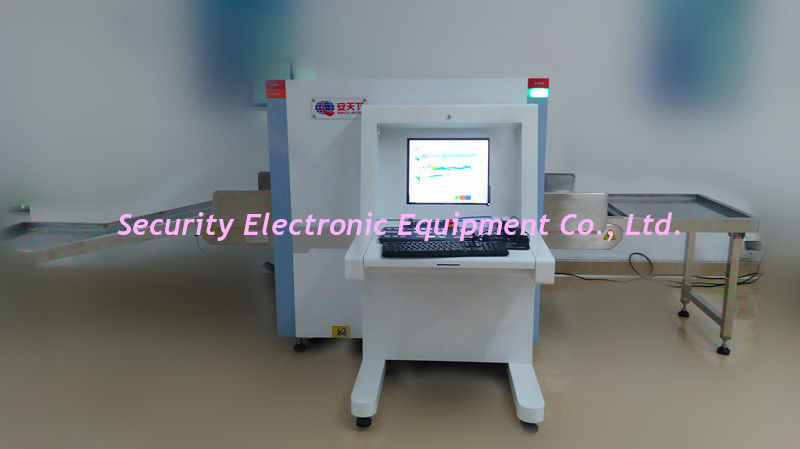

X ray Baggage Scanner 6550B 160KV generator fot government office security check
General Specification
| Tunnel Size | 653(W)*514(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor heigh | 690mm |
| Conveyor Max Load | 170kg |
| Wire Resolution | 40AWG |
| Spatial resolution Level | dia1.0mm,Vertical: dia1.0mm |
| Steel Penetration | 38mm guaranteed, 40mm typical |
| Film Safety | guarantee ISO 1600 film |
| X-ray Leakage | <1.0μ Sv / hr(at a distance of 5cm From external housing) |
Image System
| X-ray Sensor | L-Shaped Photodiode Array ,16bit deep |
| Monitor | High Resolution Color, LCD Accord, 17 inch |
| Image Processing | Black / white, abundant energy , variable absorptive, elimination of inanimate matter, elimination of organism, super-enhance, reversed color, high energy penetration, low energy penetration, image strengthening, image lightening, reducing darkening |
| Image storage | Storage 100,000 pictures in real time |
| Zoom | 64X Times Enlarge, Whole screen continuous observation Multi-energetic distinguish retrieval. Objects: Selective detection of Objects by atomic number, organic objects in orange, inorganic objects in blue, mixture in green |
| Memory gray level | 65536 |
| Image Max Resolution | 1024 * 1280 pixel |
| Image Processing | 24bit for processing real time |
| High-energy/low energy | switch from high energy to low energy |
| TIP function | Automatic identification of threads such as knifes guns, etc |
| Assist to detect drug and explosive powder | |
X-ray Generator
| Generate direct | Upward |
| Generate anger | 80 degree |
| Anode Voltage | 160Kv |
| Anode power | 0.8mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
Other Characters
| Keyboard Protection | IP43 |
| Machine Protection | IP20 |
| Dual direction scanning | |
| Extension Rollers | Optional |
| UPS | Optional |
| Support card reader operator access | |
| Monitor Table | one LCD monitors, made in stainless steel. it have vents and transparent parts |
| Computer system | indow XP System LCD monitor: 19 inch (optional) |
| Certificates | ISO9001:2008, CE |
Operating Environment
Operation temperature/Humidity:--------- 0℃-45℃/10%-95%(non-condensing)
Storage Temperature/Humidity------- -40℃-60℃/10%-95%(non-condensing)
Operation Power------------- 220VAC (±10%), 50Hz
Power Consumption--------------- 1.0 KW (max), 1.0KW (working)
Noise---------------- <58db
Computer Character
Computer CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB Little low version, Motherboards: Intel G41,
Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1and 1PCI BX press *16 .
Memory: 2GB1333MHz DDR3 RAM, with Minimum2 total DIMM slots.
Hard Disk drive: 500GB 7200 rpm serial ATA.
