Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Outer Size:	400.5350.5195.5mm (LWH)	Weight:	8.5kgs
Container Material:	Can Check Non-metallic Containers: Plastic/glass/ceramic, Metal Containers: Aluminum, Iron	Dangerous Liquids:	93# Gasoline, Kerosene, Diesel, Ether, Isopropyl Ether, Petroleum Ether, Acetaldehyde
Detection Time:	Less Than 1s	Alarm Way:	Sound And Light
Highlight:	liquid scanner , liquid detection

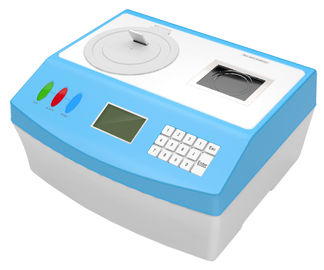

Big Size Bottle Liquid Scanner / Liquid Detection For Airport Security Inspection

Identify chemical composition of liquids, which is sealed in bottle or can.
Control access security of airport, train station, subway, gymnasium, important government office, boarder, and seaport and so on.
No radiation, harmless to people and test sample - Ultra-wideband pulse microwave reflection method & the thermal conductivity technology

Technical Specification:

Limited material of bottle / can	Iron, aluminum, plastic, glass, porcelain, china, pottery.
Identify dangerous liquid	More than 30 sorts: Gasoline, kerosene, diesel oil , hydrochloric acid , sulfuric acid , nitric acid , sodium hydroxide , potassium hydroxide , isopropyl ether , petroleum ether, propionaldehyde, benzene, carbon disulfide, hexane, isopropanol, nitromethane, diethylamine , tris the trihalomethanes , ethylene glycol, xylene and other flammable, corrosive liquids
Effective scan distance	Metal container: 30mm from bottom Other container: 60mm from bottom
Alarm for dangerous liquid	Red LED alarm light & long beep
Single for safe liquid	Green LED light & short beep
Power on time	2 seconds
Identify time	Metal container: within 4 seconds Other container: within 1 second
Out size	*400.5350.5195.5mm (LWH)*
Weight	8.5KG
Temperature of container	5-35°C
Storage temperature / humidity	-40°C to 60°C / 5% to 95% humidity
Working temperature / humidity	15°C to 35°C / 5% to 95% humidity
Power Voltage/ frequency	AC180-240V(50/60Hz)
Power consumption	10W

Company introduction:

The manufacturer of threats detecting device in south of China.

With professional R&D engineer team are specialized in:

We have successful cases in airports,customs and government, important events for protection.

The reliable military supplier of security screening system..

Our service:

Professional reply for your question in time before-sales during Monday to Friday in 24 hours
All of our product already get passing the aging test to ensure reliability quality
Quality inspection department will check the machine again before packing.
One year spare parts in free for replacing the broken after delivery
Remote control the machine for diagnosing
Technic support by video and telephone
Accept your engineer come to our factory for training free of cost
Send engineer to your country if necessary with additional cost.
