Product Details:
Payment & Shipping Terms:
|
| Wire Resolution: | 40AWG (dia 0.787mm Copper) | Penetration: | 20mm Steel/150mm Aluminum |
|---|---|---|---|
| Sensor Type: | Industrial CCD Camera | Imaging Array: | 1280*960 Resolution |
| X Ray Tube Voltage: | 100kv (120kv Optional) | OEM/ODM: | Accept |
| Total Weight: | 15 KG | X Ray Source Weight: | 9 Kg |
| High Light: | security screening equipment,airport baggage scanner |
||

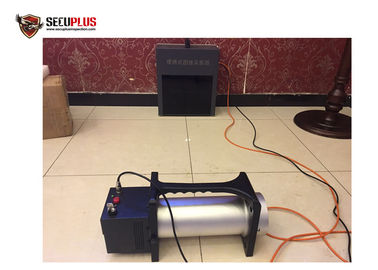

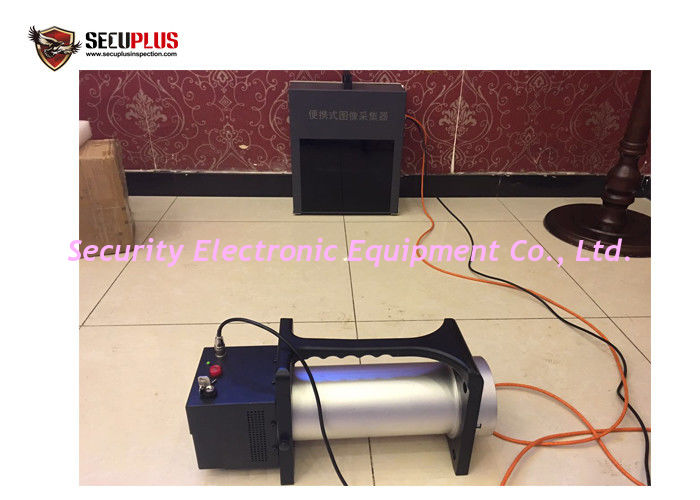

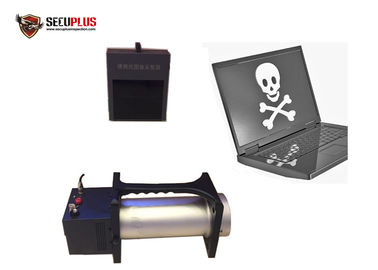

Police Use Portable X Ray Baggage Scanner With Industrial Ccd Camera
Product Introduction SPX-3025P portable X-ray scanner has clear image and compact and lightweight design. Using high-resolution digital imaging technology; integrated industrial CCD camera and advanced digital display system. Applicable to security inspection, criminal investigation, smuggling and factory product quality testing.
Technical characteristics
Product Specification
| Wire resolution | 40AWG (dia 0.787mm copper) |
| Penetration | 20mm steel/150mm aluminum |
| Image station | Lenovo Flex3-14, touch screen 14.0 inches; HD LED 1366 * 768 resolution; windows 8 operating system; intel core i5-6200U; 4GB memory; 500GB hard drive; weight 1.85kg |
| Sensor type | Industrial CCD camera |
| Imaging array | 1280*960 resolution |
| Effective imaging area | 304.8*252mm |
| data communication | Wired transmission |
| Image acquisition time | 1-2s |
| X ray tube voltage | 100kv (120kv optional) |
| X ray source current | 1mA |
| X ray source weight | 9kgs |
| Image processing | Edge enhancement, super penetration, local enhancement, histogram equalization, anti-color display, black and white display, pseudo-color display, relief display. |
| Area selection and enlargement | Unlimited continuous magnification |
| Storage capacity | At least 10000 images |
| Image display | Support dynamic images |
| System function | Date / time display, historical image preview, user management, image storage and retrieval, emergency stop operation, device status display. |
| Outline Dimensions | X ray generator: 482*215*178mm (L*W*G) |
| Detection board : 462*366*164mm (L*W*G) | |
| Total weight | 15kgs |
| Operating temp. | -15ºC~+50ºC |
| Storage temp. | -40ºC~+70ºC |
| Battery | Rechargeable lithium ion battery (Supports 400 image captures) |
| Other function(optional) | Print the image and connect network |
