Entry / Exit Gate Under Vehicle Surveillance System

China Entry / Exit Gate Under Vehicle Surveillance System supplier
Entry / Exit Gate Under Vehicle Surveillance System supplier Entry / Exit Gate Under Vehicle Surveillance System supplier Entry / Exit Gate Under Vehicle Surveillance System supplier Entry / Exit Gate Under Vehicle Surveillance System supplier

Large Image :  Entry / Exit Gate Under Vehicle Surveillance System

Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE
Model Number: SPV3300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 3 packages with plywood pallet
Delivery Time: within 7 working days after got your payment
Payment Terms: TT advance, L/C, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Scanning Mode: Line Scan Weather Proof Scanning Unit: IP68 Meet All Kinds Of Climate
Maximum Scan Rate: 18kHz Weight Capacity: 50T
Vehicle Length: 1-25M Working Temperature: -20 To -60℃
High Light:

under vehicle inspection systems

,

car surveillance system

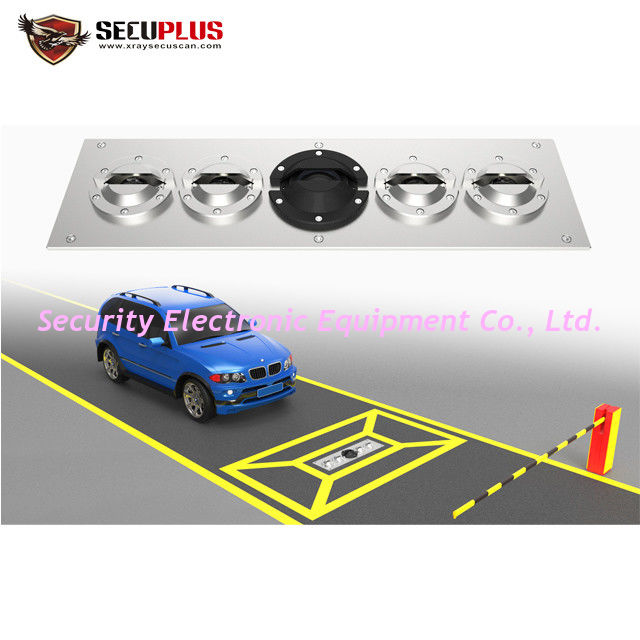

Entry and Exit gate Under Vehicle Surveillance System SPV3300 for security check



Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources



Features:

  1. Digital linear array scanning camera, with high image resolution and clarity, complete imaging, without any omission, clear image, complete, no deformation, can clearly observe the object not less than 2mm.
  2. IP68 high protection level, anti pressure, anti vibration, suitable for any climate.
  3. The inspection process can be compiled on-site to meet the needs of various fields.
  4. Multi scene image surveillance, video function, etc.
  5. Interface operation design of multilingual language.
  6. Support image recognition or RFID technology for vehicle identity recognition.
  7. Strong ability to expand, you can easily achieve a variety of system linkage control..
  8. Support multiple device networking control functions.

Specifacations:



Camera Sensor: line scan CCD
Resolution 5000*2048 pixels
Power Supply 24VDC, 3A
Illumination LED
Scanning unit size L1100*W280*H234mm
Scanning unit weight 105Kg
Operating Temperature Range -20 to -60℃
Weight capacity 50T
Image resolution >12000*6000
Scanning direction Bi-directional scanning
LED lights Single body sealed LED surface light source
LED service life 50000H
Scanner data line length 100M(customized)
Monitor 22inch LCD, resolution up to 1920*1080
Scene Video Record 4 channel, Compression algorithm of scene video: H264
Power AC110-240V 50-60HZ



Controller



●Input: 2 channels induction coil

●Output: 1 Channel switch type 12VDC

●Communication port: RS485, Ethernet(Optional)

●Operating Temperature: -10℃ to 55℃



System Host



●Brand: Grantech (SYM76941VGGA)

●CPU: Intel(R)Celeron(R)CPU

              E3400@2.6GHz 2.59 GHz

●Memory:2G( optional 4G)

●Graphics:512M

●Hard Disk:SATA2 Hard Disk 500G

●Dual LAN (At least one Intel Gigabit)

●USB2.0 (Up to 2 pieces)

●Monitor: 22inch LCD, resolution up to 1920*1080

●Scene Video Record: 4 channel, Compression algorithm of scene video: H264



Scanning images:



Color imaging, with intelligent alarm



Entry / Exit Gate Under Vehicle Surveillance System 0



Black & white imaging, at high resolution



Entry / Exit Gate Under Vehicle Surveillance System 1



Related product:



Mobile Under Vehicle Inspection Syetem SPV-3000



We have independently developed the safety inspection system for the bottom of the car, which can be illegally changed, concealed drugs, bombs and other prohibited items or personnel, and can also check the place where the human body is inconvenient.

In addition, this product has portable mobility to meet the needs of mobile temporary inspection.

The product is suitable for inspection of vehicle chassis in security inspection areas such as large activity temporary security and temporary checkpoints.



Entry / Exit Gate Under Vehicle Surveillance System 2



Security Electronic Equipment Co., Ltd



Our company established since 2003, and specialized in security equipments more than 10 years.
Main products:
  • X ray baggage scanner
  • Small Vehicle X-ray Scanner
  • Walk through metal detector
  • Hand Held Metal Detector
  • Under vehicle surveillance system
  • Explosives/drug detector
  • Dangerous Liquid scanner etc..

The best offer will be provided once get your model and quantity.
