| Tunnel Size: | 3.0m (W) * 3.0m (H) | Scanning Speed: | 720m/h |
|---|---|---|---|
| Max Vehicle Length: | 20 M | Level Of X-ray Source: | 200KV---320KV |
| X Ray Per Scanning: | <0.2 µSv/scan At 7km/h Vehicle Speed | Monitor: | 21 Inch Above |
| Highlight: | airport security baggage scanners,security body scanner |
||
Border Vehicle Inspection X Ray Security Scanner , Small Car Xray Scanner

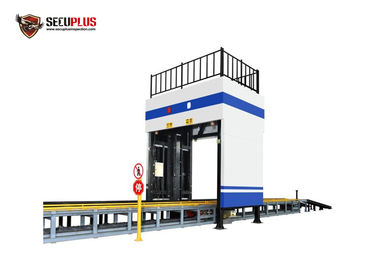

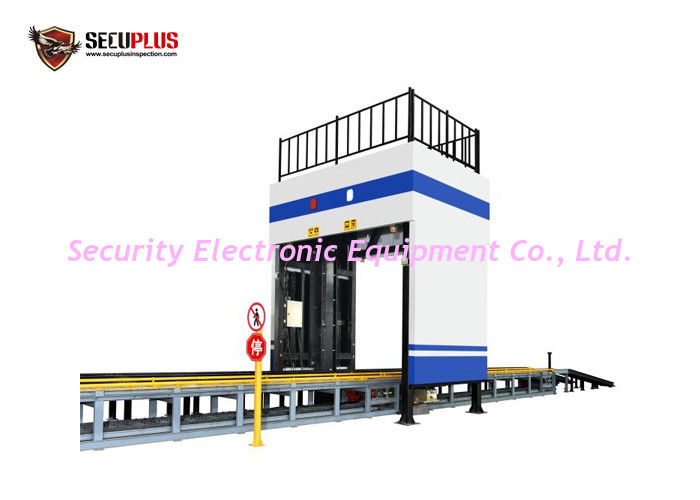

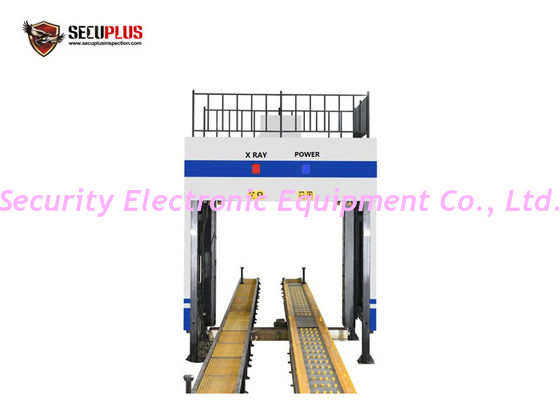

Model: SPV-280
SECU PLUS X ray vehicle inspection system is designed to inspect the inside of vehicles. It can quickly and accurately identify threats/ contraband/ weapons hidden in the vehicle. SPV-280 greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.
SPV-280 use advanced high energy, low radiation X-ray scanning technology, can quickly determine whether the vehicle is equipped with dangerous goods and contraband such as weapons, explosives, drugs, smuggled goods. The system uses the track conveyor structure design, during the inspection, driver and passengers needs to get off the car, the car will get inspected on the track conveyor automatically, the whole process will real time display on the monitor. This system suitable for small and medium-sized cargo vehicle, truck for rapid and through inspection, meanwhile maximally guarantee the safety of the personnel.
SPV-280 can be installed in the parking lot entrance, checkpoints, customs, border, important government agencies,large venues, high security premises for vehicle safety inspection. According to the customer requirements, on-site installation conditions, this system also can be integrated with the under vehicle inspection system to realize the comprehensive multi-angle vehicle safety inspection.
System highlights:
| Scanning tunnel size | 16.36m(L)*6.5m(W)*5.25m(H) |
| Scanning speed | 720m/h |
| Typical throughout | 50 vehicles per hour |
| Penetration | typical 40mm(200kv) |
| Wire resolution | 1.0mm |
| Maximum vehicle length | 20m |
Radiation safety:
X ray dose per inspection: <3.5μsv, speed below 7km/h
X ray leakage: <1.5μsv, complied with international IAEA standard
Film safety: ISO1600
X ray generator:
X ray beam: From top to down
X ray generator: 200kv (300kv optional)
Cooling / Duty Cycle: Oil Cooling /100%
System function:
Image process: Image enhancement; magnifying; brightening / darkening; image pullback / front pull; image storage
Others: Date / time display; vehicle count; user management; system working time; ray out timing; power-on self-test; image storage and retrieval; maintenance diagnosis
Operating environment:
Operation temperature/Humidity: 0ºC-45ºC/5%-95%(non-condensing)
Storage Temperature/Humidity: -40ºCto 70ºC/ 5%-95%(non-condensing)
Operation Power: 220VAC(±10%) 50±3HZ
Power consumption: Max. 2KVA
