Tunnel Size: | 600mm(W)*400mm(H) | Penetration: | 34mm Guarantee, 38mm Typical |
---|---|---|---|
Conveyor Height: | 680mm | Conveyor Load: | 170kgs |
Conveyor Speed: | 0.22m/s | Language: | Support Multi Language |
Warranty: | One Year | Delivery: | 3-5 Days |
High Light: | 0.3KW X Ray Baggage Scanner,220VAC X Ray Baggage Scanner,0.22m/s X Ray Scanner Machine |

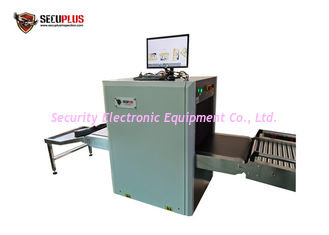

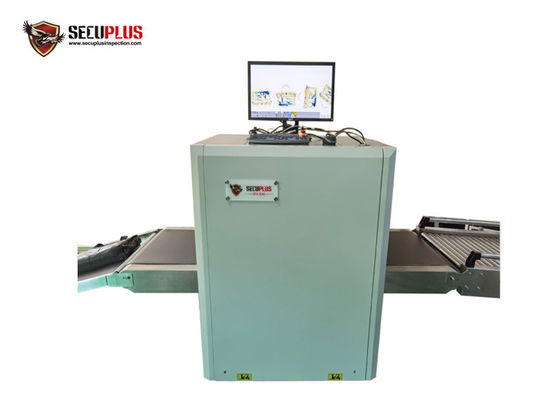

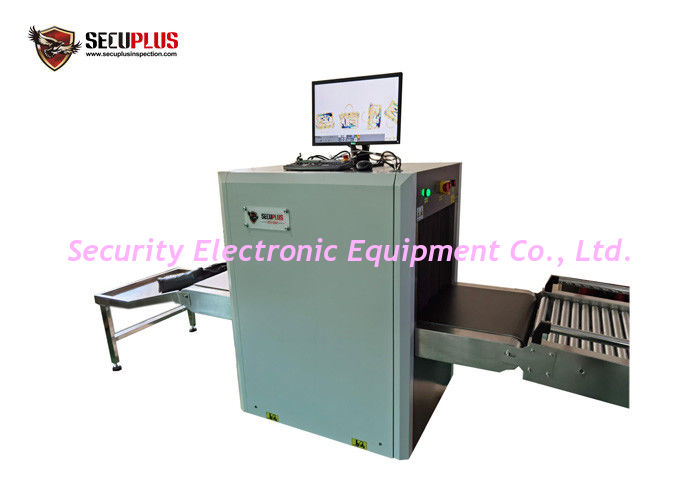

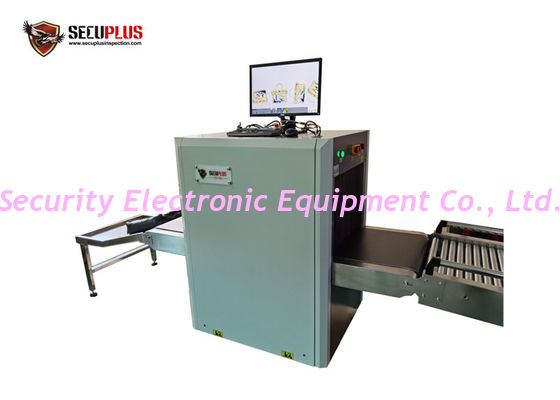

Middle Size X Ray Screening Baggage Scanner For Hotel , Embassy Use
Model: SPX-6040
SPX-6040 Multi-energy X-ray security baggage scanner system is ideal for use in mailrooms, railway stations, mass transit, highway system, conference centers and many other security sensitive areas, where inspection of baggage, mail, parcels, handbags, briefcases, packages is required. SPX-6040 Multi-energy x-ray screening system also enjoys great market share worldwide, which as a baggage scanner, is favored by most of our customers.
Technical characteristics
High Light
Installation Data:
Operation temperature/Humidity: | 0℃-45℃/20%-95%(non-condensing) |
Storage Temperature/Humidity: | -20℃-60℃/20%-95%(non-condensing) |
Operation Power: | 220VAC(±10%)50±3Hz |
Power Consumption: | 1.5KW (max), 0.3KW(working) |
Noise: | <58db |
Physical Specifications:
Dimensions: Length: | 2,190 mm Width: 878mm Height: 1,280mm |
Tunnel Size: | 600mm(W) x 400mm(H) |
Conveyor Speed: | 0.22m/s |
Approx Weight: | 700KG |
System Power: | 220 VAC ±10% /50Hz |
Steel Penetration: | 34mm guaranteed; 38mm typical |
Wire Resolution: | 38AWG guaranteed; 40 AWG typical |

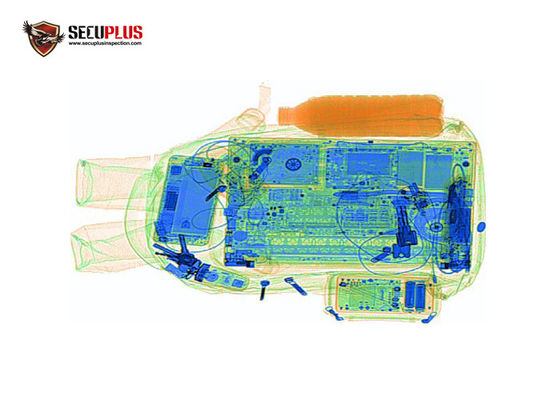

Image System:
Monitor: |
High Resolution Color, LCD Accord, 21.5 inch |
Image Processing: |
Edge enhancement, image strengthening, image lightening, |
Image Grey Level: |
4096 |
Image Max Resolution: |
1024 * 1280 pixel |
Image Processing: |
24bit for processing real time |
Image storage: |
Storage 60000 pictures in real time |
Zones & Zoom: |
1-9 Image regions, 2, 4, 8, 16 Times Enlarge, |
Application field
