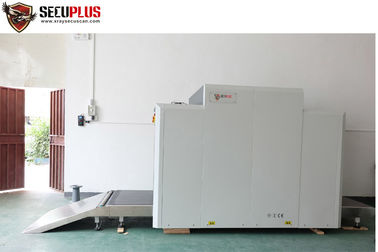

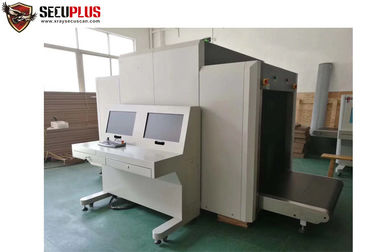

Airport Security Equipment X Ray Baggage and Luggage Inspection Machine Scanner SPX-100100
SECUPLUS x ray machine can help reduce false alarm rates, and allow customers to enhance security and potentially drive down operational costs.
SECUPLUS is designed for screening normal checked bagage.It can be widely used in airports, seaports, rail transport stations, critical infrastructures and big events, etc.
* Powerful image dealing ability;
* Accurate Z7,Z8,Z9 mark for explosive and narcotics;
* Windows 7 operation system;
* Automatic save scanned image;
* Friendly operation System;
* Reliable performance.
* Duel energy penetration system;
* TIP program;
* Clear and distinct image;
* Scanned imaged can zoom up to 64 times;
* Partly zoom up to 3 times;
* 13 kinds of image processing functions and 6 kinds of pseudo color;
Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points; Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc;
*Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.
General specs :
||40AWG(dia 0.0787mm wire)
||Level: dia1.0mm copper wire, Vertical: dia1.0mm copper wire
||32mm guarantee, 34mm typical
||21.5 inch color LCD monitor,high resolution: 1280*1024
|X Ray generator anode voltage
||160Kv(operating in 150KV)
||Oil Cooling /100%
|X ray dose per inspection
|X ray generator
||from top to bottom
||Black and white / color, anti-color, high energy penetration, super enhancement, histogram equalization, forced scanning, magnifying glass, image pull back / front pull, image storage
||Organic:orange;Inorganic:blue;Mixed and light metal:green
|Section and magnification
||Any area selection,1 -64 times magnification, support continuous amplification
|Image pull back
||Can store at least 100000 pcs image
|X ray leakage
||<0.5 μSv /h(at a distance of 5cm From external housing),meet all international and domestic health and safety standards
||guarantee ASA/ISO1600 Film
||F1,F2,F3 programmable key,high density alarm,TIP;date/time display,
baggage Count, User management, System work timing, Radiation timing,
self-inspection while power on, save and search image, automatically
maintenance and diagnosis system, image recognition training.
||Video surveillance system, LED prompt screen, bi-direction scan, voltage
stabilizer, UPS back up
||220VAC (+/-10%) 50+/-3HZ
||Less than 55db
Our Services :
1. Operation training program for end users
2. Free of factory training for engineer from agents to end user
3. Provide on-site trainning when customer requires
4. If quality problems happen in guarantee period, our company will maintain for free.
5. One year free spare parts and life time technical support
6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
7. If you are caught in some problems when using our products, welcome to contact us at any time.
Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support
