LCD Display Metal Detector Gate

I'm Online Chat Now

LCD Display Metal Detector Gate

LCD Display Metal Detector Gate
LCD Display Metal Detector Gate LCD Display Metal Detector Gate LCD Display Metal Detector Gate LCD Display Metal Detector Gate LCD Display Metal Detector Gate

Large Image :  LCD Display Metal Detector Gate

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPW-IIID
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: within 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets/month
Detailed Product Description
Electrical Current: AC100V~240V 50/60Hz Sensitivity: Adjustable From 0 To 300
Have In Stock: Yes Zones: 6/12/18 Optional
Work Environment: -20℃~+45℃ Power: 10W
High Light:

metal detectors at airports


door frame metal detector

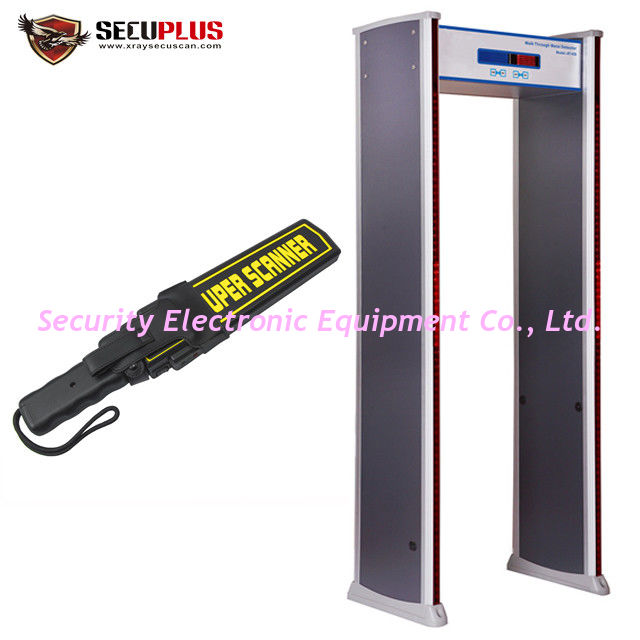

LCD display SPW-IIID Walk Through Metal Detector gate for Security Check




For indoor use only

Stable performance, 6-12-18 zones options

Extremely high sensitivity to find even tiny threats

Keyboard and remote control(both)

4 LED lights(front and back), LCD display


Technical specification:


Electrical current AC100V~240V 50/60Hz
Power 10W
Work environment -20℃~+45℃
Gross Weight 90kg
Outer frame 2220mm (h) x 820mm (w) X 522mm (d)
Inner frame 2000mm (h) X 700mm (w) X 522mm (d)




  • Operation way: keyboard and remote control (both)
  • LCD friendly operation interface for user
  • Four LED light bars on both door panels: gives alarm
  • corresponding to the height or human body.
  • 6/12/18 Pinpoint zones to precisely identify multiple target locations from head to toe.
  • Sensitivity adjustable from Level 0 to 300
  • High: Can detect a clip
  • Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
  • Shock proof to avoid false alarm
  • Sound and light alarm
  • Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms
  • Tamper-Proof: operate program is protected by password.
  • Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
  • Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
  • Harmless to pregnant woman and heart pacemaker
  • (Optional)Connect with computer, camera, turnstile, etc

Details for Walk Through Metal Detector SPW-IIID


LCD Display Metal Detector Gate 0


LCD Display Metal Detector Gate 1

Standards &Certificates


ISO9001 ●ISO14001 ●HSMS18001 ●CE

Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center

In accordance with: EN60950, WN50081-1, EN50082-1

Electric safety: EN60950

Anti-interference standard: EN50082-1
