Payment & Shipping Terms:
|Zones:||8/16/24/33/45 Optional||MBSU Backup Battery:||Optional|
|Have In Stock:||Yes||Outer Frame:||2210mm (h) X 880mm (w) X 600mm (d)|
|Inner Frame:||2010mm (h) X 760mm (w) X 600mm (d)||Gross Weight:||70kg|
|Display:||LCD Screen||76cm Width:||For Big Body Passagers|
metal detector door,
metal detectors at airports
Airport / Embassy Walk Through Safety Gate / Multi Zone Metal Detector Door
Fit for outdoor use:
Single, 8, 16, 24zones(33,45zones optional)
MBSU backup battery
DSP technology, automatically calibration
Weather-proof design( Aluminum Case)
|Electrical current||AC80V~250V 50/60Hz|
|Outer frame||2210mm (h) x 880mm (w) X 600mm (d)|
|Inner frame||2010mm (h) X 760mm (w) X 600mm (d)|
Input MBSU battery backup, in time power transfer
Modular structure easy for after sales service
Automatically adapt to the working environment
Auto scan environmental interference at site
LCD friendly operation interface for user
Operation way: remote control
Two or four LED light bars on both door panels: gives alarm corresponding to the height or human body.
Detect zone: single, 8,16,24zones(33,45zones optional)
Sensitivity adjustable from Level 0 to 300High: Can detect a clip
Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
Shock proof to avoid false alarm
Sound and light alarm
Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
Tamper-Proof: operate program is protected by password.
Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
Connect with computer, camera, turnstile(Optional)
Inner size as 76cm width(less false alarm for big body passagers)
Mix distance between two Walk-thru:0.3 meters at low sensitivity, 0.5meters at high sensitivity
Harmless to pregnant woman and heart pacemaker
ISO9001 ●ISO14001 ●HSMS18001 ●CE
Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center
In accordance with: EN60950, WN50081-1, EN50082-1
Electric safety: EN60950
Anti-interference standard: EN50082-1

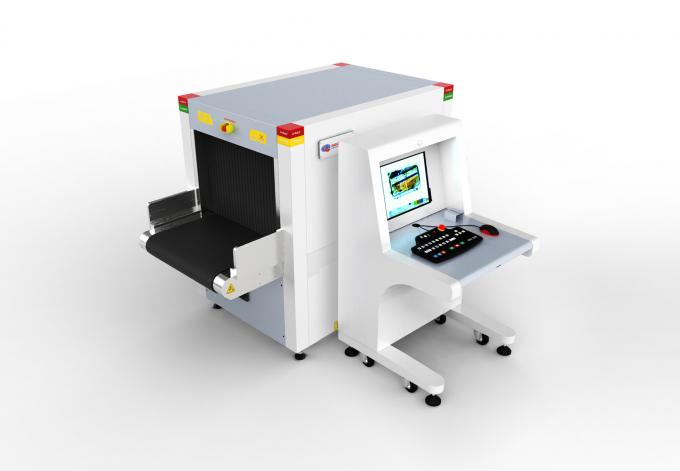

X-ray Baggage Scanner AT6550B
SECURITY ELECTRONIC EQUIPMENT CO.LTD.
Our core competencies is
X ray baggage scanner
X-ray Vehicle Scanner
Walk through metal detector
Hand Held Metal Detector
Under vehicle surveillance system
Dangerous Liquid scanner
By the way, if you have any other good idea, please keep us posted.Thanks.
Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support
Are you a factory or trading company?

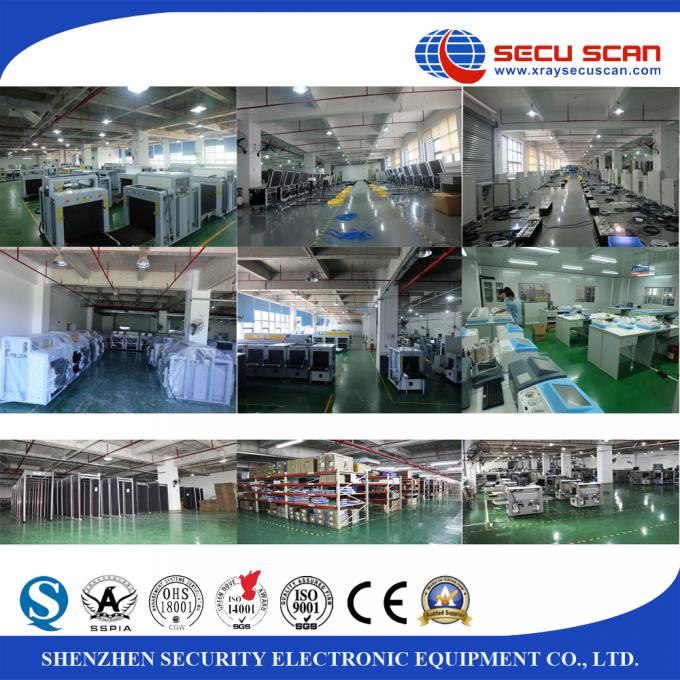

We are the biggest professional manufacturer of security equipment with almost 15 years experiences in Shenzhen china.
What is your MOQ?
Normally MOQ 1pcs and the price is negotiable for large quantity.
What is your leadtime?
3-7 working days after received the payment.
How does your factory do regarding quality control?
We control every production process in accordance with ISO9001, ISO14001, ISO18001 and CE certification, Radiation safety certification of FDA.
What is your after-sale service?
100% guarantee on our product; install instruction and video support; software debugging with remote control support; The whole unit 2 years free guarantee.
Contact Person: Bonny wang
