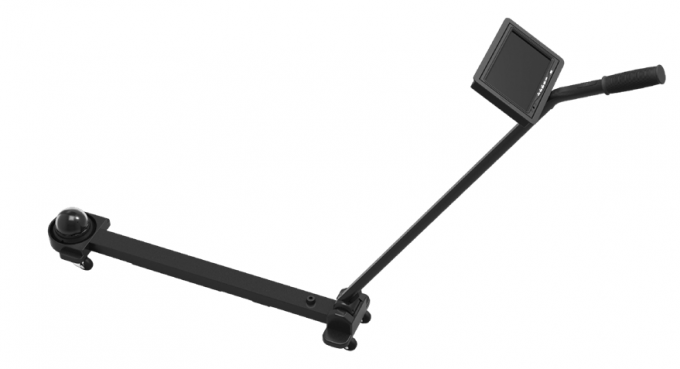

Custom Under Vehicle Surveillance System SPV-918 Vehicle Inspection System


Custom Use Under Vehicle Search Camera SPV-918 Vehicle Inspection System

SPV-918 Under Vehicle Search Camera is mainly used to check the bottom of the vehicle, determine whether
vehicle to hide suspicious explosives or dangerous, personnel, whether the overall structure of the bottom of the
vehicle is illegal change, also can be used for the bottom of the table, bed, file cabinets, security check high
platform, pipeline, pipeline, shaft, internal box inside, among the trees and other human inconvenience the
arrival position



Specifications:
Function: The camera can rotate left, right, rotate and stop automatically.
Angle: The maximum horizontal angle is 355 degrees, The minimum horizontal angle is 22.5 degrees.
Focal distance: 3.6mm
Focal length: Wide-angle
Definition: 600 line and 1/3SONYCCD infrared image sensor, high definition with infrared night vision
function
Power supply: SCM dedicated power charging and discharging technology to ensure the reliability of power
supply products.
Working environment temperature: -20℃ to +60℃
Working current: 400mA
Monitor: 7 inch Color
Display resolution: 800*480(RGB)
Power: 6800mW
Start-up time: ≤1.0s
Total Weight: 3.4Kg
Spreading length: 1780mm
Folding length: 1020mm
Volume: 1020*180*280mm
Packing: 1050*210*310mm
Battery capacity: 5200Ah
Working voltage: 9-12.6V
Continuous working time: no less than 12 hours

Features
The use of high-capacity lithium battery power supply, with long use time, no charge memory, and small
size and light. The company can be customized according to customer demand for larger capacity, dual
battery version of the car detector
With a 7 inch high resolution LCD display, the power consumption is less than 7W, and the system
working time is effectively prolonged without affecting the observation effect.
Micro wide-angle high definition camera, with infrared night vision capability, wider vision and clearer.
Excellent design concepts based on this system, using two folding structure, the maximum opening angle of
180 degrees, can be pushed into the 1800mm deep caves and can visit, electric control camera angle, the
body is made of high strength Aluminum Alloy stamping molding, high temperature paint, beautiful light.
The operation is extremely labor-saving.
Fitted with ergonomic luggage design, light and easy to carry, both portable and shoulder back.

Micro wide-angle high definition camera, with infrared night vision ability, wider vision, clearer


Excellent design concepts based on this system, using two folding structure, the maximum opening angle of 180 degrees, can be pushed into the 1800mm deep caves and can visit, electric control camera angle, the body is made of high strength Aluminum Alloy stamping molding, high temperature paint, beautiful light. The operation is extremely labor-saving

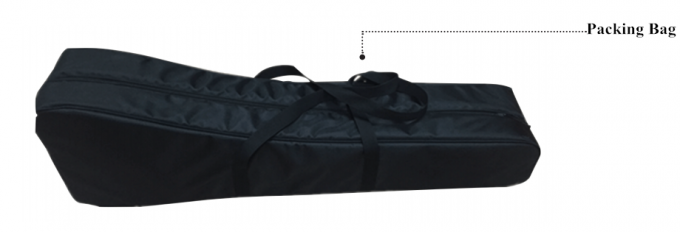

The package is made of ergonomically designed bags. It is light and easy to carry. It can be used both by hand and shoulder

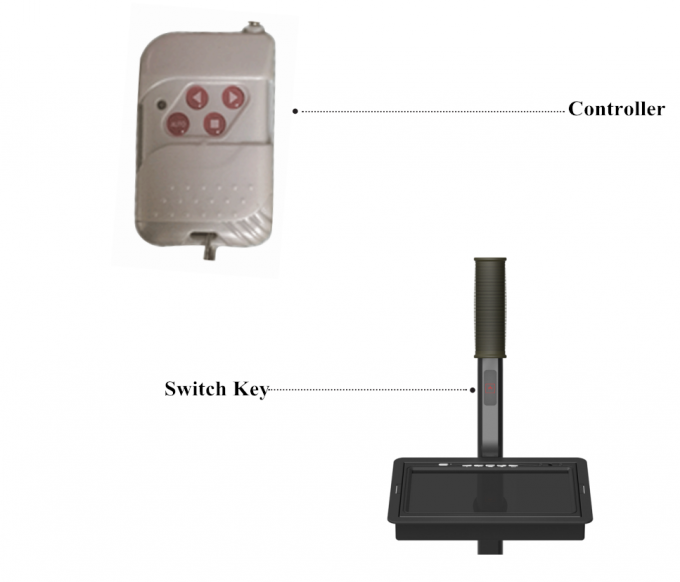

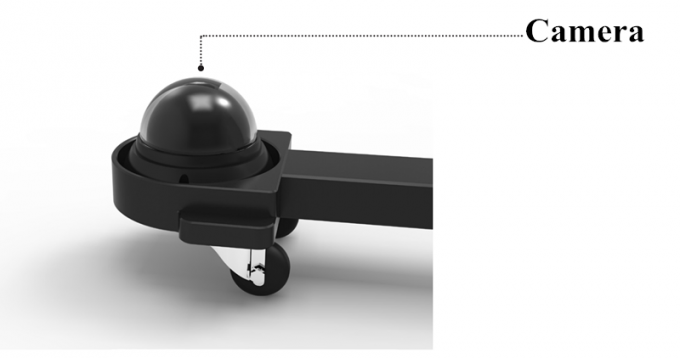

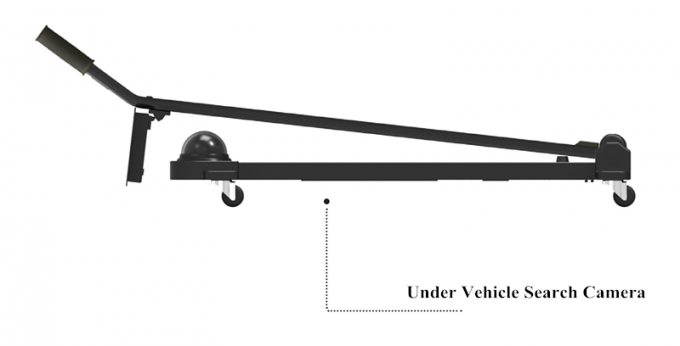

Detail Images

Application place:
This product is suitable for inspection of automobile, machinery, warehouse, schools, factories or other equipment to direct viewing area of the ideal examination mirror, it can be used for airport security, parking inspection, military area inspection, personal private car inspection. We have provided inspection glasses for many regional sports meetings, important meetings, local police stations, high-level hotels and large factories.

Service
All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free.
Additionally, our company provides technical support and fittings for life.
After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
If you are caught in some problems when using our products, welcome to contact us at any time.
