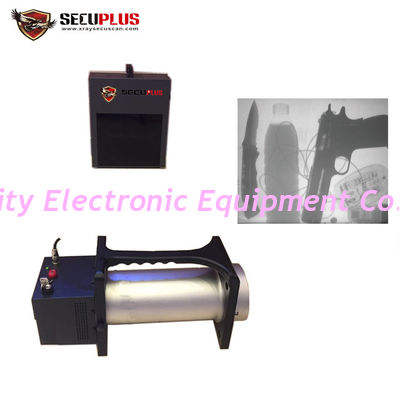

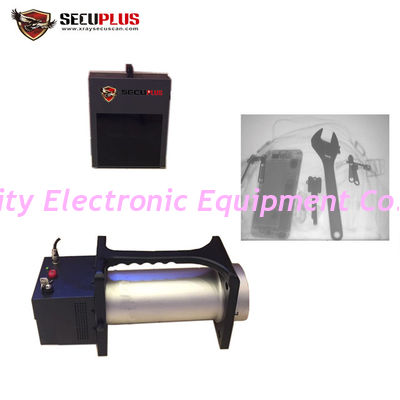

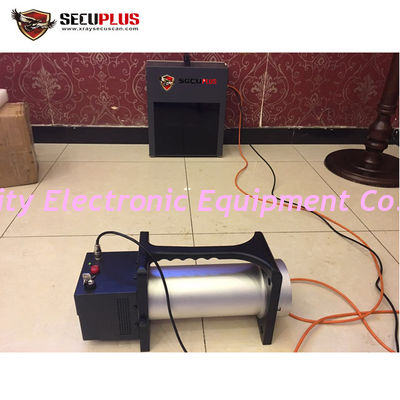

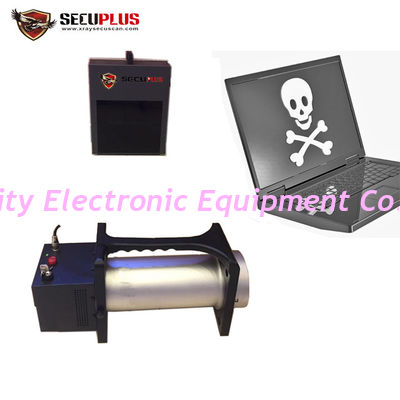

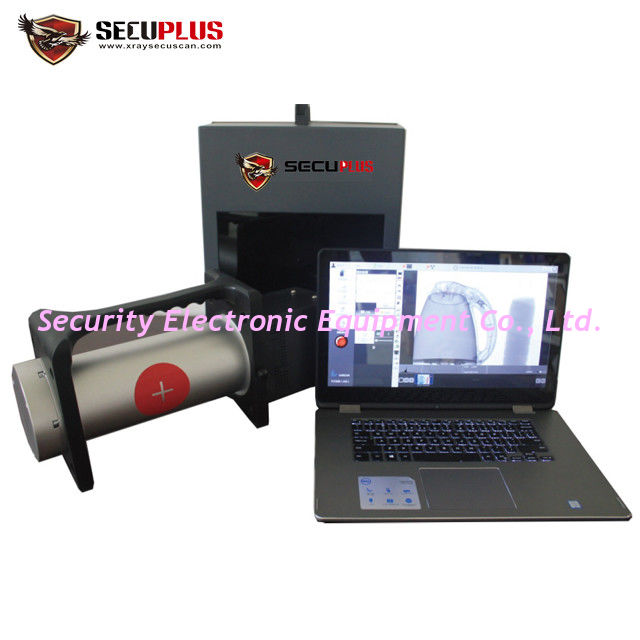

Portable X Ray Airport Baggage Scanning Equipment With Intelligent Software, hand held xray screening machine

Large Image : Portable X Ray Airport Baggage Scanning Equipment With Intelligent Software, hand held xray screening machine

Product Details:

Place of Origin:	China
Brand Name:	SECU PLUS
Certification:	CE ISO
Model Number:	SPX3025P

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Plywood Pallet
Delivery Time:	7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets/ month

Contact Now

Detailed Product Description

Penetration:	20mm Steel/140mm Aluminum	Sensor Type:	Industrial CCD Camera
Imaging Array:	1280*960 Resolution	Effective Imaging Area:	300(w)*250(h)mm
X Ray Generator Anode Voltage:	100KV(120kv Optional)	X Ray Source Current:	1mA
Storage Capacity:	At Least 10000 Images	Battery:	Lithium Ion Battery （Supports 500 Image Captures）
High Light:	security screening equipment , baggage x ray machine

100KV Portable X Ray Baggage Screening Equipment With Intelligent Software

Model: SPX-3025P

Usage:

Clear image and compact and lightweight design.
Using high-resolution digital imaging technology
Integrated industrial CCD camera
Advanced digital display system.
Applicable to security inspection, criminal investigation, smuggling and factory product quality testing.

Baisc specification:

Wire resolution	40AWG (dia 0.787mm copper)
Penetration	20mm steel/140mm aluminum
Image station	19201080 resolution, support multi-touch. Lenovo Flex3-14, touch screen 14.0 inches, HD LED 1366768 resolution, 360 degree flip, portable PC flat two in A; Windows 8 operating system; Intel Core i5-6200u 4GB memory; 500GB hard drive; NVIDIA Geforce 920M graphics card, weight 1.85kg, thin 19.5mm, black.
Sensor type	Industrial CCD camera
Imaging array	1280*960 resolution
Effective imaging area	304(w)*252(h)mm
data communication	Wired transmission
Image acquisition time	1-2s
X ray tube voltage	100kv
X ray source current	1mA
Image processing	Edge enhancement, super penetration, local enhancement, anti-color display, black and white display, pseudo-color display, suspicious explosives highlighted, suspicious drugs highlighted.
Area selection and enlargement	Unlimited continuous magnification
Storage capacity	At least 10000 images
Image list	100 History Pictures List
Material classification	Dual Energy color display, organic exclusion, inorganic exclusion.
System function	Date / time display, historical image preview, user management, image storage and retrieval, emergency stop operation, device status display.
Outline Dimensions And Weight	X ray generator: 482215178mm (LWG), 10kgs
Outline Dimensions And Weight	Detection board : 462366164mm (LWG), 10kgs
Operating temp.	-15℃～+50℃
Storage temp.	-40℃～+70℃
Battery	Rechargeable lithium ion battery (Supports 500 image captures)

Technical advantages:

Clear and vivid scanning image
Dimensional imaging, accurate display of dangerous goods location and internal structure
Dynamically capture images, support playback of dynamic video
Scanning images are clear, the resolution is high and the imaging speed is fast. Use CCD industrial camera;
High capacity battery life, meet the field operations
Rich image processing functions: Support arbitrary selection, continuous amplification, multi-touch gestures to help security personnel faster and more accurate identification of dangerous goods
High capacity battery endurance to meet the field operation
Security upgrades: provides X-ray delay and safety protection to ensure operator safety
Modular design, easy maintenance

Our service:

Operation training program for end users
Free of factory training for engineer from agents to end user
Provide on-site trainning when customer requires
If quality problems happen in guarantee period, our company will maintain for free.
One year free spare parts and life time technical support
After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
If you are caught in some problems when using our products, welcome to contact us at any time.
