200 kv Vehicle Car X Ray Security Scanner For Contraband Inspection Safety Check

China 200 kv Vehicle Car X Ray Security Scanner For Contraband Inspection Safety Check supplier
200 kv Vehicle Car X Ray Security Scanner For Contraband Inspection Safety Check supplier 200 kv Vehicle Car X Ray Security Scanner For Contraband Inspection Safety Check supplier 200 kv Vehicle Car X Ray Security Scanner For Contraband Inspection Safety Check supplier

Large Image :  200 kv Vehicle Car X Ray Security Scanner For Contraband Inspection Safety Check

Product Details:

Place of Origin: China
Brand Name: SECU SCAN
Certification: CE, ISO
Model Number: AT2900

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden packaging
Delivery Time: 90 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 unit/ year
Contact Now
Detailed Product Description
Tunnel Size: 3m*3m Application: Checkpoints, Customs, Border, Etc
Typical Throughput:: 150 Pcs Vehicle/h Installation: Will Send Engineer To Assist
Warranty: One Year Vehicle Type: Car, Medium Vans
Training: Provide Training At The Local Usage: Car Safety Check

200kv x ray vehicle scanner, car scanner for contraband inspection
Model: AT2900

System Hightlights:

Drive-thru technology
Occupied vehicle scanning capability: passengers can stay in their cars during scanning process,
driving them under their own power through the inspection portal.
Small footprint
The deployment of the AT2900 requires a relatively small ground surface without special
requirements for additional infrastructure.
High penetration
The AT2900 produces high-quality X-ray images of inspected objects through 20 mm of steel at car
speeds of 10 km/h.
High quality X-ray images
To ensure proper detect ability of the concealed objects, the AT2900 produces images with the 2% of
the contrast sensitivity and 0.8mm copper wire detection capability.
Dual energy imaging
The AT2900 has an automatic color coding for materials separation (3 colors) feature allowing
distinguishing between organic, non-organic and metal materials. This feature helps the operator to
detect dangerous object from the various materials.
Radiation safety
The AT2900 ensures the low dose for driver and passenger operation (complies with ANSI 43.17
standard) as well as protection of the operator. The inspection portal is equipped with the video
surveillance system to avoid the inspection of the passer-by's.
Automatic recognition of the license plate number (option)
With the additional camera (option) the AT2900 is able to identify and store the license plate number
of each scanned vehicle.
Under video vehicle surveillance (option)
Upon request, the AT2900 can be provided with the video surveillance system for under-vehicle inspection


Basic Spec.:

Equipment size4.8(L) * 4.9(W) * 3.75(H) M
Installation area ideally7(L)* 5(W) * 4.5(H)M
Tunnel size3(L)* 8(H) m
Scanning Speed5-10 km/h
Typical throughput150pcs vehicles / hour
Max. Vehicle length20m and extendable
Penetration typicalTypical 45mm steel, application 20mm steel
Max. Dose to working area<0.2 μSv/h
Dose rate outsidepublic area<0.5μSv, compliant with IAEA standard
Film SafetyGuarantee ASA/ISO1600 Film
Power consumptionMax. 2KVA
Operator 's workstationPC-based workstation with the 24" LCD display


X-ray Generator (single)

X ray Accelerator200kv, from one side
Beam shapeVertical fan-shaped beam
Automomous power supply (reserve)Autonomous diesel generator with diesel oil reserve for 24 hours continuous operation (optional)


Radiation Safety System

X ray dose per inspection<5.0μsv
X ray leakage<0.5μsv, complied with international IAEA standard



Software


1 password-protected login of the operator
2 Automatic real-time display of the inspected vehicle
3 Brightness and contrast adjustment of acquired image
4 High-density and low-density objects display feature
5 Zoom in and pan functions(up to 8x)
6 Block/whit



Operating Environment

Operation temperature/Humidity-15℃-55℃ / 5%-95%(non-condensing)
Storage Temperature/Humidity-40℃to 70℃ / 5%-95%(non-condensing)
Operation Power220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS15mins, 30mins, 60mins etc, optional

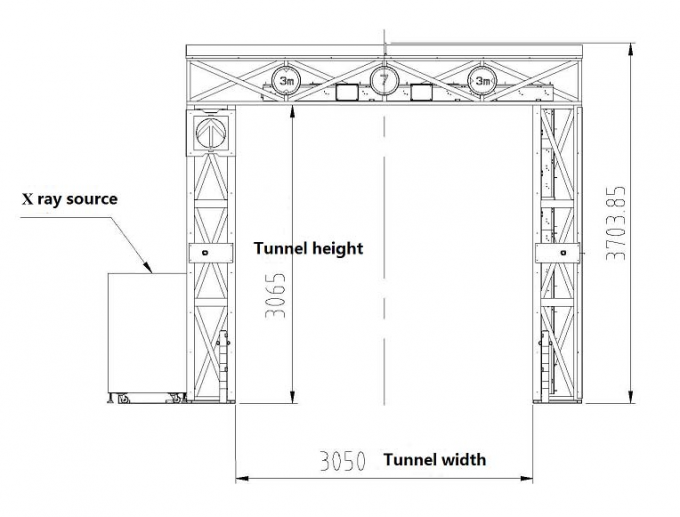

Outline drawing:

200 kv Vehicle Car X Ray Security Scanner For Contraband Inspection Safety Check
200 kv Vehicle Car X Ray Security Scanner For Contraband Inspection Safety Check
