Home ProductsUnder Vehicle Surveillance System

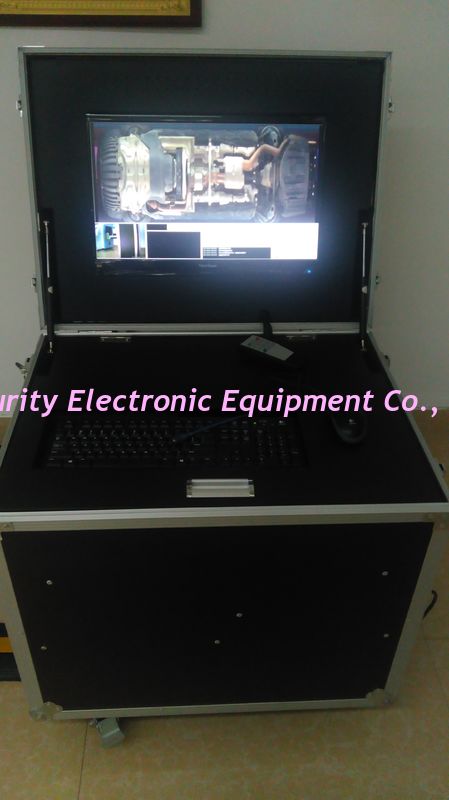

5000 * 2048 Pixels Under Vehicle Surveillance System AT3000 Portable UVSS

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

5000 * 2048 Pixels Under Vehicle Surveillance System AT3000 Portable UVSS

5000 * 2048 Pixels Under Vehicle Surveillance System AT3000 Portable UVSS
5000 * 2048 Pixels Under Vehicle Surveillance System AT3000 Portable UVSS

Large Image :  5000 * 2048 Pixels Under Vehicle Surveillance System AT3000 Portable UVSS

Product Details:
Place of Origin: China
Brand Name: V-SCAN
Certification: ISO CE
Model Number: AT3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywoof Pallet
Delivery Time: within 10 working days
Payment Terms: T/T, Western Union L/C
Supply Ability: 500 sets per month
Detailed Product Description
Vertical Resolution Of The Image: 5000*2048 Pixels Check The Width Viewing Angle: < 4 Meters
Auxiliary Light: 100W Weight Capacity: <20T
Water-proof Grade: Ip68 Memory: 2G( Optional 4G)
High Light:

under vehicle monintor machine

,

car surveillance system

Under Vehicle Surveillance System AT3000 portable UVSS manufacture



Features:

  1.  Automatic digital line scan camera, with high-resolution and clarity of the image.
  2.  The complete image of under vehicle scanning, without any omissions,
  3.  and the image is clear, complete, no distortion, can be clearly observed that
  4.  the object is not less than 2mm in diameter.
  5.  Preparation of inspection processes to meet a variety of on-site needs.
  6.  Multiple scene image monitoring, recording function.
  7.  Multi-language user interface design.
  8.  Strong scalability to easily achieve a variety of system linkage control.
  9.  (Optional)ALPR(Automatic Licence Plate Recognition)
  10.  Optional Multiple devices networked control functions



Technical parameters:

Vertical resolution of the image 5000*2048 pixels
Check the width viewing angle < 4 meters
Speed of vehicle

< 30km/h with ALPR(Automatic Licence Plate Recognition)

< 70km/h without ALPR(Automatic Licence Plate Recognition)

Effective Field of View(FOV) less than 170°
Auxiliary light 100W
Weight capacity <20T
  1. Water-proof grade-------- Ip68
  2. Scanning device weight---------------24KG
  3. Scanning device volume---------------450mm×400mm×88mm
  4. Communication interface---------------RS232/RS422
  5. Operating Temperature------------ -10℃ to 55℃
  6. Storage temperature------------------- -40℃ to +75℃
  7. Operating voltage------------------ 110-240V AC, 50-60HZ









Company Profile

Our company established since 2003, and specialized in security equipments more than 10 years.

Our core competencies is
X ray baggage scanner
Walk through metal detector
Hand Held Metal Detector
Under vehicle surveillance system
Explosives/drug detector
Dangerous Liquid scanner
Turnstiles

By the way, if you have any other good idea, please keep us posted.Thanks.


Our Service
All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free.
Additionally, our company provides technical support and fittings for life.
After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
If you are caught in some problems when using our products, welcome to contact us at any time.
