Payment & Shipping Terms:
|Explosive Detector Sensitivity:||Ng-Pg||Explosive Detector Detecting Range:||TNT, Petn, Ng, Rdx, Tetry, Etc|
|Have In Stock:||Yes||Identify Speed:||< 8 Seconds|
|Technic:||PIMS Technology||Display:||TFT Color Touch Screen|
|Alarm:||Sound/Light||Sensitivity Limit:||1 Nanogram TNT|

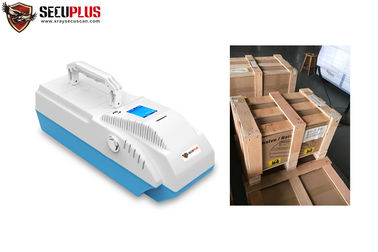

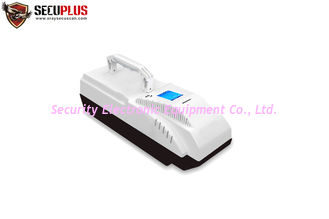

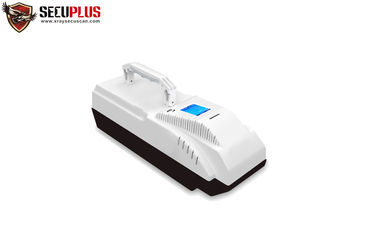

Airport use portable Explosives Detector HD300 with CE ISO approval
SCAN ETD can detect black powder and all explosives which are prohibited by ICAO. We adopt PIMS technology (Photoionization Ion Mobility Spectrometry), which is free of radiation hazards.
Sourc: Vacuum Ultra Violet ionization source.
Explosives indentify: A variety of military, civilian, and homemade explosives: Black Powder, AN, TNT, DNT, Tetry, PETN, Gun Power, NG, RDX, fireworks, C4 etc.
Sampling: Dipstick tracking trace particles, and absorber
Databases: Open to user, can add new type explosive
|Alarm||Sound / light|
|Sensitivity||Mix: Nanogram explosives, even pictogram sulfur|
|Sensitivity limit||1 Nanogram TNT|
|Identify speed||< 8 seconds|
|Decontamination time||< 6 seconds|
|Warm-up time||< 20 minutes|
|False alarm rate||≤ 1%|
|Display||TFT color touch screen|
Operating temperature: -10° C ~ 55° C
Net weight: <5.5KG
Highlight Advantages of handheld explosive detector:
1. High sensitivity: Can detect at least 100 Nanogram black powder, including fireworks and civil homemade explosives
2. High speed Indentify
3. VUV lamp soft ionization technique, non-radioactive
4. Advanced migration tube design ensures high resolution;
5. Automatic cleaning system can prevent inject pollution.
6. Renewable gas purification system
7. Database open to user, can add new type explosive
8. TFT color touch screen
9. Dipstick can be reused
10. Support network control and transfer
11. Unlimited Storage, USB port to output data.
Application of portable explosive detector:
Airport, Train Station, Coach Station, etc.
|Hand Held Explosive Detector||HD300||Stable performance and easy carry|
|Explosive Detector||HD600||Stable performance with10 inch TFT color touch screen|
|Hand Held Liquid Scanner||AT1500||Stable performance and easy carry|
|Dangerous Liquid Scanner||AT1000||Stable performance and can detect the bottom of the bottle|

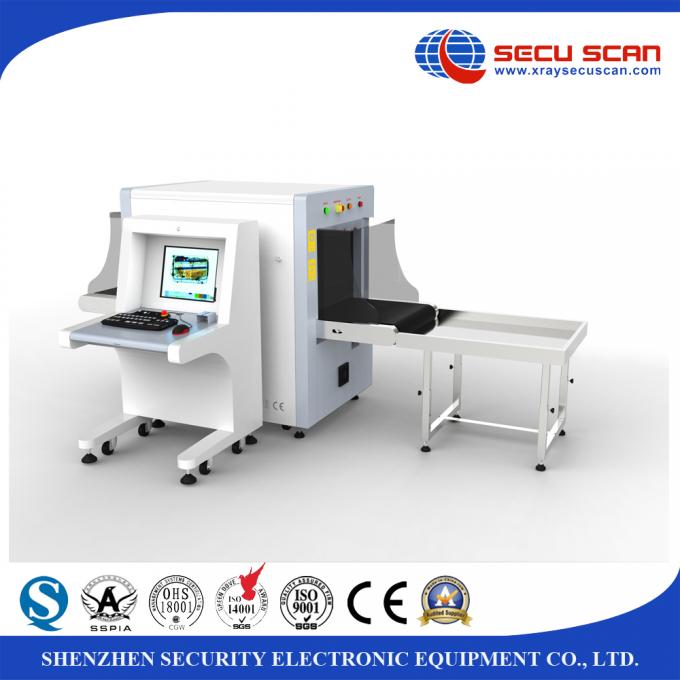

Tunnel Size: 650mm×500mm
Conveyor Speed: 0.22m/s
Conveyor height: 695mm
Conveyor Max Load: 170kg
X ray Dose per inspection <1.14μSv
Wire Resolution: 40 AWG typical
Spatial resolution Level: dia1.0mm,Vertical: dia1.0mm
Penetration: 30 mm steel guarantee, 32mm steel typical
SEE(Security Electronic Equipment Co., Limited), is a high-tech company integrating R&D, manufacturing, engineering,training and services. We run SECU SCAN as the top brand. As a reliable supplier, we continue produce good quality products, give professional technical support.
SEE gradually establishes a very comprehensive product range covering
X-ray Baggage Scanner with different tunnel size,
Walk through Metal Detector,
Hand-held Metal Detector,
Dangerous Liquid Scanner,
Explosive Trace Detector,
Under Vehicle System and etc.
SEE security systems have been used in different countries and regions in airports, seaports, customs, railway stations, long-distance bus stations, jail houses, courts yard, and many other security-related applications.
With ISO9001 management system, SEE always keeps running with high efficiency by balancing development on her product R&D, manufacturing, quality control and service according to ISO strict international standard requirements. With global marketing strategy, SEE provides innovative and dependable security solutions to our global customers and makes every effort to continually exceed our customers' expectations.
Life is precious SEE puts its efforts on public security solution
Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support
Explosives identify: Black Powder, AN, TNT, DNT, Tetry, PETN, Gun Power, NG, RDX, fireworks, C4 etc
Drug identify: Drug, cocaine,opiates(Heroine , and Morphine),cannabis, (Marijuana and Hashish), and amphetamine-type stimulants, (amphetamine, ecstasy & methamphetamine)
Net weight: less than 3kg
Identify speed: <5 sec.
