Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO9001, FDA, AERB, FCC, RoHS
Model Number: SPX-100100T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1-100,000/ set
Packaging Details: Wooden box
Delivery Time: 14 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Tunnel Size: 1000 *1000 Mm Conveyor Load: 200kg
Steel Penetration: 38 Mm Image: 3D Images
Image Storage: 100,000 Images Warranty: 2 Years
Beam Direction: From Side And Bottom, Main Frame: Stainless Steel
Display: 17" Monitors Conveyor Belt Speed: 0.5m/s

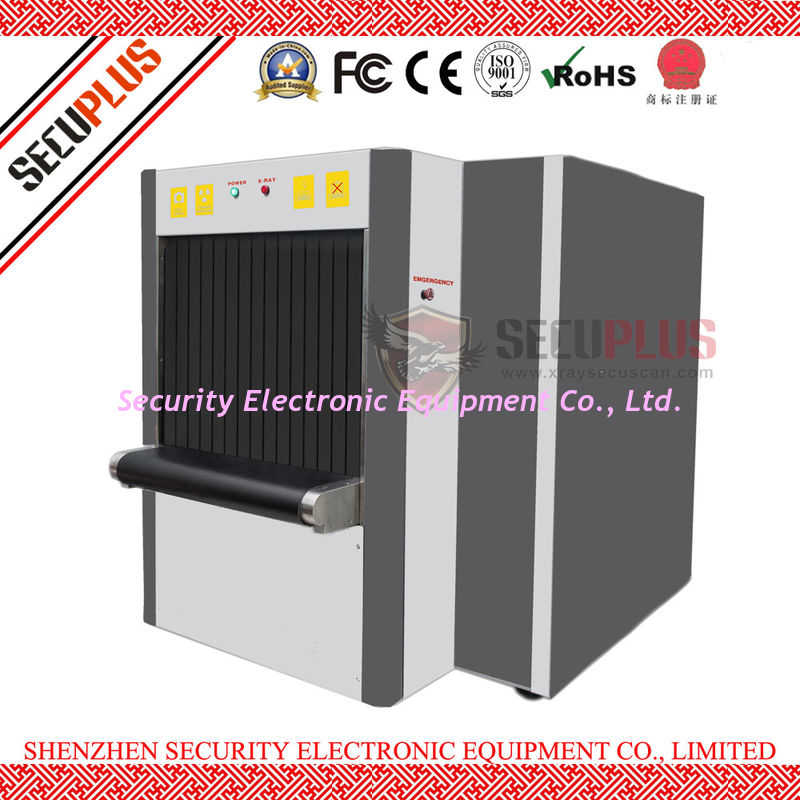

3d Images X Ray Security Scanner Stainless Steel X Ray Inspection System



SPX-100100T ----delivers an unbeatable combination of innovative technology, superior threat detection,

reliable performance and cost efficiency.





Product Highlights :



• Ultra high scan speed, scan 2000 to 2300 bags / hour

• 0.50 meters per second belt speed

• Large rectangular tunnel for 100cm x 80cm

• Best-in-class imaging and detection

• seamless integration with an airport’s baggage handling system.

• No moving parts in the gantry delivers superior mean time between failure (MTBF)



Advanced Design :


SPX-100100T was designed to the highest level of detection performance. The system utilizes 3 fixed X-ray

 sources and multiple detector arrays to create high resolution 3 directions images. This revolutionary

 design provides the end user with the operational benefits of a traditional automated checked baggage

 screening system and with the detection performance previously available.

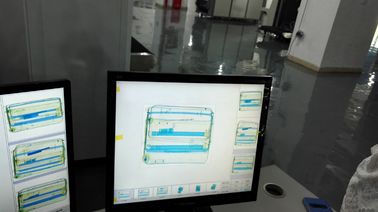

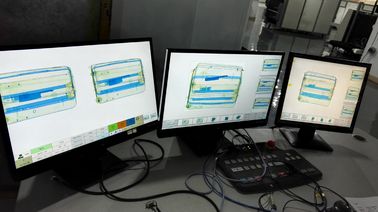

Images of suspect bags are displayed on our latest viewing station where operators have high resolution

3 direction views to evaluate.


Optimized BHS Integration :


    SPX-100100T was designed to insure seamless integration with an airport’s baggage handling system.

The AT10080T dieback tolerant technology allows bags to be stopped in the scan plane for short periods

 and still allow the explosive detection  analysis to proceed without impact. This increases the effective

 throughput and reduces costly rescreening of these bags.



●  Use 3 generators to penetrate packages from different direction: Left to right, right to left and bottom

 to up. Based on these perfect design, our device can present 3 different view of one scanning, from 3

different directions.



●  SPX-100100T, completely solve the security risks of traditional X Baggage Scanner. It’s impossible to

cheat the device to hide any dangerous articles.

●  More powerfully software calculate, can give much more accurate alarm to explosives and drugs.

●  More powerfully to distinguish the slight difference of organic articles,

 for example : 1) can distinguish water and gasoline.

       2) Can present better shape of articles

       3) Can find threats beneath the laptop.





General Specification:



●Tunnel Size: 1000(W)*1000(H)mm

● Conveyor Speed: 0.50m/s

●Conveyor height :800mm

● Conveyor Max Load: 200kg (75kg/m²)

● Dose per Inspection<14μSv per inspection

● Wire Resolution:40AWG

● Spatial resolution: Level: dia1.3mm, Vertical:dia1.0mm

● Penetrate Resolution: 38AWG

● Penetration: 40mm Steel

● Film Safety: Guarantee ISO1600 Film(33 DIN)

● X-ray Leakage < 1.7μSv /h at the distance of 5 cm (2” )from external housing

● Operation Cycle: 100%. [start –up time about1-2 for boot procedure and self-tests]

● Throughput : Typically 2000 to 2300items/h

● Data recording mediums : No damage to computer memories, such as cassettes, floppy disks or

hard disks due to x-rays.

● X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 16bit Deep

● Monitor: High Resolution Color, LCD Accord, 17inch



X-ray Generator:



l* Generate quantity: 3 pieces of generators in difference directions.

  * Beam direction : vertical and 2 horizontal

l* Anode Voltage: 160Kv

l* Anode power: 0.4 to 1.2mA

l* Cooling / Duty Cycle: Oil Cooling /100



Installation Data:



l* Operation temperature/Humidity: 0℃ to4 0℃/10%-90%(non-condensing)

l* Storage Temperature/Humidity: -20℃ to 60℃/10%-90%(non-condensing)

l* Operation Power: 220VAC(±10%)50±3Hz

l* Power Consumption: <3KVA

l* Noise: <58db

l* Input / output extension Roller



Software System



* Image Processing: B/W, color, Edge enhancement, image strengthening, image lightening,,

 reducing darkening, image returning, image retrieval.

* Threat Image Projection software : Screener assist Threat Detection System.

* Remote workstations (optional)

* Supervisor workstation (optional)

* Automated explosive threat detection system

* Image Grey Level: 65536

* Image Max Resolution: 1024 * 1280 pixel

* Image Processing: 24bit for processing real time

* Image storage: Storage 100,000 pictures in real time

* Zoom: 64 Times Enlarge, Whole screen continuous observation

* Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green

* Automatic explosive detection system, by means of high performance parallel computing
