Product Details:

Place of Origin: China
Brand Name: SECU SCAN
Certification: CE,ISO
Model Number: AT300P

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton Package, Package size:948x666x525mm, G.W:50KG
Delivery Time: 7-14 work days
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Tunnel Size: 2051x710x500mm(Width Customized Range 700~1500mm) Fold Size: 889x606x484mm
Detecting Zone: 8, 16, 24 Zones Color: Black, Sliver Grey, Camouflage
Gross Weight: 50KG Work Environment: -20℃~+85℃
Vertical Outside Size: 2250x850x500mm Power Supply: Equip Polymer Batteries, Last Time Can Be 8、16、24、48、72hours And Can Be Selected In Optional
Radiation Safety: Harmless To Pregnant Woman And Heart Pacemaker Warranty: One Year

High Sensitive Portable Walk Through Metal Detector For Security Check



Technical Data:

  • Detecting target: Contraband goods, more magnet metals
  • Vertical outside size:2250x850x500mm
  • Tunnel Size:2051x710x500mm(Width customized range 700~1500mm)
  • Fold size:889x606x484mm
  • Package size:948x666x525mm
  • Working humidity:99%,no condensing
  • Working temperature:-40℃~85℃
  • Power supply method:Equip polymer batteries, last time can be 8,16,24,48,72hours and can be selected in optional
  • Output:DC 12V/5A 12W
  • Input:AC 110V~240V/50HZ~60HZ
  • Weight:N.W 42KG, G.W: 50KG
  • Operating temperature:-40℃ to +85℃
  • Relative Humidity:99%,non-condensing
  • IP Grade:IP67
  • External Dimension:2250*850*500mm
  • Passage Dimension:2051*710*500mm
  • Fold Demension:889*606*484mm
  • Packing Dimension:1000*700*540mm
  • Net Weight:33kg
  • Gross weight:40kg



Advanced Technology:

  • Multi-detecting zones technology: 8,16,24 detecting zones,it can be shifted and selected intelligent(more zones update technology can be supported) .
  • Working frequency: Super range working frequency(0-120),and working environment adaptive function
  • Sensitivity of detecting zone: Sensitivity of single detecting
  • zone can reach 355 grade(adjustable).
  • Mobile connect technology: Can be controlled by mobile APP.
  • Super housing protection technology: IP67 excellent protection(selectivity)
  • Self-adaption diagnosis system: When turn on, system will detect adaptively hardware working status.

Product advantage:

  • Adjustment system: System can adjust detecting standard
  • Start and stop technology: Red infrared device own automatic start and stop technology. It can adds
  • 100 times lifespan.
  • Sensitivity of each zone can be adjusted(own adjustment technology)
  • Detecting zones quantity can be selected by yourself
  • Sound and light alarm. Alarm tones and time can be arbitrarily adjusted.
  • Enquiry function: System provided actual time information enquiry function
  • Detecting capacity:Can detect more than one hundred persons in one minute

General Introduction:

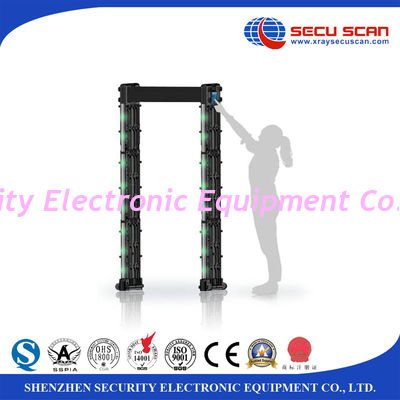

AT300P as one portable and high performance metal detector can be movable, waterproof and portable. It can be taken to any where by one person and can be installed in five minutes to work. This model can be used in gym, conference hall, school. And it be operated easily, no need more training. AT300P obtained surface patent and software system registration property. This model detect metals by electromagnet and alarmed by sound and light if metals overload. It contains CPU, generator, signal receiver, infrared ray sensor. Beautiful surface, strong detecting, more detecting zones, internet remote control management system and waterproof. It can be disassembly parts for better taken and transferred. It’s leader of portable walk through metal detector in the market.



Optional Function:



In order to satisfy customers’ requirements, this model kept more humanity function for customer’s select. Like: measure body temperature system, visual conversational system, passenger detecting video system, face recognition system and etc. More function can be developed according to requirements.
