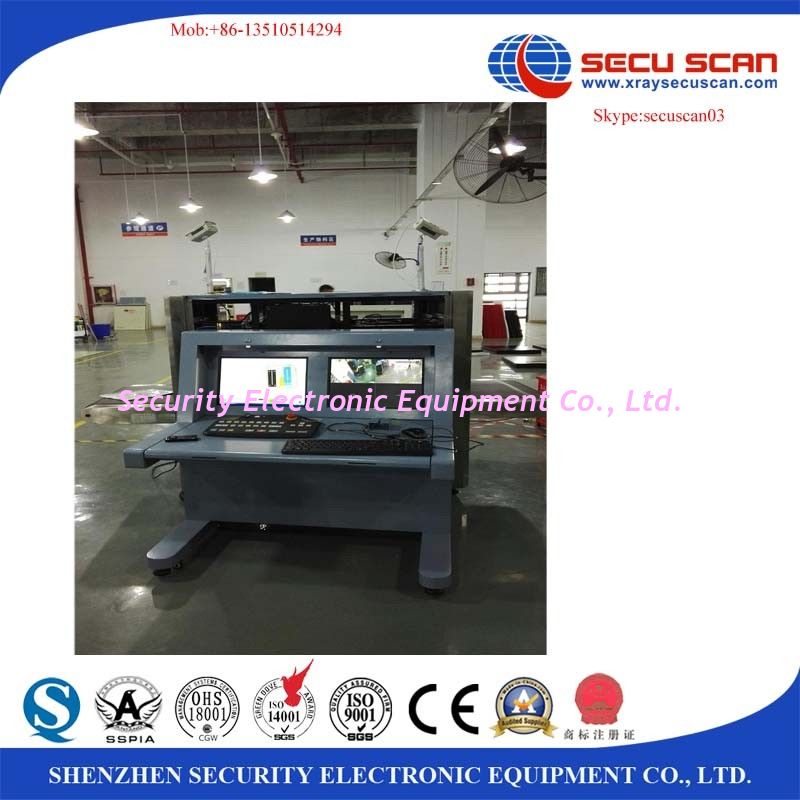

Baggage Screening machine / equipment with CCTV monitor system

China Baggage Screening machine / equipment with CCTV monitor system supplier
Baggage Screening machine / equipment with CCTV monitor system supplier Baggage Screening machine / equipment with CCTV monitor system supplier Baggage Screening machine / equipment with CCTV monitor system supplier Baggage Screening machine / equipment with CCTV monitor system supplier

Large Image :  Baggage Screening machine / equipment with CCTV monitor system

Product Details:

Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO9001, India-AERB, US.FDA
Model Number: AT6550B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1000~15,000 per set
Packaging Details: Wooden Packing
Delivery Time: 7 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Contact Now
Detailed Product Description
Tunnel Size: 600*500 Mm Conveyor Load: 170kg
Belt Speed: 0.2m/s Software: English, Russian, French, Spanish
Computer System: Windows XP Or 7 CPU: Core I5
Detector Board: UK Import Technical Traning: 7 Days
Installation: Local Engineer Support Warranty: 18 Months

Baggage Screening machine / equipment with CCTV monitor system



 Quick Details



  General Specification:



  Tunnel Size:   650(W)*500(H)mm
  Conveyor Speed:    0.22m/s
  Conveyor Max Load:     170kg
  Wire Resolution:    40AWG
  Spatial resolution:  horizontal:1.3 or 1.0mm,  vertical: 1.3 or 1.0mm
  Penetration:    30 to 40mm Steel
 Film Safety:    Guarantee ISO1600 Film
  X-ray Leakage:   <1 μSv/h (at a distance of 5cm from external housing)
  Pass rate:   720 bags per hour



 Installation Data:



 Operation temperature/Humidity:

  0℃-45℃/20%-95%(non-condensing)
 Storage Temperature/Humidity:   -20℃-60℃/20%-95%(non-condensing)
 Operation Power:   187~240VAC, 50/60Hz
 Power Consumption:    1.0 KW (max), 0.7KW(working)
  Noise:   <58db



 X-ray Generator:



  Beam direction: Diagonal    Diagonal

  Generate angle:

  80 degree
  Anode Voltage:   140Kv or (100Kv to 160Kv adjustable)
  Anode power:    0.4 to 0.5mA
   Cooling / Duty Cycle:    Oil Cooling /100%





Image System



  X-ray Sensor:    L-Shaped Photodiode Array  (multi-energetic) , 12bit Deep
  Monitor: High Resolution Color, LCD Accord, 17 inch (19 inch optional)
Image processing:

 Edge enhancement, image strengthening, image lightening

, reducing darkening, image returning,image, retrieval.

 Image Grey Level:   4096
Image Processing:   24bit for processing real time
Image storage:   Storage 100,000 pictures in real time
 Zoom:   max 64 Times Enlarge, Whole screen continuous observation



 Assist of detecting organic and inorganic items such as
weapons, explosives and narcotics using different colour show



Company Information:



We are the factory of security equipment with 8 years experience in China,

which specialized on

  • X Ray Baggage Inspection Scanner ,
  • Under Vehicle Inspection System,
  • Hand Held Metal Detector,
  • Walk Through Metal Detector ,
  • bottle liquid scanner,
  • Explosive Trace Detctor

AT6550 wooden box packing:



Baggage Screening machine / equipment with CCTV monitor system
