Luggage x ray Scanning Machine scanning Laptop Bags , baggage inspection
General Specification :
| Tunnel Size:|| 500(W)*300(H)mm|
|Conveyor Speed:|| 0.22m/s|
| Conveyor Max Load:||150kg|
| Conveyor Height: ||663mm |
|Wire Resolution: ||38AWG standard, 40AWG typical |
|Steel Penetration: ||30mm guarantee, 32mm typical|
| Film Safety:|| Guarantee ISO1600 Film|
| X-ray Leakage:||<1 μSv/h (at a distance of 5cm From external housing) |
X-ray Generator :
Generate direct: Upward
Generate anger: 80 degree
Anode Voltage: 140Kv
Anode power: 0.3mA
Cooling / Duty Cycle: Oil Cooling /100%
Image System :
* X-ray Sensor: L-Shaped Photodiode Array ,16bit deep .
* X ray detector board : United kingdom import
* Monitor: High Resolution Color, LCD Accord, 17 inch
* Image Processing: Black / white, Colo
* Memory gray level : 65536
* Image Max Resolution: 1024 * 1280 pixel Image
* Processing: 24bit for processing real time
* Image storage: Storage 100,000 pictures in real time
* Zoom: 32 Times Enlarge, Whole screen continuous observation
* Standard parts: menu, electricity testing, date/time display, auto-counting of objects detected, operator license number, maintenance record, system start up/ x ray generator, radial beam timing, operating mode display
* Multi-energetic distinguish retrieval Objects: Selective detection of Objects by atomic number, organic objects in orange, inorganic objects in blue, mixture in green.
* Assist to detect drug and explosive powder, according to the material composition characteristics of explosives and drugs, this device can detect.
* TIP function: Dangerous goods image is provided by the insert function (TIP), which can be convenient for training and assessing the operator’s image and recognition ability.
* Network transmission: LAN and wan links can be realized through the Ethernet controller connected to the main control data and remote transmission of image data, which is convenient for monitoring of security information and screening large system integration management.
· CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB Little low version · Motherboards: Intel G41 · Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1 and 1PCI BX press *16 ·
. Memory: 2GB, 1333MHz
· Hard Disk drive: 500GB.
· Operating System: Windows XP
* Keyboard Protection: IP43
* Machine Protection: IP20
* 70 cm extended output table
* Extension stainless steel Rollers: Optional
* Dual direction scanning
* UPS (Uninterrupted Power Supply):
Operating Environment :
* Operation temperature/Humidity: 0℃-45℃/10%-95%(non-condensing)
* Storage Temperature/Humidity: -40℃-60℃/10%-95%(non-condensing)
* Operation Power: 220VAC(±10%), 50/60Hz Power
* Consumption: 0.8 KW Noise: <58db

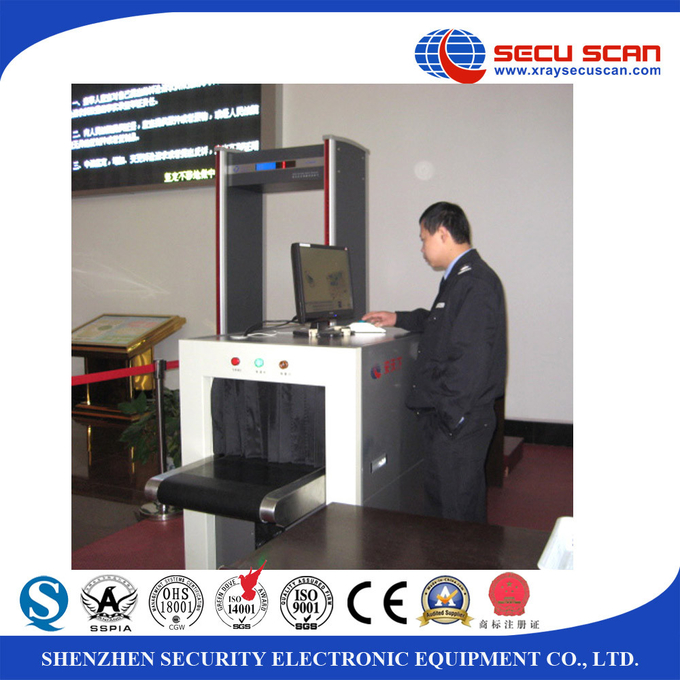

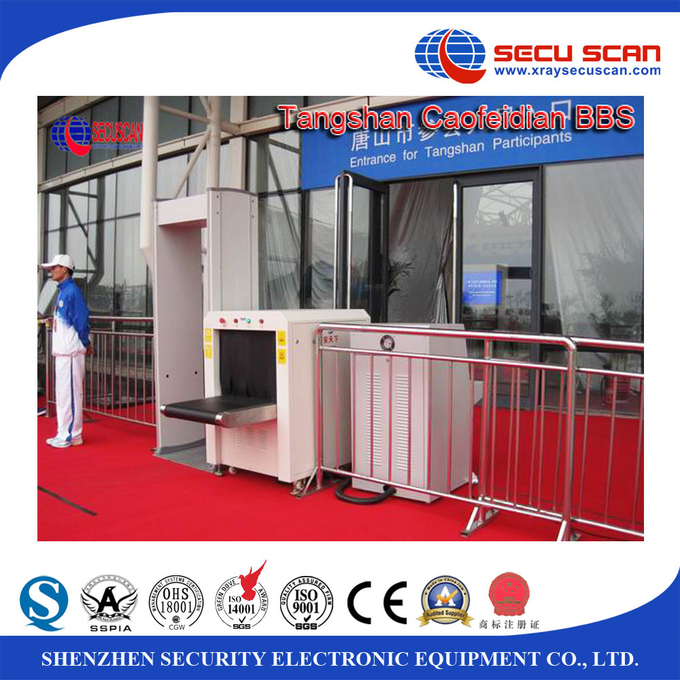

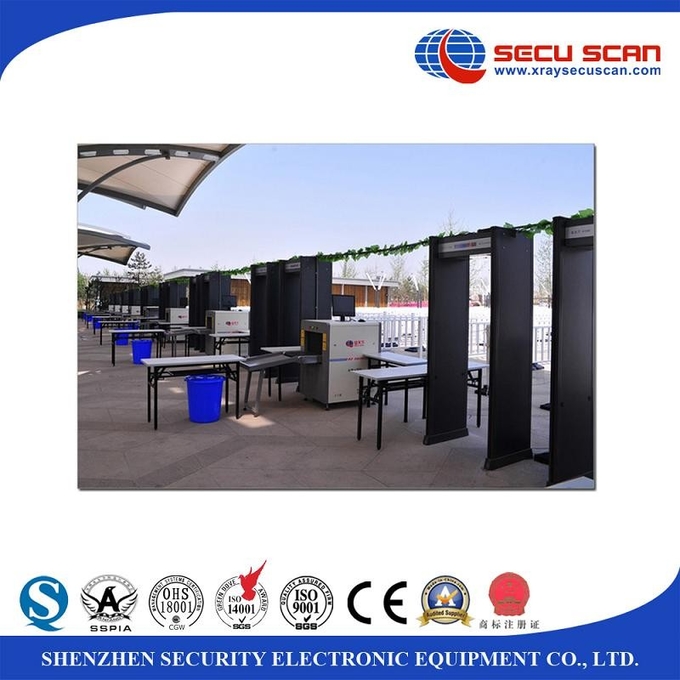

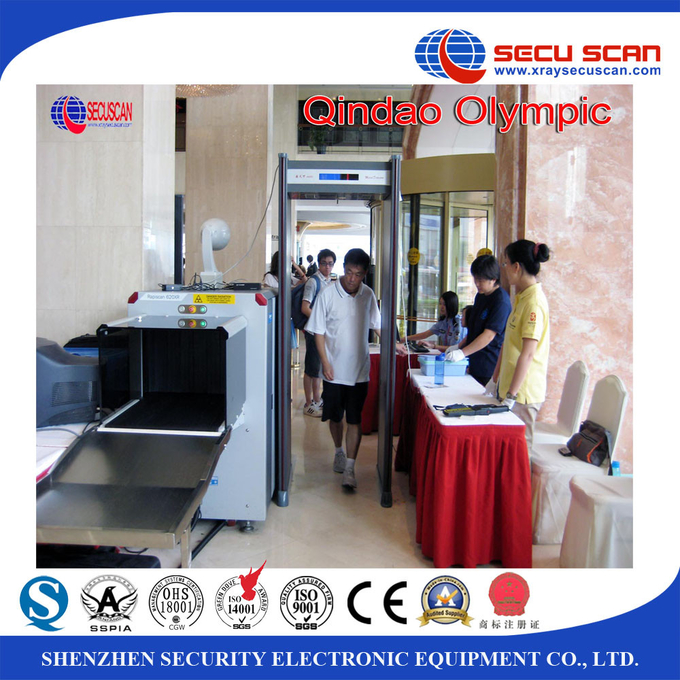

Secuscan luggage scanning system case :
