|Floor Space::||4.712 (L)*4.882 (W) M||Scanning Tunnel Size:||3.05m(W)*3.7m(H)|
|Computer System:||Windows XP Or 7||Software:||Multi-language|
|Penetration:||Typical 40mm(200kv)||Typical Throughout ::||80 Vehicles Per Hour|
|Storage:||500GB||Multi-energy:||Identify Organic And Non-organic Objects|

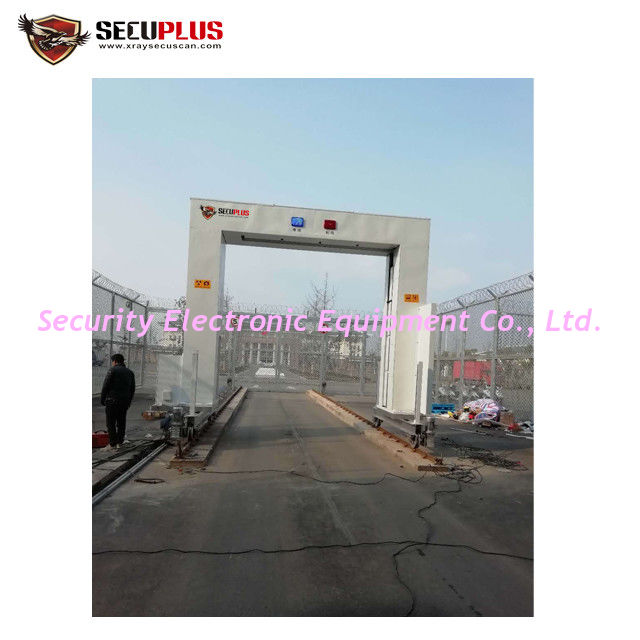

SPV-2800 can be installed in the parking lot entrance, checkpoints, customs, border, important government agencies,large venues, high security premises for vehicle safety inspection. According to the customer requirements, on-site installation conditions, this system also can be integrated with the under vehicle inspection system to realize the comprehensive multi-angle vehicle safety inspection.
* Gantry rail design moving the cars automatically
It's equipped with a gantry rail which can move forward the cars and vehicles automatically, leaving the drivers and passengers outside the cars, zero radiation
* High penetration
The SPV-2800 is with 200kv generator producing X-Ray from top to bottom, offering high-quality X-ray images of inspected objects through 40 mm of steel at car speeds of 720m/h.
* High quality X-ray images
To ensure proper detectability of the concealed objects, the SPV-2800 produces images with the 2% of the contrast sensitivity and 0.8mm copper wire detection capability.
* Dual energy imaging
The SPV-2800 has an automatic color coding for materials separation (4 colors) feature allowing distinguishing between organic, non-organic and metal materials. This feature helps the operator to detect dangerous object from the various materials.
* Radiation safety
The SPV-2800 ensures the low dose for driver and passenger operation as well as protection of the operator. The inspection portal is equipped with the video surveillance system to avoid the inspection of the passer-by's.
Generanal specs :
1. Scanning tunnel size: 16.36m(L)*6.5m(W)*5.25m(H)
2. Scanning speed:720m/h
3.Typical throughout : 80 vehicles per hour
4. Steel Penetration: typical 40mm(200kv), 60mm (300kv) option
5. Wire resolution: 0.8mm
6. Maximum vehicle length: 20m
7.Vehicle Type For Screening: Saloon Car
8. Type of X-ray Source: X-Ray Generator
