Human Presence Detection Under Vehicle Scanning System With Audio / Visual Alarm

Human Presence Detection Under Vehicle Scanning System With Audio / Visual Alarm
Human Presence Detection Under Vehicle Scanning System With Audio / Visual Alarm Human Presence Detection Under Vehicle Scanning System With Audio / Visual Alarm Human Presence Detection Under Vehicle Scanning System With Audio / Visual Alarm Human Presence Detection Under Vehicle Scanning System With Audio / Visual Alarm Human Presence Detection Under Vehicle Scanning System With Audio / Visual Alarm

Large Image :  Human Presence Detection Under Vehicle Scanning System With Audio / Visual Alarm

Product Details:
Place of Origin: CHINA
Brand Name: SECUPLUS
Certification: CE, ISO9001
Model Number: SPV-5000ES
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: wooden box
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set per month
Detailed Product Description
Vehicle Magnetic Sensor: 4pcs Ground Sensor: 1pc
Software: Multi-language Support Alarm: Audio And Visual
Operation: Easy Warranty: 18 Months
Technical Training: Free
High Light:

under vehicle inspection systems

,

car surveillance system





Human (Hiding In Vehicles) Presence Detection Under Vehicle Surveillance System

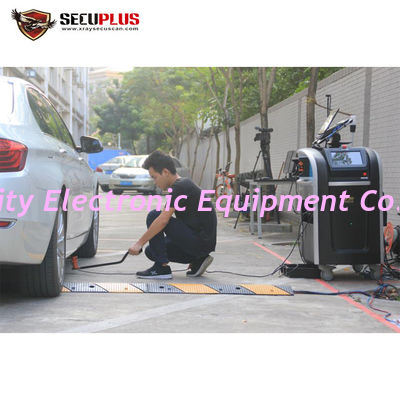

Human (hiding in vehicles) presence detection system is a vehicle security inspection system that detects human beings by sensing the subtle vibrations of heartbeat hiding in vehicles or containers that are loaded on vehicles.



Human (hiding in vehicles) presence detection system will calculate and acquire the sensor data by the processor via its built-in algorithm , and the back-end data analysis system will process and analysis the small regular vibration and environmental micro vibration which is transmitted to vehicle by the detection of human being heartbeats via sensors. Based on this vibration analysis technology, the core processing host computer determines whether there are people inside the vehicle through the core algorithm, to maximum ensure the effect of anti-escape detection



General specification :



Power Supply 110VAC-240V / 50/60 Hz
Operating temperature -20°C to 60°C
Relative humidity 10 to 90% non-condensing
Max. wind speed 35 km/h ( worlds best performance !)
Max. natural vibrations 0.4 m/s
Dimensions 98cm(L)*63cm(W)*130cm(H)
Weight 65kgs
Steering System 360°
Detection time 15-60s (adjustment)
Mounting way horizontal
IP grade Dust rating: IP6X; Waterproof rating: IPX8

Sensors





Vehicle Magnetic sensor - 4 pcs

Ground sensor - 1 pc

Wind resonance sensor - 1 pc

Computer

Processor: Intel Quad-Core, 2GHz industrial grade, RAM: DDRII 8GB

System memory: 1G or better for option

Hard disk: 500GB; Interface: USB2.0

Serials port: D-sub9 needles; Parallel port: D-sub25 needle

Ethernet interface: 10M/100M RJ45;

Software



Windows 7

.

Host computer:



Processor Intel Quad-Core, 2GHz industrial grade
system memory 2.4G
Hard disk 200G
Interface USB2.0
Port D-sub 15 needles*4
Ethernet interface 10M/100M RJ45*2
Power supply AC 220V (optional)
System Windows7
Temperature -20℃~+60℃
Humidity 10%~95%RH
Display 15 inches Touch&rotating screen display
Language English(or customization)
Steering System 360°
Anti-electric strength test 5MΩ
Insulation resistance test 29MΩ
Leakage current test 2.2mA
Shell ABS+PVC+aluminum alloy enclosure
Exterior design Lightweight design





Special data connection port:



MHPDS expansion interface*2 Vehicle management system expansion interface*2
Data backup port Ground vibration sensor expansion port*1
Network expansion port*2 Wind resonance sensor expansion port*1
Data switching control unit Life vibration sensor expansion port*2
Data control unit port Wind resonance sensor*1
Ground vibration sensor*1 Life vibration sensor*4

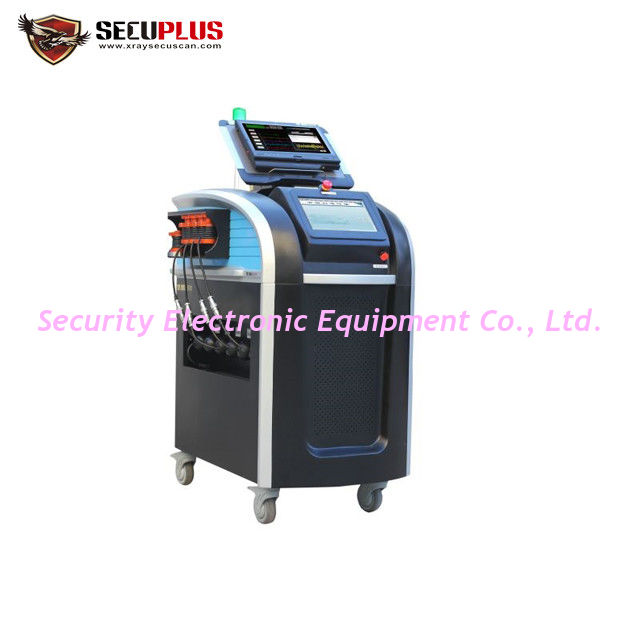

Control Cabinet:



Product Dimension 98cm(L)*63cm(W)*130cm(H)
Net weight About 65 KG
Package Wooden case packing



Company introduction:



The manufacturer of threats detecting device in south of China.
With professional R&D engineer team are specialized in:
  • X-ray screening system for baggage
  • Walk through metal detectors
  • Hand held metal detector
  • Under vehicle inspection system
  • Explosive and Drug trace detection
  • Dangerous liquid scanner
  • X ray vehicle scanner
We have successful cases in airports,customs and government, important events for protection.
The reliable military supplier of security screening system..


Our service:

  • Professional reply for your question in time before-sales during Monday to Friday in 24 hours
  • All of our product already get passing the aging test to ensure reliability quality
  • Quality inspection department will check the machine again before packing.
  • One year spare parts in free for replacing the broken after delivery
  • Remote control the machine for diagnosing
  • Technic support by video and telephone
  • Accept your engineer come to our factory for training in free
  • Send engineer to your country with additional cost.
