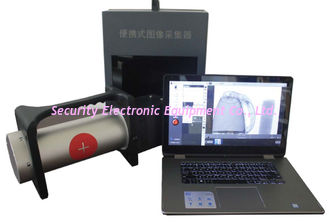

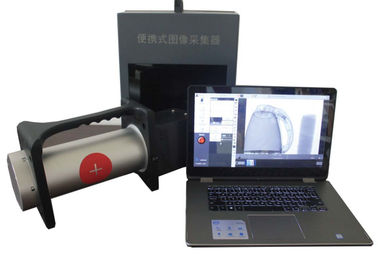

Portable Baggage Screening Equipment / X Ray Security Systems For Bomb

Portable Baggage Screening Equipment / X Ray Security Systems For Bomb
Portable Baggage Screening Equipment / X Ray Security Systems For Bomb Portable Baggage Screening Equipment / X Ray Security Systems For Bomb Portable Baggage Screening Equipment / X Ray Security Systems For Bomb Portable Baggage Screening Equipment / X Ray Security Systems For Bomb

Large Image :  Portable Baggage Screening Equipment / X Ray Security Systems For Bomb

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPX3025P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/ month
Detailed Product Description
Wire Resolution: 40AWG (dia 0.787mm Copper) Penetration: 20mm Steel/150mm Aluminum
Sensor Type: Industrial CCD Camera Imaging Array: 1280*960 Resolution
Effective Imaging Area: 304.8*252mm X Ray Generator Anode Voltage: 100KV
Training: Free Of Cost At The Factory Warranty: One Year
High Light:

airport screening machine

,

baggage x ray machine



Portable Baggage Screening Equipment / X Ray Security Systems For Bomb



High Light



  • Dimensional imaging, accurate display of dangerous goods location and internal structure
  • Dynamically capture images, support playback of dynamic video
  • Scanning images are clear, the resolution is high and the imaging speed is fast. Use CCD industrial camera;
  • High capacity battery life, meet the field operations
  • Super software features: easy to achieve multi-touch gestures, physical size measurement, continuous image zoom,
  • Multi-effect image processing
  • Security upgrades: provides X-ray delay and safety protection to ensure operator safety
  • Modular design, easy maintenance



Baisc specification:



Wire resolution 40AWG (dia 0.787mm copper)
Penetration 20mm steel/150mm aluminum
Image station Lenovo Flex3-14, touch screen 14.0 inches;
HD LED 1366 * 768 resolution; windows 8
operating system; intel core i5-6200U; 4GB
memory; 500GB hard drive; weight 1.85kg
Sensor type Industrial CCD camera
Imaging array 1280*960 resolution
Effective imaging
area
304.8*252mm
Data communication Wired transmission
Image acquisition
time
1-2s
X ray tube voltage 100kv (120kv optional)
X ray source
current
1mA
X ray source weight 9kgs
Image processing Edge enhancement, super penetration,
local enhancement, histogram
equalization, anti-color display, black
and white display, pseudo-color display,
relief display.
Area selection and
enlargement
Unlimited continuous magnification
Storage capacity At least 10000 images
Image display Support dynamic images
System function Date / time display, historical image
preview, user management, image storage
and retrieval, emergency stop operation,
device status display.
Outline Dimensions X ray generator: 482*215*178mm (L*W*G)
  Detection board : 462*366*164mm (L*W*G)
Total weight 15kgs
Operating temp. -15℃~+50℃
Storage temp. -40℃~+70℃
Battery Rechargeable lithium ion battery
(Supports 400 image captures)





Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.

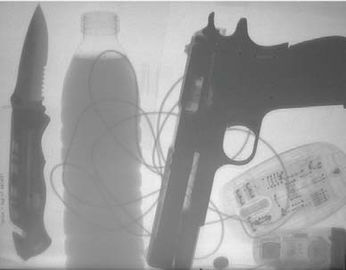

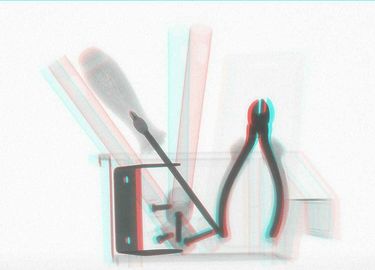

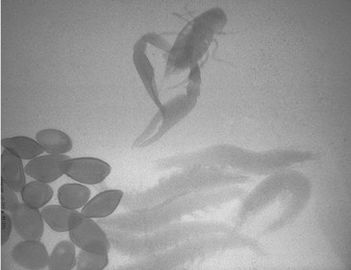

Scanning image:



Portable Baggage Screening Equipment / X Ray Security Systems For Bomb 0
