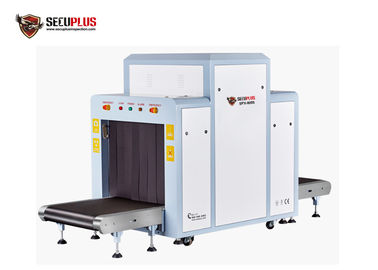

Easy Installation CE X Ray Baggage Scanner For Big Size Luggage / Cargo Inspection

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Easy Installation CE X Ray Baggage Scanner For Big Size Luggage / Cargo Inspection

Easy Installation CE X Ray Baggage Scanner For Big Size Luggage / Cargo Inspection
Easy Installation CE X Ray Baggage Scanner For Big Size Luggage / Cargo Inspection Easy Installation CE X Ray Baggage Scanner For Big Size Luggage / Cargo Inspection Easy Installation CE X Ray Baggage Scanner For Big Size Luggage / Cargo Inspection Easy Installation CE X Ray Baggage Scanner For Big Size Luggage / Cargo Inspection

Large Image :  Easy Installation CE X Ray Baggage Scanner For Big Size Luggage / Cargo Inspection

Product Details:
Place of Origin: China
Brand Name: SECU PLUS
Certification: CE, ISO
Model Number: SPX-8065
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Detailed Product Description
Model: SPX-8065 Conveyor Max Weight: 200kg
Penetration: 28-30mm Steel Operatoin: User Maual Attached With Machine
OEM/ODM: Accepted Tunnel Size: 800(W)*650(H)mm
Warranty: One Year Free Spare Parts, Life Time Technic Support Installation: Very Easy, Only A Few Wires
Software Interface: Support Multi Language Training: Free Of Cost At The Factory
High Light:

airport screening machines

,

security screening equipment

CE cetified X ray baggage scanner for big size luggage, cargo inspection

Model: SPX-8065



Specification





X Ray Generator:



Beam direction Downward
Beam angle 80 degree
Anode voltage 160kv
Anode power 0.5mA
Cooling / Duty Cycle Oil Cooling /100%





General specification:



Tunnel Size                                    800(W)*650(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 200kg
Dose per Inspection <1.5Gy/h
Resolution < 0.0787mm Copper Wire
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm
Vertical: Dial1.0mm
Penetrate resolution 28-30mm
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)





Packing and Shipment:





Packing details

carton packing

1 set/ctn, two packagings

Packing Size: (L)2890*(W)1460*(H)2150mm

Gross Weight:1370kg

Payment terms

T/T, Western Union, Cash,L/C

Shipping methods

By air   (5-7days, most expensive)

By express (3-7days, more expensive)

By sea    (15-28days, cheapest)

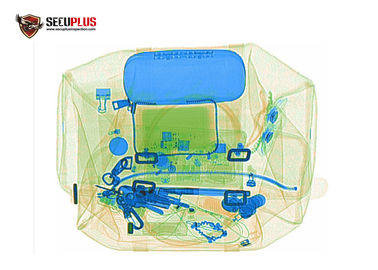

X Ray Image:





X-ray Sensor                       L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Image Processing Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zoom 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy Switch from high energy to low energy
Adavantage Assist to detect drug and explosive powder





Installation Data:



  1. Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
  2. Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
  3. Operation Power: 220VAC(± 10%)50± 3Hz
  4. Power Consumption: 1.0 KW (max), 0.7KW(working)
  5. Noise: <58dB.



Computer Specs:

  1. CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB
  2. Motherboards: Intel G41/Nvidia chip set, 7025 or better on OEM motherboard
  3. Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1 and 1PCI BX press *16
  4. Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots.
  5. Hard Disk drive: 500GB 7200 rpm serial ATA HDD.
  6. Mouse: Optical



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.
