Small X Ray Scanning Machine Vehicle Scanner For Car / Medium Vans / Truck Inspection

China Small X Ray Scanning Machine Vehicle Scanner For Car / Medium Vans / Truck Inspection supplier
Small X Ray Scanning Machine Vehicle Scanner For Car / Medium Vans / Truck Inspection supplier Small X Ray Scanning Machine Vehicle Scanner For Car / Medium Vans / Truck Inspection supplier Small X Ray Scanning Machine Vehicle Scanner For Car / Medium Vans / Truck Inspection supplier

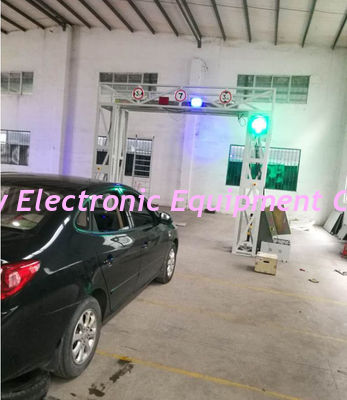

Large Image :  Small X Ray Scanning Machine Vehicle Scanner For Car / Medium Vans / Truck Inspection

Product Details:

Place of Origin: China
Brand Name: SECU SCAN
Certification: CE, ISO
Model Number: AT2900

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden packaging
Delivery Time: 90 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 unit/ year
Contact Now
Detailed Product Description
Application: Checkpoints, Customs, Border, Etc Typical Throughput:: 150 Pcs Vehicle/h
Installation: Will Send Engineer To Assist Warranty: One Year
Vehicle Type: Car, Medium Vans Training: Provide Training At The Local
Usage: Car Safety Check

Small size x ray vehicle scanner for car, medium vans and truck inspection
Model: AT2900

System Hightlights:

High penetration
The AT2900 produces high-quality X-ray images of inspected objects through 20 mm of steel at car
speeds of 10 km/h.
Drive-thru technology
Occupied vehicle scanning capability: passengers can stay in their cars during scanning process,
driving them under their own power through the inspection portal.
Small footprint
The deployment of the AT2900 requires a relatively small ground surface without special
requirements for additional infrastructure.
High quality X-ray images
To ensure proper detect ability of the concealed objects, the AT2900 produces images with the 2% of
the contrast sensitivity and 0.8mm copper wire detection capability.
Dual energy imaging
The AT2900 has an automatic color coding for materials separation (3 colors) feature allowing
distinguishing between organic, non-organic and metal materials. This feature helps the operator to
detect dangerous object from the various materials.

Basic Spec.:

Equipment size 4.8(L) * 4.9(W) * 3.75(H) M
Installation area ideally 7(L)* 5(W) * 4.5(H)M
Tunnel size 3(L)* 3(H) m
Scanning Speed 5-10 km/h
Typical throughput 150pcs vehicles / hour
Max. Vehicle length 20m and extendable
Penetration typical Typical 45mm steel, application 20mm steel
Max. Dose to working area <0.2 μSv/h
Dose rate outside public area<0.5μSv, compliant with IAEA standard
Film Safety Guarantee ASA/ISO1600 Film
Power consumption Max. 2KVA
Operator 's workstation PC-based workstation with the 24" LCD display


X-ray Generator (single)

X ray Accelerator 200kv, from one side
Beam shape Vertical fan-shaped beam
Automomous power supply (reserve) Autonomous diesel generator with diesel oil reserve for 24 hours continuous operation (optional)


Radiation Safety System

X ray dose per inspection <5.0μsv
X ray leakage <0.5μsv, complied with international IAEA standard



Software


1 password-protected login of the operator
2 Automatic real-time display of the inspected vehicle
3 Brightness and contrast adjustment of acquired image
4 High-density and low-density objects display feature
5 Zoom in and pan functions(up to 8x)
6 Block/whit



Operating Environment

Operation temperature/Humidity -15℃-55℃ / 5%-95%(non-condensing)
Storage Temperature/Humidity -40℃to 70℃ / 5%-95%(non-condensing)
Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS 15mins, 30mins, 60mins etc, optional
