Automatically High Penetration Car X Ray Security Scanner For Security Inspection

China Automatically High Penetration Car X Ray Security Scanner For Security Inspection supplier

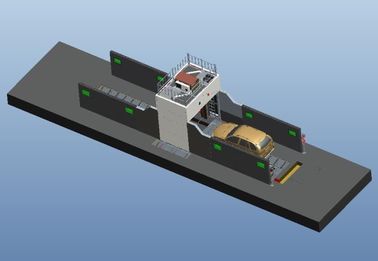

Large Image :  Automatically High Penetration Car X Ray Security Scanner For Security Inspection

Product Details:

Place of Origin: China
Brand Name: SECU SCAN
Certification: CE, ISO
Model Number: AT2800

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden packaging
Delivery Time: 90 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 unit/ year
Contact Now
Detailed Product Description
Tunnel Size: 3m*3m Application: Checkpoints, Customs, Border, Etc
Typical Throughput:: 100 Pcs Vehicle/h Warranty: One Year
Vehicle Type: Car, Medium Vans Training: Provide Training At The Local
Usage: Car Safety Check

X ray vehicle scanning, car scanning for security inspection
Model: AT2800

System Hightlights:



High security protection
Track stretch design enables automatic transmission of vehicles to get scanning, maximally keep the driver and personnel away from radiation.

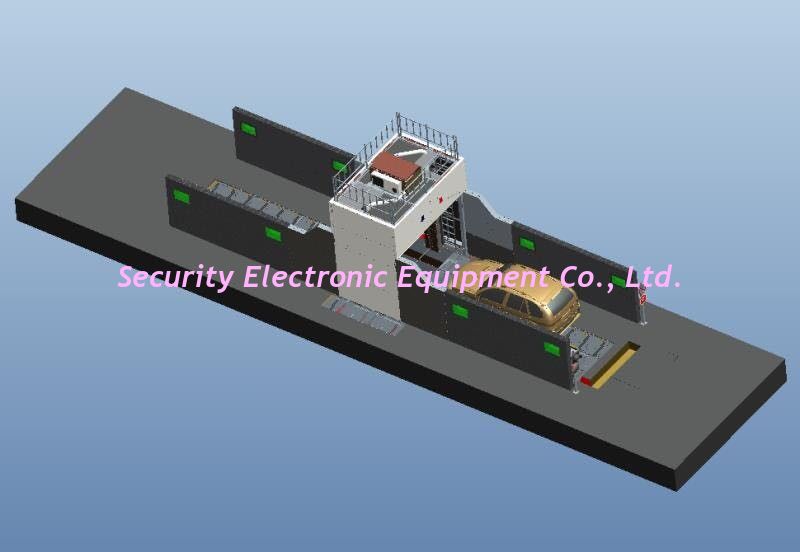

Gantry rail design moving the cars automatically
Equipped with a gantry rail which can move forward the cars and vehicles automatically, leaving the drivers and passengers outside the cars, zero radiation






High penetration
AT2800 is with 200kv(300kv optional) generator producing X-Ray from top to bottom, offering
high-quality X-ray images of inspected objects through 60 mm of steel at car speeds of 10 km/h

Friendly interface, can integrated with LPRS and under vehicle inspection system.

Automatic recognition of the license plate number (option)
With the additional camera (option) the AT2800 is able to identify and store the license plate
number of each scanned vehicle.

Under video vehicle surveillance (option)
Upon request, the AT2800 can be provided with the video surveillance system for under-vehicle inspection

Basic Spec.:

Tunnel size 16.5(L)*6.5(W)*5.5(H)
Scanning Speed 5-10 km/h
Typical throughput 150pcs vehicles / hour
Max. Vehicle length 20m and extendable
Penetration typical typical 40mm(200kv),60mm(300kv)
Max. Dose to working area <5 μSv/h
Dose rate outside public area<0.5μSv, compliant with IAEA standard
Film Safety Guarantee ASA/ISO1600 Film
Power consumption Max. 2KVA


X-ray Generator (single)

X ray Accelerator 200kv (300kv optional)
X ray beam From top to down
Cooling / Duty Cycle Oil Cooling /100%


Radiation Safety System

X ray dose per inspection <5.0μsv
X ray leakage <0.5μsv, complied with international IAEA standard







Operating Environment

Operation temperature/Humidity -15℃-55℃ / 5%-95%(non-condensing)
Storage Temperature/Humidity -40℃to 70℃ / 5%-95%(non-condensing)
Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS 15mins, 30mins, 60mins etc, optional
