High Throughput X Ray Vehicle Security Scanning Machine Small Footprint
Detailed Product Description
||Checkpoints, Customs, Border, Etc
||150 Pcs Vehicle/h
||Will Send Engineer To Assist
||Provide Training At The Local
||Car Safety Check
High throughput x ray vehicle scanner, container scanner, car scanner
Occupied vehicle scanning capability: passengers can stay in their cars during scanning process,
driving them under their own power through the inspection portal.
The deployment of the AT2900 requires a relatively small ground surface without special
requirements for additional infrastructure.
The AT2900 produces high-quality X-ray images of inspected objects through 20 mm of steel at car
speeds of 10 km/h.
High quality X-ray images
To ensure proper detect ability of the concealed objects, the AT2900 produces images with the 2% of
the contrast sensitivity and 0.8mm copper wire detection capability.

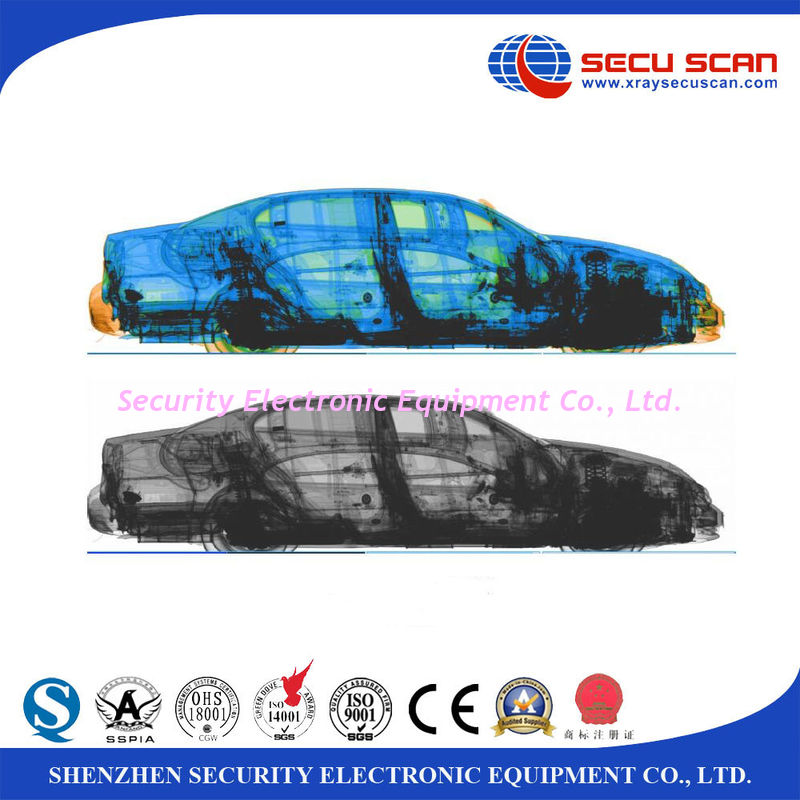

Dual energy imaging
The AT2900 has an automatic color coding for materials separation (3 colors) feature allowing
distinguishing between organic, non-organic and metal materials. This feature helps the operator to
detect dangerous object from the various materials.
The AT2900 ensures the low dose for driver and passenger operation (complies with ANSI 43.17
standard) as well as protection of the operator. The inspection portal is equipped with the video
surveillance system to avoid the inspection of the passer-by's.
Automatic recognition of the license plate number (option)
With the additional camera (option) the AT2900 is able to identify and store the license plate number
of each scanned vehicle.
Under video vehicle surveillance (option)
Upon request, the AT2900 can be provided with the video surveillance system for under-vehicle inspection
|Equipment size||4.8(L) * 4.9(W) * 3.75(H) M|
|Installation area ideally||7(L)* 5(W) * 4.5(H)M|
|Tunnel size||3(L)* 3(H) m|
|Scanning Speed||5-10 km/h|
|Typical throughput||150pcs vehicles / hour|
|Max. Vehicle length||20m and extendable|
|Penetration typical||Typical 45mm steel, application 20mm steel|
|Max. Dose to working area||<0.2 μSv/h|
|Dose rate outside||public area<0.5μSv, compliant with IAEA standard|
|Film Safety||Guarantee ASA/ISO1600 Film|
|Power consumption||Max. 2KVA|
|Operator 's workstation||PC-based workstation with the 24" LCD display|
X-ray Generator (single)
|X ray Accelerator||200kv, from one side|
|Beam shape||Vertical fan-shaped beam|
|Automomous power supply (reserve)||Autonomous diesel generator with diesel oil reserve for 24 hours continuous operation (optional)|
Radiation Safety System
|X ray dose per inspection||<5.0μsv|
|X ray leakage||<0.5μsv, complied with international IAEA standard|
|1 password-protected login of the operator|
|2 Automatic real-time display of the inspected vehicle|
|3 Brightness and contrast adjustment of acquired image|
|4 High-density and low-density objects display feature|
|5 Zoom in and pan functions(up to 8x)|
|Operation temperature/Humidity||-15℃-55℃ / 5%-95%(non-condensing)|
|Storage Temperature/Humidity||-40℃to 70℃ / 5%-95%(non-condensing)|
|Operation Power||220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)|
|UPS||15mins, 30mins, 60mins etc, optional|
