3m * 3m Tunnel Security X Ray Inspection System For Vehicle , Truck , Vans Check

3m * 3m Tunnel Security X Ray Inspection System For Vehicle , Truck , Vans Check
3m * 3m Tunnel Security X Ray Inspection System For Vehicle , Truck , Vans Check 3m * 3m Tunnel Security X Ray Inspection System For Vehicle , Truck , Vans Check 3m * 3m Tunnel Security X Ray Inspection System For Vehicle , Truck , Vans Check 3m * 3m Tunnel Security X Ray Inspection System For Vehicle , Truck , Vans Check

Large Image :  3m * 3m Tunnel Security X Ray Inspection System For Vehicle , Truck , Vans Check

Product Details:
Place of Origin: China
Brand Name: SECU SCAN
Certification: CE, ISO
Model Number: AT2800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden packaging
Delivery Time: 90 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 unit/ year
Detailed Product Description
Usage: For Vehicle Safety Check Tunnel Size: 3m*3m
Application: Checkpoints, Customs, Border, Etc Throughput:: At Least 100 Pcs Vehicle/h
Installation: Will Send Engineer To Assist Vehicle Type: Car, Medium Vans
Training: Provide Training At The Local
High Light:

baggage scanner machine

,

airport security baggage scanners

Security X ray inspection system for vehicle, truck, vans check
Model: AT2800

System Hightlights:

Gantry rail design moving the cars automatically
Equipped with a gantry rail which can move forward the cars and vehicles automatically, leaving the drivers and passengers outside the cars, zero radiation
High security protection
Track stretch design enables automatic transmission of vehicles to get scanning, maximally keep the driver and personnel away from radiation.
High pass rate, can achieve 100% inspection
High penetration
AT2800 is with 200kv(300kv optional) generator producing X-Ray from top to bottom, offering
high-quality X-ray images of inspected objects through 60 mm of steel at car speeds of 10 km/h
Dual energy imaging
AT2800 has an automatic color coding for materials separation (3 colors) feature allowing
distinguishing between organic, non-organic and metal materials. This feature helps the operator to detect dangerous object from the various materials.

Friendly interface, can integrated with LPRS and under vehicle inspection system.



Basic Spec.:

Tunnel size 16.5(L)*6.5(W)*5.5(H)
Scanning Speed 5-10 km/h
Typical throughput 150pcs vehicles / hour
Max. Vehicle length 20m and extendable
Penetration typical typical 40mm(200kv),60mm(300kv)
Max. Dose to working area <5 μSv/h
Dose rate outside public area<0.5μSv, compliant with IAEA standard
Film Safety Guarantee ASA/ISO1600 Film
Power consumption Max. 2KVA


X-ray Generator (single)

X ray Accelerator 200kv (300kv optional)
X ray beam From top to down
Cooling / Duty Cycle Oil Cooling /100%


Radiation Safety System

X ray dose per inspection <5.0μsv
X ray leakage <0.5μsv, complied with international IAEA standard



Image System


Image process

Image enhancement; magnifying; brightening / darkening; image pullback / front pull
image storage;

Others Date / time display; vehicle count; user management; system working time; ray out timing; power-on self-test; image storage and retrieval; maintenance diagnosis
Fully automated scanning no manual operation need for operator or driver
Drive-through mode no stopping of vehicle during scanning
Stationary mode the vehicle stays still and the scanner move through the rails and scan the vehicle automatically



Operating Environment

Operation temperature/Humidity -15℃-55℃ / 5%-95%(non-condensing)
Storage Temperature/Humidity -40℃to 70℃ / 5%-95%(non-condensing)
Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS 15mins, 30mins, 60mins etc, optional

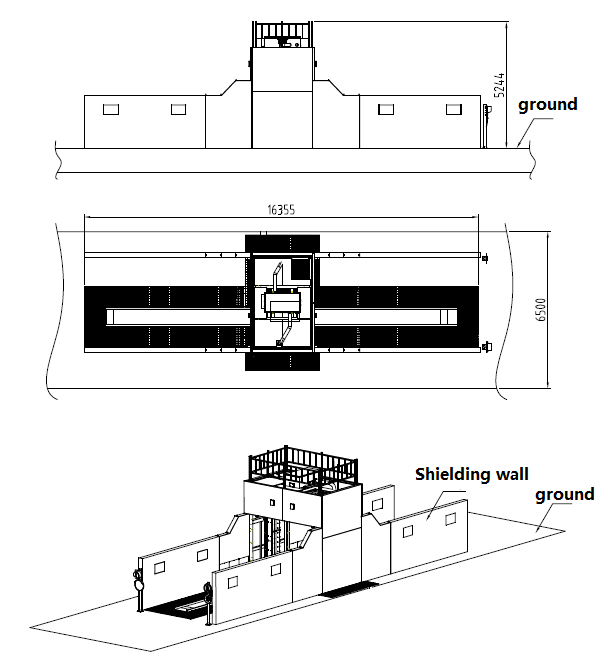

Outline drawing:

3m * 3m Tunnel Security X Ray Inspection System For Vehicle , Truck , Vans Check 0
