High Security X Ray Scanning System Vehicles - X Ray Non Intrusive Inspection System

China High Security X Ray Scanning System Vehicles - X Ray Non Intrusive Inspection System supplier
High Security X Ray Scanning System Vehicles - X Ray Non Intrusive Inspection System supplier High Security X Ray Scanning System Vehicles - X Ray Non Intrusive Inspection System supplier High Security X Ray Scanning System Vehicles - X Ray Non Intrusive Inspection System supplier High Security X Ray Scanning System Vehicles - X Ray Non Intrusive Inspection System supplier

Large Image :  High Security X Ray Scanning System Vehicles - X Ray Non Intrusive Inspection System

Product Details:

Place of Origin: China
Brand Name: SECU SCAN
Certification: CE, ISO
Model Number: AT2800

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD
Packaging Details: compact pacakges
Delivery Time: 30days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1set
Contact Now
Detailed Product Description
Tunnel Size: 3 (L)* 3 (H) M Typical Throughput: 150pcs Vehicles / Hour
Dual Energy Accelerator: 320KV (1MeV Available)

SECU SCAN X ray vehicle inspection system AT2800 is designed to inspect the inside of vehicles. It can quickly and accurately identify threats/ contraband/ weapons hidden in the vehicle.



AT2800 greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.



Highlights:





    1. High security protection

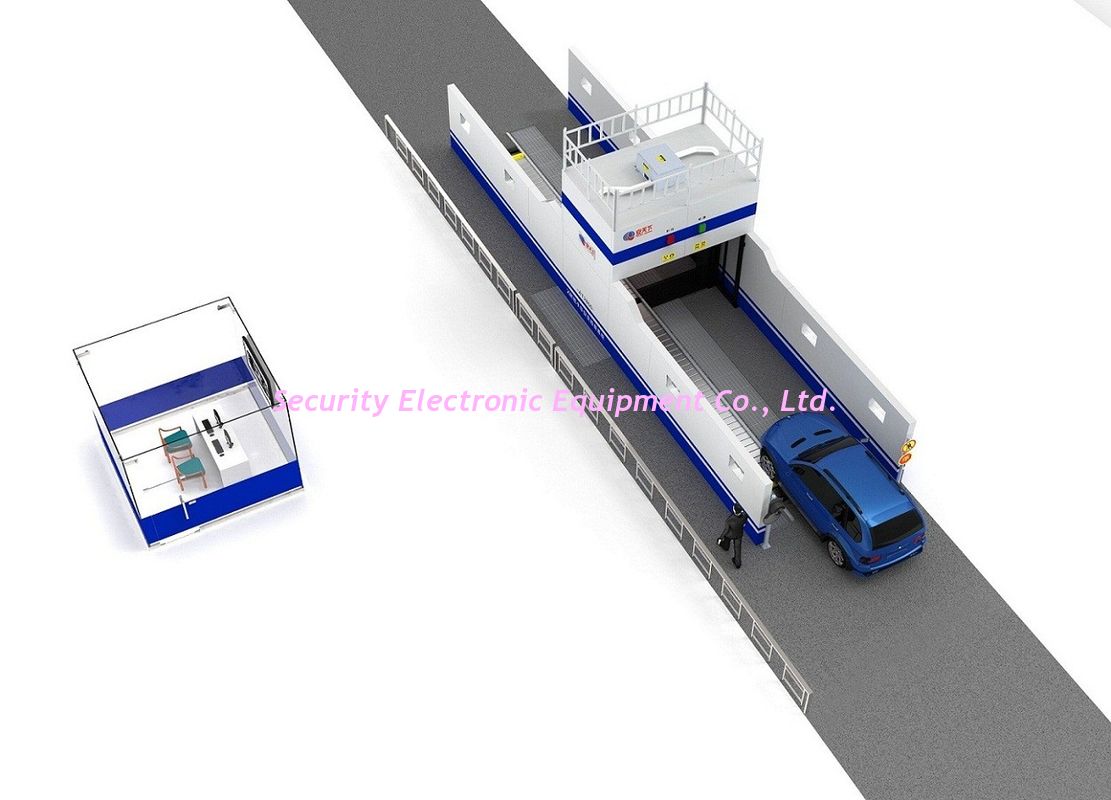

         Track stretch design enables automatic transmission of vehicles to get scanning, maximally keep               the driver and personnel away from radiation.

    2. High pass rate, can achieve 100% inspection

    3. High penetration, no image distortion

    4. Large scanning channel, suitable for checking a variety of small and medium-sized vehicles.

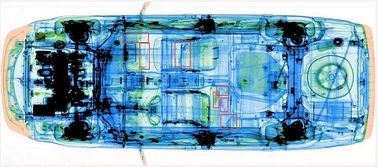

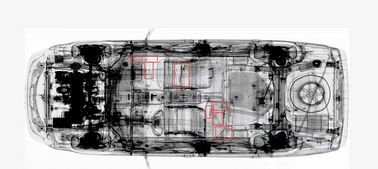

Powerful image processing function, such as zoom in, zoom out, pseudo-color transform, edge enhancement, contrast adjustment, multi-image comparison, and image format conversion, so that the operator can easily and quickly identify the contrabands and dangerous items inside of the vehicles, mark the suspected parts on the image.

   5.  Friendly interface, can integrated with LPRS and under vehicle inspection system.



Physical Specifications
Unit weight (kgs) 1. X-Ray Source Module 1500kgs
  2. Control Module 860kgs
  3. X-Ray Detector 510kgs
Unit size (mm) 1. X-Ray Source Module 2850(L) mm x 2550(W) mm x 2765(H) mm
  2. Control Module 2350(L) mm x 2500(W) mm x 2695 (H) mm
  3. X-Ray Detector 2525(L) mm x 2505 (W) mm x 2650 (H) mm
Area required for equipment 4.5 (W) m x 2 (L) m
Exclusion zone ideally 10 m x 10 m

General Specifications
Tunnel size 3 (L)* 3 (H) m
Scanning Speed 5-10 km/h
Typical throughput 150pcs vehicles / hour
Max. Vehicle length 20m and extendable
Penetration 50mm steel
Wire Resolution dia 1.0mm copper wire
Max. Dose to passengers < 0.2 μSv/scan
Dose rate outside public area<0.5μSv, compliant with IAEA standard
Power Consumption max. 5KVA
Film Safety Guarantee ASA/ISO1600 Film

X-ray Generator (single)
Dual energy accelerator 320KV (1MeV available)
Beam shape Vertical fan-shaped beam
Automomous power supply (reserve) Autonomous diesel generator with diesel oil reserve for 24 hours continuous operation (optional)

Radiation Safety System
CCTV video surveillance cameras four video cameras and surroundings monitors in the control room
Emergency shutdown buttons Inside the operating room and on the X-ray detector module
Safety interlocks everywhere as necessary
Vehicle presence sensors optical sensors

Image System
Fully automated scanning no manual operation need for operator or driver
Drive-through mode no stopping of vehicle during scanning
Centralized control remote control in control room and image analysis room
X-ray Sensor L-Shaped Photodiode Array (multi-energetic) , 20bit Deep
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall All preceding images recallable, retrieval
Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of vehicles

Operating Environment
Operation temperature/Humidity -15ºC-55ºC / 5%-95%(non-condensing)
Storage Temperature/Humidity -40ºCto 70ºC / 5%-95%(non-condensing)
Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS 15mins, 30mins, 60mins etc, optional

Computer and other
Monitor 4 * High Resolution Color, LCD Accord, 19 inch or 22 inch
Hard Disk SEAGATE 500G 3.5"
Multifunctional device printer, scanner, copier in one
Storage 2GB 1600MHz DDR3 Innodisk

Compliance
International * ISO19001 ; ISO14001 ; OHSMS18001 ;
* CE
* USA FDA
* Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard - less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface



Application: Parking lot entrance, checkpoints, customs, border, important government agencies,large venues, high security premises for vehicle safety inspection. According to the customer requirements, on-site installation conditions, this system also can be integrated with the under vehicle inspection system to realize the comprehensive multi-angle vehicle safety inspection.
