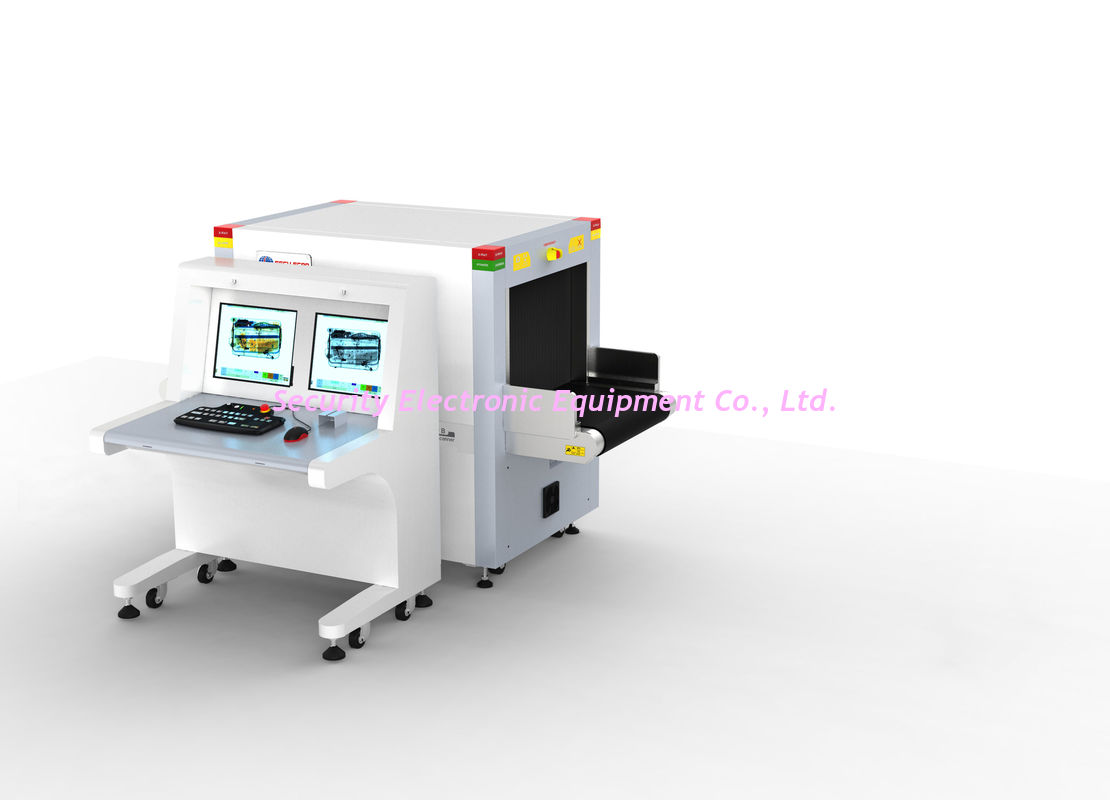

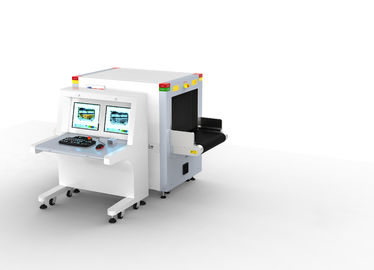

AT6550B Baggage And Parcel Inspection Machine Metro Station Luggage X Ray Scanner

AT6550B Baggage And Parcel Inspection Machine Metro Station Luggage X Ray Scanner
AT6550B Baggage And Parcel Inspection Machine Metro Station Luggage X Ray Scanner AT6550B Baggage And Parcel Inspection Machine Metro Station Luggage X Ray Scanner

Large Image :  AT6550B Baggage And Parcel Inspection Machine Metro Station Luggage X Ray Scanner

Product Details:
Place of Origin: China
Brand Name: secuscan
Certification: CE ISO
Model Number: AT6550B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 300 SETS per month
Detailed Product Description
Tunnel Size: 653(W)*514(H)mm Conveyor Speed: 0.22m/s
Conveyor Height: 690mm Conveyor Max Load: 170kg
Wire Resolution: 40AWG Bi-directional Scan: Yes
OEM: Yes Steel Penetration: 28-38mm Steel
Have In Stock: Yes Generator: 160KV USA Brand
High Light:

cargo inspection

,

x-ray baggage inspection system

Metro Station use Luggage X Ray Scanner AT6550B Baggage and Parcel Inspection machine



General Specification

  1. Tunnel Size: 653(W)*514(H)mm
  2. Conveyor Speed: 0.22m/s
  3. Conveyor height : 690mm
  4. Conveyor Max Load: 170kg
  5. Wire Resolution:40AWG
  6. Spatial resolution Level: dia1.0mm,Vertical: dia1.0mm
  7. Steel Penetration: 38mm guaranteed, 40mm typical
  8. Film Safety : guarantee ISO 1600 film
  9. X-ray Leakage: <1.0μ Sv / hr(at a distance of 5cm From external housing)



Image System

X-ray Sensor: L-Shaped Photodiode Array ,16bit deep .

Monitor: High Resolution Color, LCD Accord, 17 inch

Image Processing: Black / white, abundant energy , variable absorptive, elimination of inanimate matter, elimination of organism, super-enhance, reversed color, high energy penetration, low energy penetration, image strengthening, image lightening, reducing darkening.



Memory gray level 65536
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time



Image storage: Storage 100,000 pictures in real time

Zoom: 32X/64X Times Enlarge, Whole screen continuous observation Multi-energetic distinguish retrieval. Objects: Selective detection of Objects by atomic number, organic objects in orange, inorganic objects in blue, mixture in green.

High-energy/low energy: switch from high energy to low energy
Assist to detect drug and explosive powder

TIP function: Automatic identification of threads such as knifes guns, etc.



X-ray Generator

Generate direct Upward
Generate anger 80 degree
Anode Voltage 160Kv
Anode power 0.8mA
Cooling / Duty Cycle Oil Cooling /100%





Computer Character

Computer CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB Little low version, Motherboards: Intel G41, Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1and 1PCI BX press *16 .

Memory: 2GB1333MHz DDR3 RAM, with Minimum2 total DIMM slots. Hard Disk drive: 500GB 7200 rpm serial ATA.



Other Characters

Keyboard Protection: IP43

Machine Protection: IP20

Dual direction scanning

Extension Rollers: Optional

UPS: Optional

Support card reader operator access

Monitor Table: one LCD monitors, made in stainless steel. it have vents and transparent parts

Computer system: Window XP System LCD monitor: 19 inch (optional)

Certificates: ISO9001:2008, CE



Operating Environment

Operation temperature/Humidity:--------- 0℃-45℃/10%-95%(non-condensing)
Storage Temperature/Humidity------- -40℃-60℃/10%-95%(non-condensing)

Operation Power------------- 220VAC (±10%), 50Hz

Power Consumption--------------- 1.0 KW (max), 1.0KW (working)

Noise---------------- <58db



AT6550B High Clear Images Displayed



AT6550B Baggage And Parcel Inspection Machine Metro Station Luggage X Ray Scanner 0AT6550B Baggage And Parcel Inspection Machine Metro Station Luggage X Ray Scanner 1
