Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 653(W)*514(H)mm | Conveyor Speed: | 0.22m/s |
|---|---|---|---|
| Conveyor Height: | 690mm | Conveyor Max Load: | 170kg |
| Wire Resolution: | 40AWG | Bi-directional Scan: | Yes |
| OEM: | Yes | Steel Penetration: | 28-38mm Steel |
| High Light: | security screening equipment,airport baggage scanner |
||

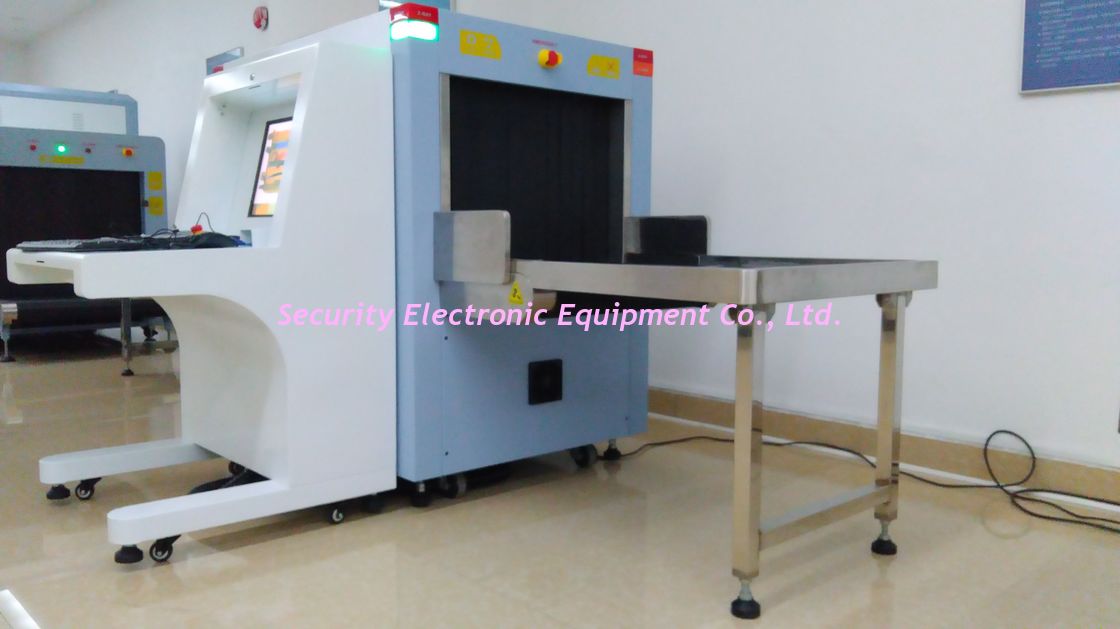

AT6550B Airport Luggage X Ray Baggage Scanner Machine FDA & CE Approved
General Specification
Tunnel Size: 653(W)*514(H)mm
Conveyor Speed: 0.22m/s
Conveyor height : 690mm
Conveyor Max Load: 170kg
Wire Resolution:40AWG
Spatial resolution Level: dia1.0mm,Vertical: dia1.0mm
Steel Penetration: 38mm guaranteed, 40mm typical
Film Safety : guarantee ISO 1600 film
X-ray Leakage: <1.0μ Sv / hr(at a distance of 5cm From external housing)
Image System
X-ray Sensor: L-Shaped Photodiode Array ,16bit deep .
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Black / white, abundant energy , variable absorptive, elimination of inanimate matter, elimination of organism, super-enhance, reversed color, high energy penetration, low energy penetration, image strengthening, image lightening, reducing darkening.
| Memory gray level | 65536 |
| Image Max Resolution | 1024 * 1280 pixel |
| Image Processing | 24bit for processing real time |
Image storage: Storage 100,000 pictures in real time
Zoom: 32X/64X Times Enlarge, Whole screen continuous observation Multi-energetic distinguish retrieval. Objects: Selective detection of Objects by atomic number, organic objects in orange, inorganic objects in blue, mixture in green.
High-energy/low energy: switch from high energy to low energy
Assist to detect drug and explosive powder
TIP function: Automatic identification of threads such as knifes guns, etc.
X-ray Generator
| Generate direct | Upward |
| Generate anger | 80 degree |
| Anode Voltage | 160Kv |
| Anode power | 0.8mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
Computer Character
Computer CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB Little low version, Motherboards: Intel G41, Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1and 1PCI BX press *16 .
Memory: 2GB1333MHz DDR3 RAM, with Minimum2 total DIMM slots. Hard Disk drive: 500GB 7200 rpm serial ATA.
Other Characters
Keyboard Protection: IP43
Machine Protection: IP20
Dual direction scanning
Extension Rollers: Optional
UPS: Optional
Support card reader operator access
Monitor Table: one LCD monitors, made in stainless steel.
it have vents and transparent parts
Computer system: Window XP System LCD monitor: 19 inch (optional)
Certificates: ISO9001:2008, CE
Operating Environment
Operation temperature/Humidity:--------- 0℃-45℃/10%-95%(non-condensing)
Storage Temperature/Humidity------- -40℃-60℃/10%-95%(non-condensing)
Operation Power------------- 220VAC (±10%), 50Hz
Power Consumption--------------- 1.0 KW (max), 1.0KW (working)
Noise---------------- <58db
AT6550B High Clear Images Displayed
