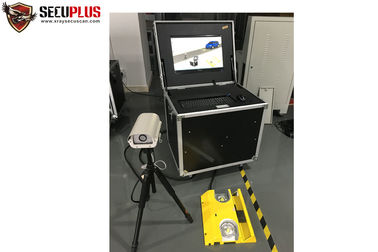

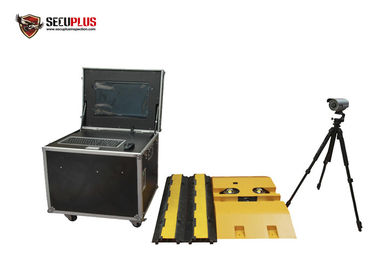

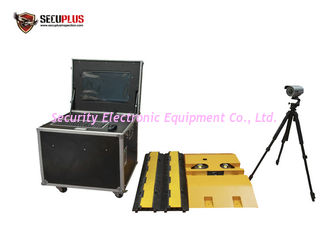

Under vehicle Surveillance system AT3000 Portable UVSS for Entry security check
- Automatic digital line scan camera, with high-resolution and clarity of the image.
- The complete image of under vehicle scanning, without any omissions,
- and the image is clear, complete, no distortion, can be clearly observed that
- the object is not less than 2mm in diameter.
- Preparation of inspection processes to meet a variety of on-site needs.
- Multiple scene image monitoring, recording function.
- Multi-language user interface design.
- Strong scalability to easily achieve a variety of system linkage control.
- (Optional)ALPR(Automatic Licence Plate Recognition)
- Optional Multiple devices networked control functions
- Brand: Grantech (UFO6377H-SP1-953)
- CPU: Intel® Core(TM) 2 Duo CPU P8600@2.4GHz or higher
- Memory:2G( optional 4G)
- Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
- Hard Disk:SATA2 Hard Disk 500G
- Dual LAN (At least one Intel Gigabit)
- USB2.0 (Up to 4 pieces)
- Monitor: 22inch LCD, resolution up to 1920*1080
|Vertical resolution of the image
|Check the width viewing angle
||< 4 meters
|Speed of vehicle
< 30km/h with ALPR(Automatic Licence Plate Recognition)
< 70km/h without ALPR(Automatic Licence Plate Recognition)
|Effective Field of View(FOV)
||less than 170°
- Water-proof grade-------- Ip68
- Scanning device weight---------------24KG
- Scanning device volume---------------450mm×400mm×88mm
- Communication interface---------------RS232/RS422
- Operating Temperature------------ -10℃ to 55℃
- Storage temperature------------------- -40℃ to +75℃
- Operating voltage------------------ 110-240V AC, 50-60HZ

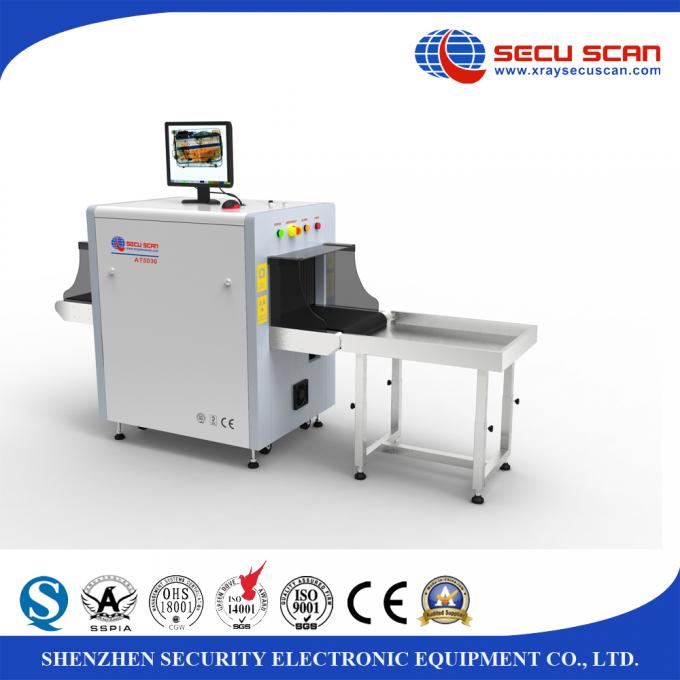

X-ray Baggage Scanner AT5030C
Let me introduce our company in short. Our company established since 2003, and specialized in security equipments more than 10 years.
Our core competencies is
X ray baggage scanner
Walk through metal detector
Under vehicle surveillance system
Dangerous Liquid scanner
By the way, if you have any other good idea, please keep us posted.Thanks.
All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free.
Additionally, our company provides technical support and fittings for life.
After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
If you are caught in some problems when using our products, welcome to contact us at any time.
