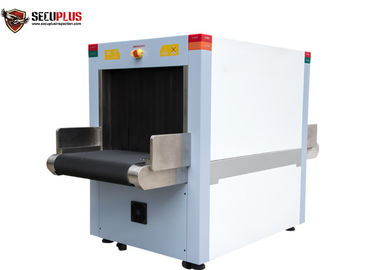

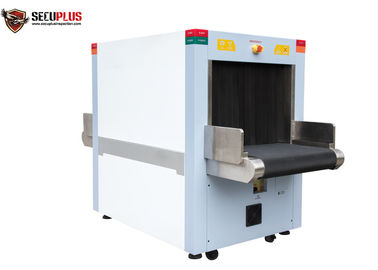

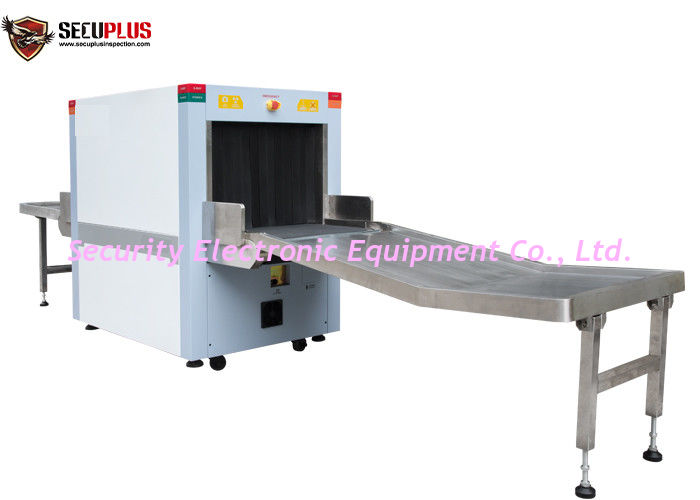

Embassy security check X Ray Baggage Scanner SECUPLUS airport bag scanner SPX6040

Embassy security check X Ray Baggage Scanner SECUPLUS airport bag scanner SPX6040
Embassy security check X Ray Baggage Scanner SECUPLUS airport bag scanner SPX6040 Embassy security check X Ray Baggage Scanner SECUPLUS airport bag scanner SPX6040 Embassy security check X Ray Baggage Scanner SECUPLUS airport bag scanner SPX6040

Large Image :  Embassy security check X Ray Baggage Scanner SECUPLUS airport bag scanner SPX6040

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPX6040
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: Within 7 working days after get your full payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Tunnel Size: 600(W)*400(H)mm Conveyor Max Load: 170kg
TIP: Yes Penetration: 34mm Steel
Have In Stock: Yes Conveyor Speed: 0.22m/s
OEM: Accept Extension Table: One Is Free
High Light:

airport screening machines

,

airport baggage scanner

Embassy security check X Ray Baggage Scanner SECUPLUS airport bag scanner SPX6040



Top Scanning ability Stable and reliable: each machine had strict high and low temperature test, high humidity test, anti-shock test, MTBF 10000 hours
Automatic sensor roller (Optional)
Upgrade quality solution (Optional)



X-ray Generator



Beam direction Diagonal
Generate angle 80 degree
Anode Voltage 140Kv or (100Kv to 160Kv adjustable)
Anode power 0.4 to 0.5mA
Cooling / Duty Cycle Oil Cooling /100%



Image System

  •  X-ray Sensor: L-Shaped Photodiode Array(multi-energetic) , 12bit Deep
  •  Monitor: High Resolution Color, LCD Accord, 17 inch (19 inch optional)
  •  Image Processing: Edge enhancement, image strengthening, image lightening,reducing darkening, image returning, image retrieval.
  •  Image Grey Level: 4096
  •  Image Processing: 24bit for processing real time
  •  Image storage: Storage 100000 pictures in real time
  •  Zoom: 64 Times Enlarge, Whole screen continuous observation
  •  Assist of detecting organic and inorganic items such as weapons,explosives and narcotics using different colour show



General Specification



Tunnel Size 600(W)*400(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 170kg
Wire Resolution 32AWG to 40AWG
Spatial resolution horizontal:1.3 or 1.0mm, vertical: 1.3 or 1.0mm
Penetration 34 mm steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage <1 μSv/h (at a distance of 5cm from external housing)
Pass rate 720 bags per hour



Installation Data



Operation temperature/Humidity----------0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity--------- -20℃-60℃/20%-95%(non-condensing)
Operation Power------------ 220VAC(±10%)50±3Hz
Power Consumption------------- 1.0 KW (max), 0.7KW(working)
Noise------------ <58db
