| Tunnel Size: | 600(W)*400(H)mm | Conveyor Max Load: | 170kg |
|---|---|---|---|
| Wire Resolution: | 32AWG To 40AWG | Penetration: | 34mm Steel |
| Have In Stock: | 20 Units | Monitor: | High Resolution Color, LCD Accord, 17 Inch |
| Conveyor Speed: | 0.22m/s | OEM: | Accept |
| High Light: | airport screening machines,airport baggage scanner |
||
X-ray Generator
| Beam direction | Diagonal |
| Generate angle | 80 degree |
| Anode Voltage | 140Kv or (100Kv to 160Kv adjustable) |
| Anode power | 0.4 to 0.5mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
Image System
General Specification
| Tunnel Size | 600(W)*400(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 170kg |
| Wire Resolution | 32AWG to 40AWG |
| Spatial resolution | horizontal:1.3 or 1.0mm, vertical: 1.3 or 1.0mm |
| Penetration | 34 mm steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <1 μSv/h (at a distance of 5cm from external housing) |
| Pass rate | 720 bags per hour |
Installation Data
Operation temperature/Humidity----------0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity--------- -20℃-60℃/20%-95%(non-condensing)
Operation Power------------ 220VAC(±10%)50±3Hz
Power Consumption------------- 1.0 KW (max), 0.7KW(working)
Noise------------ <58db
Our service
All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free.
Additionally, our company provides technical support and fittings for life.
After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
If you are caught in some problems when using our products, welcome to contact us at any time.

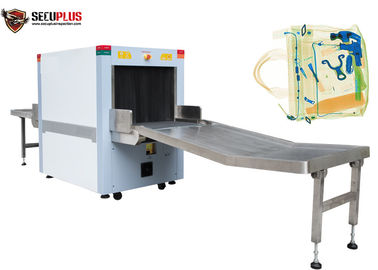

Scan Image
