| Color: | Blue, White | Alarm Way: | Red LED Alarm Light & Long Beep |
|---|---|---|---|
| High Light: | liquid scanner,liquid detection,Liquid Inspection |
||

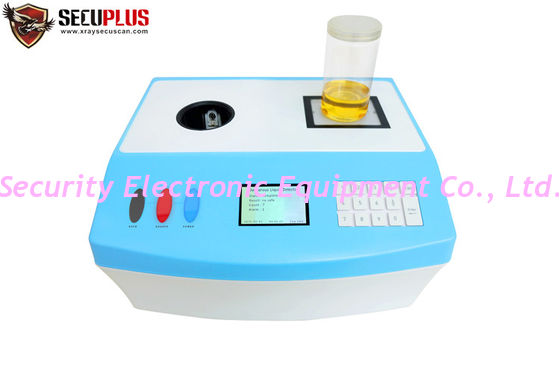

Airport , Train Station Security Bottle Liquid Scanner SPL-1000
Liquid Scanner
Identify chemical composition of liquids, which is sealed in bottle or can.
Control access security of airport, train station, subway, gymnasium, important government office, boarder, and seaport and so on.
No radiation, harmless to people and test sample - Ultra-wideband pulse microwave reflection method & the thermal conductivity technology
Technical specification
|
Limited material of bottle / can |
Iron, aluminum, plastic, glass, porcelain, china, pottery. |
|
Identify dangerous liquid |
More than 30 sorts: Gasoline, kerosene, diesel oil , hydrochloric acid , sulfuric acid , nitric acid , sodium hydroxide , potassium hydroxide , isopropyl ether , petroleum ether, propionaldehyde, benzene, carbon disulfide, hexane, isopropanol, nitromethane, diethylamine , tris the trihalomethanes , ethylene glycol, xylene and other flammable, corrosive liquids |
|
Effective scan distance |
Metal container: 30mm from bottom Other container: 60mm from bottom |
|
Alarm for dangerous liquid |
Red LED alarm light & long beep |
|
Single for safe liquid |
Green LED light & short beep |
|
Power on time |
2 seconds |
|
Identify time |
Metal container: within 8 seconds Other container: within 1 second |
|
Out size |
460*365*245mm (L*W*H) |
|
Weight |
12KG |
|
Temperature of container |
5-35°C |
|
Storage temperature / humidity |
-40°C to 60°C / 5% to 95% humidity |
|
Working temperature / humidity |
15°C to 35°C / 5% to 95% humidity |
|
Power Voltage/ frequency |
AC180-240V(50/60Hz) |
|
Power consumption |
10W |
Certification: Test Report from Inspection Center of State Security
