AT3300 Under Vehicle Surveillance System With CCD line camera for security check

China AT3300 Under Vehicle Surveillance System With CCD line camera for security check supplier
AT3300 Under Vehicle Surveillance System With CCD line camera for security check supplier AT3300 Under Vehicle Surveillance System With CCD line camera for security check supplier AT3300 Under Vehicle Surveillance System With CCD line camera for security check supplier AT3300 Under Vehicle Surveillance System With CCD line camera for security check supplier AT3300 Under Vehicle Surveillance System With CCD line camera for security check supplier

Large Image :  AT3300 Under Vehicle Surveillance System With CCD line camera for security check

Product Details:

Place of Origin: China
Brand Name: VSCAN
Certification: ISO CE
Model Number: AT3300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1 to 25000/set
Packaging Details: wooden pallet
Delivery Time: within 10 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Input: 2 Channels Induction Coil Output: 1 Channel Switch Type 12VDC
Camera: Sensor: Line Scans CCD Resolution: 5000*2048 Pixels
Have In Stock: Yes Illumination: LED
Size: 1200mm X 350mm


AT3300 Under Vehicle Surveillance System With CCD line camera for security check

VSCAN Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.

Highlight:
Special air-drying circulation system
With intelligent alarm
Weather proof scanning unit(IP 68)
Anti-fog function
To connect anti-collision system, barrier,etc,
To compatibly packing management solution


Features:

  1. Multi entrance management model, management, and statistics of entering and exiting vehicles
  2. Auto digital line scan, high-resolution undercarriage imaging.
  3. High automation, easy to be used
  4. Applicable to variety of vehicles, wide vision.
  5. Test will be completed during the vehicle maneuvers
  6. without stopping, adapted to different speed.
  7. Undercarriage image can be stored, retrieved, searched or compared with other images.
  8. Avariety of image processing methods: enlarge, stretching and cutting.
  9. (Optional)ALPR-Automatic License Plate Recognition and RFID technology. associative storage of various
  10. vehicle information and undercarriage images.

Embedded Screening Part:

CameraSensor: line scans CCD
Resolution5000*2048 pixels
Power Supply24VDC, 3A
  • Illumination: LED
  • Power Supply: 24VDC,150W
  • Size: 1200mm x 350mm
  • Operating Temperature Range: -20 degree to +70 degree

Controller:
● Input: 2 channels induction coil
● Output: 1 Channel switch type 12VDC
● Communication port: RS485, Ethernet(Optional)
● Operating Temperature: -10℃ to 55℃


System Host:

BrandGrantech (SYM76941VGGA)
CPUIntel(R)Celeron(R)CPU
Memory2G( optional 4G)



  • E3400@2.6GHz 2.59 GHz
  • Graphics:512M
  • Hard Disk: SATA2 Hard Disk 500G
  • Dual LAN (At least one Intel Gigabit)
  • USB2.0 (Up to 2 pieces)
  • Monitor: 22 inch LCD, resolution up to 1920*1080
  • Scene Video Record: 4 channel, Compression algorithm of scene video: H264

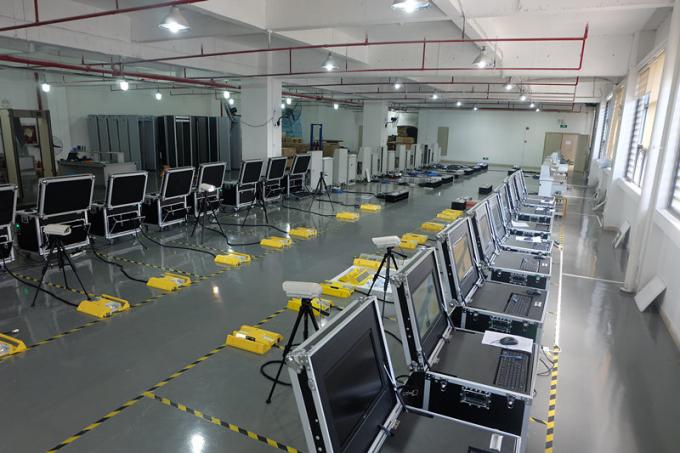

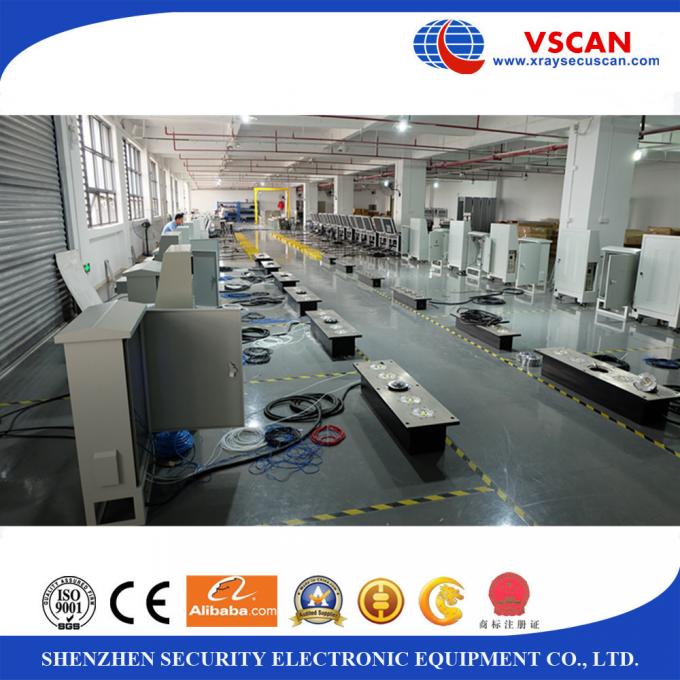

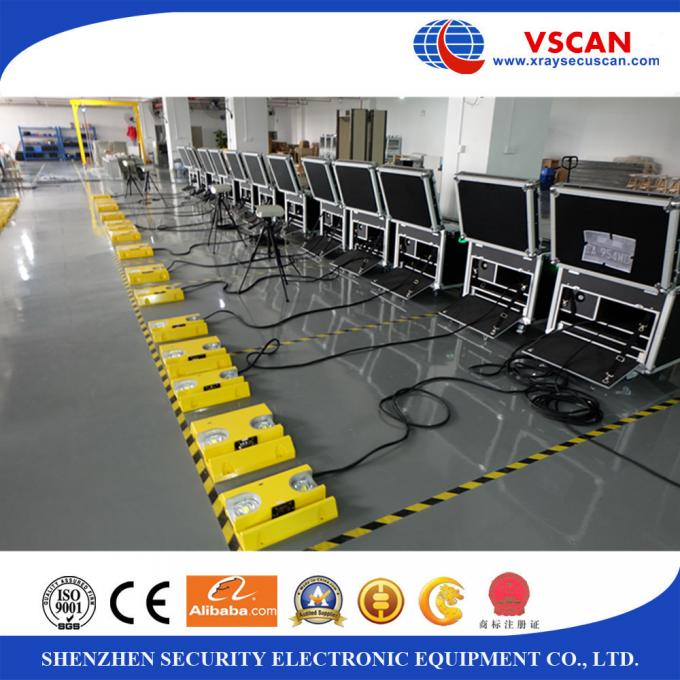

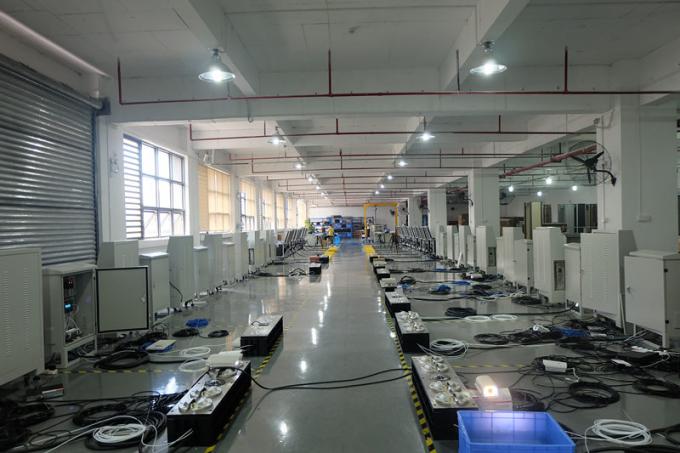

Work shop:
AT3300 Under Vehicle Surveillance System With CCD line camera for security checkAT3300 Under Vehicle Surveillance System With CCD line camera for security check
AT3300 Under Vehicle Surveillance System With CCD line camera for security checkAT3300 Under Vehicle Surveillance System With CCD line camera for security check
