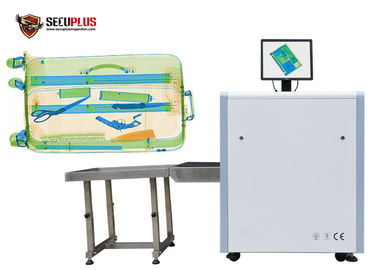

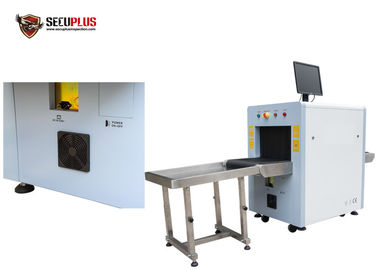

Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection

Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection
Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection

Large Image :  Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO, FCC, ROHS
Model Number: SPX5030C
Brand: OEM accepted
Business Type: Manufacturer
Conveyor Speed: 0.22m/s
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Within 7 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/year
Detailed Product Description
Tunnel Size: 500mm*300mm Conveyor Max Load: 150KG
Penetration: 30-32mm Steel Film Safety: Guarantee ISO1600 Film
Have In Stock: 30 Units Certificate: CE ISO
Baggage Counter: Yes Automic Scanning: Yes
Bidirectional Scanning: Yes OEM: Accept
High Light:

airport screening machines

,

airport baggage scanner

Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection



Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection 0

General Specification



Tunnel Size:

500(W)*300H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

150kgs

Wire Resolution:

32AWG to 38 AWG

Spatial resolution:

horizontal:1.3 or 1.0mm,
vertical: 1.3 or 1.0mm

Penetration:

30-32mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<1μGy/h (at a distance of 5cm From external housing)

Pass rate:  720 bags per hour

Beam direction:

Diagonal

Generate angle:

80 degree

Anode Voltage:

140Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution LCD Accord, 17 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,

reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 768 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 100000 pictures in real time

 Zoom:

64 Times Enlarge, Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1 KW (max)

Noise:

<60db

  1. The SECUPLUS X Ray Baggage Scanner offers another way to see inside of handbags,briefcases. It popular accepted as a nonintrusively optimize security measure .
  2. SPX5030C give you innovative and costeffective solutions. It¡s a great help to exclude the threats and contraband.
  3. SPX5030C is friendly operation system, and easy to maintenance .
  4. SECUPLUS is together with you to antiterrorism

Applications:

01. railway station
02. Transport terminals,
03. Buildings,
04. Factories (to find needle in clothing,  shoes,  bags),
05. Courthouses,
06. Embassies,
07. Military installations,
08. Prisons,
09. Hotels,
10. Schools ,
11. Convention centers,
12. Security checkpoints
13. Special events location



Our Work Shop

Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection 1



Detailed Product Description:

  • SECUPLUS X RAY SYSTEM offers a modern technology to secure entry checkpoints for important locations like airports, transport terminals, buildings, and so on.
  • Our systems screen baggage and parcel, to detect contraband, weapons, dangerous and illegal items. Model AT100100 easily accommodates the inspection of big size baggage and parcels.
  • SECUPLUS X RAY SYSTEM is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is easy to installation and maintenance. Over 100 systems per month installed in china and abroad.
  • SECUPLUS branded products received certifications of CE, Test report from China Ministry of Public Security and Copyright for image Operation software SPHOTO.
  • As a manufacturer SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LTD has gotten the certificate ISO CE ROHS FCC certified company. We have Radiation Safety license from China Environmental Protection Administration
  • SECUPLUS X RAY SYSTEM is a professional security solution provider, a wise choice to governments and partners.

Company Profile



A good supplier will save you money and be free from trouble.
Quality means a lot for a security products wholesaler like you.
To be safe from customer complaints, you may need a very reliable supplier to count on.
SECUPLUS has already 13 years professional experience in
  • X ray Baggage Scanner
  • Walk Through Metal Detector
  • Under Vehicle Surveillance System
  • Hand Held Metal Detector
  • Explosives Trace Detection
  • Dangerous Liquid Scanner
We would very much welcom your enquiry, surely you will get our best price.

Our service
  1. All products purchased in our company are guaranteed to keep in good repair for one year.
  2. If quality problems happen in guarantee period, our company will maintain for free.
  3. Additionally, our company provides technical support and fittings for life.
  4. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  5. If you are caught in some problems when using our products, welcome to contact us at any time.

Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection 2

Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection 3

Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection 4

Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection 5

Small size X Ray baggage scanner SPX5030C security checking machine Parcel Inspection 6
