80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle

Good quality Baggage And Parcel Inspection for sales
Good quality Baggage And Parcel Inspection for sales
I'm Online Chat Now

80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle

China 80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle supplier
80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle supplier 80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle supplier 80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle supplier 80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle supplier 80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle supplier

Large Image :  80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle

Product Details:

Place of Origin: China
Brand Name: VSCAN
Certification: CE
Model Number: AT3300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1~ 8888 per set
Packaging Details: plywood packages
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 set per months
Contact Now
Detailed Product Description
Weather Proof Level: IP68 View Angle: 170 Degree
Auxiliary Light: 80W ,LED Scanning Image: Complete Whole Image
Screen: 22inch LCD

80W Auxiliary LED Under Vehicle Scanning System,Vehicle License Recognize Camera

Model: AT3300



80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle

80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle

Technic specification of UVSS:



System host:

Brand: Grantech (UFO6377H-SP1-953)

CPU: Intel® Core(TM) 2 Duo CPU

P8600@2.4GHz or higher

Memory:2G( optional 4G)

Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine

Hard Disk:SATA2 Hard Disk 500G

Dual LAN (At least one Intel Gigabit)

USB2.0 (Up to 4 pieces)

Monitor: 22inch LCD, resolution up to 1920*1080

Scene Video Record: 4 channel, Compression algorithm of scene video: H264



80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle

Embedded screening parts:

Camera: Sensor: line scan CCD

Resolution: 5000*2048 pixels

Power Supply: 24VDC, 3A

Illumination: LED, Power Supply: 24VDC,150W

Size: 1200mm x 350mm

-25 degree to +70 degree



80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle

Controller:

Input: 2 channels induction coil

Output: 1 Channel switch type 12VDC

Communication port: RS485, Ethernet(Optional)

Operating Temperature: -10℃ to 55℃

80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle

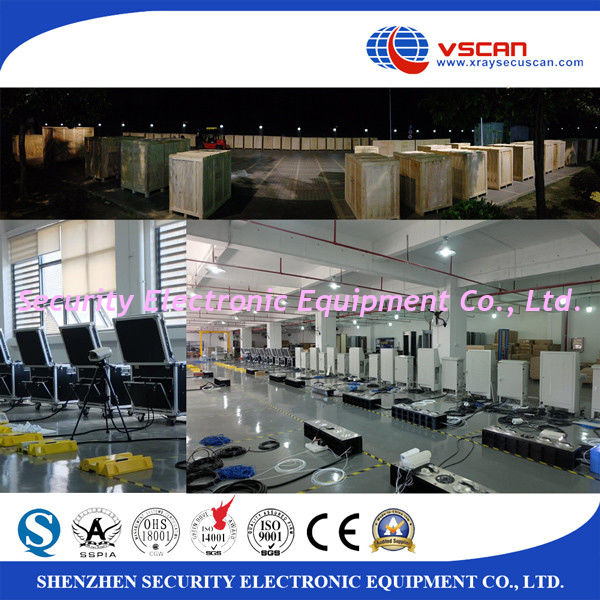

Company profile:



SEE(Security Electronic Equipment Co., Limited) have nearly forty thousand square meters of production base to produce x-ray baggage 500 sets of x-ray baggage scanner, 500 sets of liquid scanner, 2000 sets of walk through metal detector per month. SEE developed a series of quality standards higher than international standards, we use the core components of well-known brands and supporting devices from outsourcing to produce and assemble by our professional workers. Each device have passed vibration, heat and radiation leak testing and a series of reliability testing. SEE have a strict national standards before leaving the factory.



80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle

80W Auxiliary LED Under Vehicle Surveillance System With 170 Degree View Angle



Wide range of products for your market we produced:

Description Model NO. Application
X-ray baggage Scanner AT5030/AT6040/AT6550/AT8065/AT10080/AT100100 Airport,custom,Hotel
Walk Through Metal Detector AT-IIIA,AT-IIIC, AT-IIID,AT300A,AT300B,AT300C,AT300S Border,exhibition,government
Bottle Liquid Scanner AT1000, AT1800, AT1500 Metro,station
Under Vehicle Surveillance System AT3300, AT3000 Prision, Jail
Explosive Trace Detector HD300, HD600 Military base



After-sales service:

1. Lifetime technic support online

2. Free trainning in our factory

3. Site installation guide in charge

4. 12 months free spare parts

5. Online support by email,telephone,skype,etc
