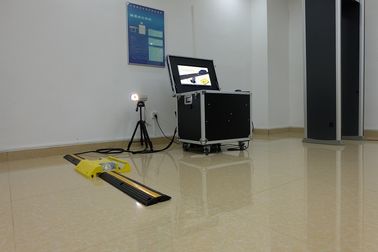

Under Vehicle Surveillance System / 80 Watt Vehicle Scanner System 50-60HZ Frequency

Under Vehicle Surveillance System / 80 Watt Vehicle Scanner System 50-60HZ Frequency
Under Vehicle Surveillance System / 80 Watt Vehicle Scanner System 50-60HZ Frequency Under Vehicle Surveillance System / 80 Watt Vehicle Scanner System 50-60HZ Frequency Under Vehicle Surveillance System / 80 Watt Vehicle Scanner System 50-60HZ Frequency Under Vehicle Surveillance System / 80 Watt Vehicle Scanner System 50-60HZ Frequency

Large Image :  Under Vehicle Surveillance System / 80 Watt Vehicle Scanner System 50-60HZ Frequency

Product Details:
Place of Origin: China
Brand Name: VSCAN
Certification: CE
Model Number: AT3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood packages
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 set per months
Detailed Product Description
Weather Proof Level: IP68 View Angle: 170 Degree
Auxiliary Light: 80W ,LED Scanning Image: Complete Whole Image
Screen: 22inch LCD
High Light:

under vehicle inspection systems

,

under vehicle monintor machine

170 degree view Under Vehicle Inspection Security Systems , car chassis surveillance

Model: AT3000

Mobile system that can fast deployment in 5 minutes









Technic specification of UVSS:



System host:

Brand: Grantech (UFO6377H-SP1-953)

CPU: Intel® Core(TM) 2 Duo CPU

P8600@2.4GHz or higher

Memory:2G( optional 4G)

Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine

Hard Disk:SATA2 Hard Disk 500G

Dual LAN (At least one Intel Gigabit)

USB2.0 (Up to 4 pieces)

Monitor: 22inch LCD, resolution up to 1920*1080

Scene Video Record: 4 channel, Compression algorithm of scene video: H264







Technical parameters:

  • Vertical resolution of the image: 5000*2048 pixels
  • Check the width viewing angle: < 4 meters
  • Speed of vehicle:

< 30km/h with ALPR(Automatic Licence Plate Recognition)

70km/h without ALPR(Automatic Licence Plate Recognition)

  • Effective Field of View(FOV):less than 170°
  • Auxiliary light: 100W
  • Weight capacity: <20T
  • Water-proof grade: Ip68
  • Scanning device weight: 24KG
  • Scanning device volume: 450mm×400mm×88mm
  • Communication interface: RS232/RS422
  • Operating Temperature: -10℃ to 55℃
  • Storage temperature: -40℃ to +75℃
  • Operating voltage: 110-240V AC, 50-60HZ

Company profile:

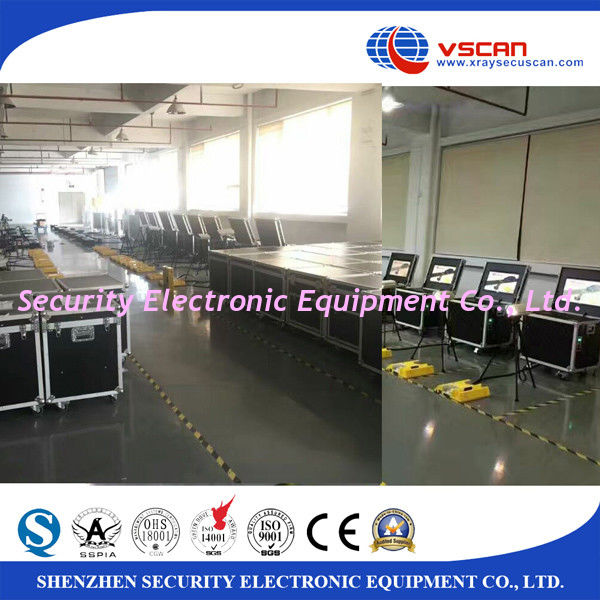

SEE(Security Electronic Equipment Co., Limited) have nearly forty thousand square meters of production base to produce x-ray baggage 500 sets of x-ray baggage scanner, 500 sets of liquid scanner, 2000 sets of walk through metal detector per month. SEE developed a series of quality standards higher than international standards, we use the core components of well-known brands and supporting devices from outsourcing to produce and assemble by our professional workers. Each device have passed vibration, heat and radiation leak testing and a series of reliability testing. SEE have a strict national standards before leaving the factory.



Under Vehicle Surveillance System / 80 Watt Vehicle Scanner System 50-60HZ Frequency 0

Under Vehicle Surveillance System / 80 Watt Vehicle Scanner System 50-60HZ Frequency 1Under Vehicle Surveillance System / 80 Watt Vehicle Scanner System 50-60HZ Frequency 2

Wide range of products for your market we produced:

Description Model NO. Application
X-ray baggage Scanner AT5030/AT6040/AT6550/AT8065/AT10080/AT100100 Airport,custom,Hotel
Walk Through Metal Detector AT-IIIA,AT-IIIC, AT-IIID,AT300A,AT300B,AT300C,AT300S Border,exhibition,government
Bottle Liquid Scanner AT1000, AT1800, AT1500 Metro,station
Under Vehicle Surveillance System AT3300, AT3000 Prision, Jail
Explosive Trace Detector HD300, HD600

Military base
