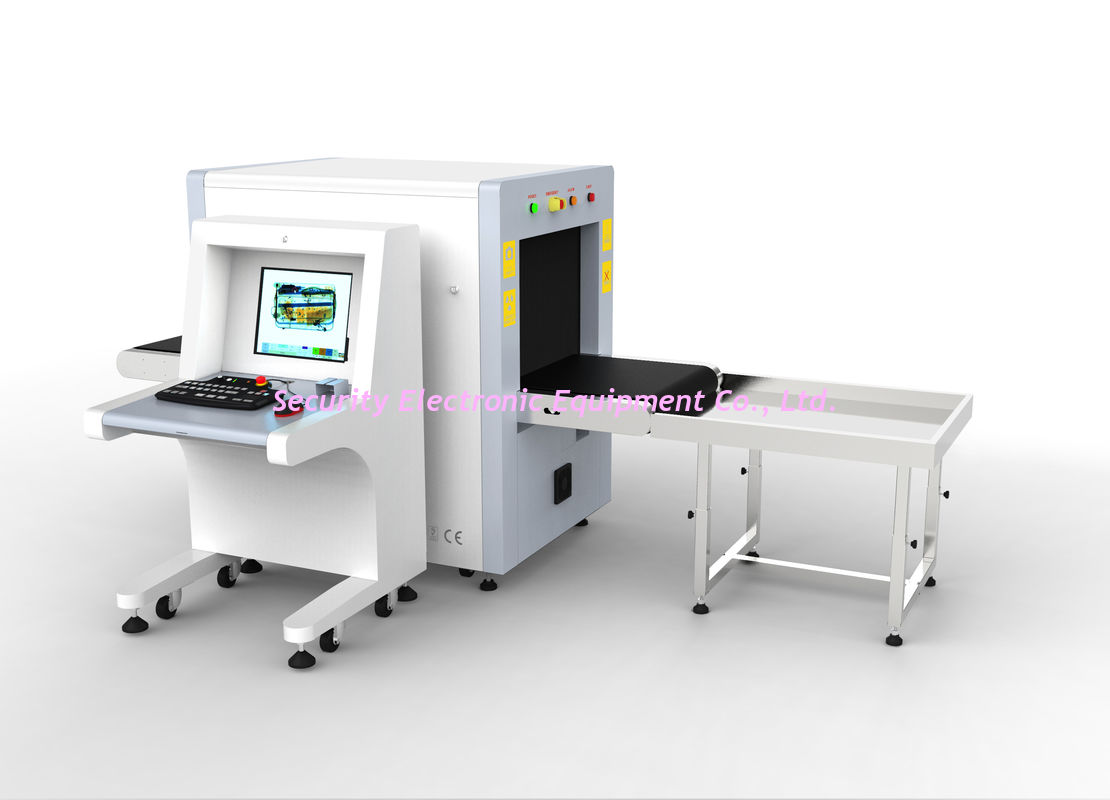

Large Image :  Screening 0.2m / s Security Inspection Equipment For Courts / Fm Management

Product Details:
Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO9001, India-AERB, US.FDA
Model Number: AT6550
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: 7 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Detailed Product Description
Conveyor Load: 170kg Tunnel Size: 600*500 Mm
Belt Speed: 0.2m/s Software: English, Russian, French, Spanish
Computer System: Windows XP Or 7 CPU: Core I5
Detector Board: UK Import Technical Traning: 7 Days
Installation: Local Engineer Support Warranty: 18 Months
High Light:

security screening equipment

,

airport baggage scanner



Screening 0.2m / s Security Inspection Equipment For Courts / Fm Management



  General Specification:



  Tunnel Size:   650(W)*500(H)mm
  Conveyor Speed:    0.22m/s
  Conveyor Max Load:     170kg
  Wire Resolution:    40AWG
 Spatial resolution:  horizontal:1.3 or 1.0mm,  vertical: 1.3 or 1.0mm
  Penetration:    30 to 40mm Steel
 Film Safety:    Guarantee ISO1600 Film
  X-ray Leakage:   <1 μSv/h (at a distance of 5cm  from external housing)
  Pass rate:   720 bags per hour



 Installation Data:



 Operation temperature/Humidity:

  0℃-45℃/20%-95%(non-condensing)
 Storage Temperature/Humidity:   -20℃-60℃/20%-95%(non-condensing)
 Operation Power:   187~240VAC, 50/60Hz
 Power Consumption:    1.0 KW (max), 0.7KW(working)
  Noise:   <58db



X-ray Generator:



  Beam direction: Diagonal    Diagonal

  Generate angle:

  80 degree
  Anode Voltage:   140Kv or (100Kv to 160Kv adjustable)
  Anode power:    0.4 to 0.5mA
   Cooling / Duty Cycle:    Oil Cooling /100%



Image System



  X-ray Sensor:    L-Shaped Photodiode Array  (multi-energetic) , 12bit Deep
  Monitor:    High Resolution Color, LCD Accord, 17 inch
   (19 inch optional)
Image processing:

 Edge enhancement, image strengthening, image lightening , reducing darkening, image returning,image, retrieval.

Image Grey Level:   4096
Image Processing:   24bit for processing real time
Image storage:   Storage 100,000 pictures in real time
Zoom:   max 64 Times Enlarge, Whole screen continuous observation

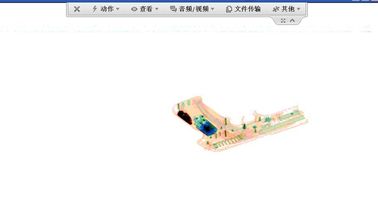

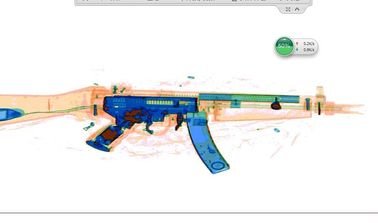

 Assist of detecting organic and inorganic items such as
weapons, explosives and narcotics using different colour show.

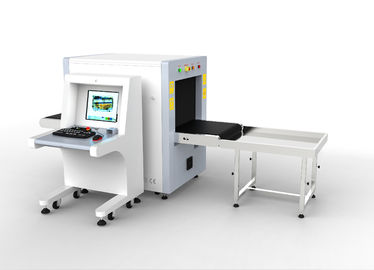

 New appearance for high performance AT6550B:



Screening 0.2m / s Security Inspection Equipment For Courts / Fm Management 0



Company Information"



We are the factory of security equipment with 8 years experience in China, which specialized on

  • X Ray Baggage Inspection Scanner ,
  • Under Vehicle Inspection System
  • Hand Held Metal Detector,
  • Walk Through Metal Detector ,
  • bottle liquid scanner,
  • Explosive Trace Detctor

Screening 0.2m / s Security Inspection Equipment For Courts / Fm Management 1
