High quality fixed under vehicle inspection system used in airport manufacturer

China High quality fixed under vehicle inspection system used in airport manufacturer supplier
High quality fixed under vehicle inspection system used in airport manufacturer supplier High quality fixed under vehicle inspection system used in airport manufacturer supplier High quality fixed under vehicle inspection system used in airport manufacturer supplier

Large Image :  High quality fixed under vehicle inspection system used in airport manufacturer

Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO FCC ROHS
Model Number: SPV3300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1 to 12000per set
Packaging Details: Plywood pallet
Delivery Time: within 10 working days
Payment Terms: Western Union
Supply Ability: 300 sets per months
Contact Now
Detailed Product Description
Usage: Under Vehicle Scanner Have In Stock: More Than 20 Units
Camera Sensor: Line Scans CCD Display: 22 Inch LCD
Waterproof Grade: IP68 Bearing Weight: > 30T
ALPR: Optional Scanner Size: 1200mm * 350mm

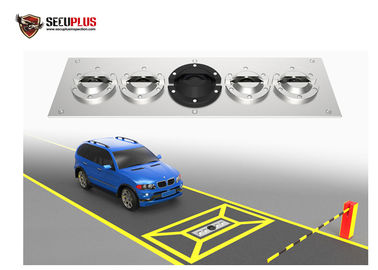

High quality fixed under vehicle inspection system used in airport manufacturer

SECUPLUS Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.



UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.

Features
Multi entrance management model, management, and statistics of entering and exiting vehicles
Auto digital line scan, high-resolution undercarriage imaging.
High automation, easy to be used Applicable to variety of vehicles, wide vision.
Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
Undercarriage image can be stored, retrieved, searched or compared with other images.
Avariety of image processing methods: enlarge, stretching and cutting.
ALPR-Automatic License Plate Recognition (Optional) and RFID technology. associative storage of various
vehicle information and undercarriage images.

Embedded Screening Part
1. Camera: Sensor: line scans CCD,
2. Resolution: 5000*2048 pixels
3. Power Supply: 24VDC, 3A
4. Illumination: LED
5. Power Supply: 24VDC,150W
6. Scanner Size: 1200mm x 350mm
7. Operating Temperature Range: -20 degree to +70 degree

System Host
1. Brand: Grantech (SYM76941VGGA)
2. CPU: Intel(R)Celeron(R)CPU E3400@2.6GHz 2.59 GHz
3. Memory: 2G( optional 4G)
4. Graphics: 512M
5. Hard Disk:SATA2 Hard Disk 500G
6. Dual LAN (At least one Intel Gigabit)
7. USB2.0 (Up to 2 pieces)
8. Monitor: 22inch LCD, resolution up to 1920*1080
9. Scene Video Record: 4 channel, Compression algorithm of scene video: H264

Controller
1. Input: 2 channels induction coil
2. Output: 1 Channel switch type 12VDC
3. Communication port: RS485, Ethernet(Optional)
4. Operating Temperature: -10ºC to 55ºC

Packaging & Shipping

High quality fixed under vehicle inspection system used in airport manufacturer

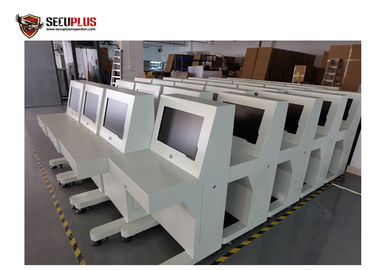

Our Factory

High quality fixed under vehicle inspection system used in airport manufacturer



Description Model Characteristic
Mobile Under Vehicle Inspection system SPV3000 Easy install and use where you want
Fixed Under Vehicle Inspection system SPV3300 stable performance and super waterproof IP68
Under Vehicle Round Search Mirror SPV915 Light weight, clear image with flashlight
Under Vehicle Square Search Mirror SPV916 Clear image with LED lights


About Us


Security Electronic Equipment Co., Limited, is a high-tech company integrating R&D, manufacturing, engineering,training and services. We run SECU SCAN as the top brand. As a reliable supplier, we continue produce good quality products, give professional technical support.


SECUPLUS gradually establishes a very comprehensive product range covering X-ray machines with different tunnel size, Walk through Metal Detector, Hand-held Metal Detector, Dangerous Liquid Scanner, Explosive/Narcotics Trace Detector, Under Vehicle System and etc.


SECUPLUS security systems have been used in different countries and regions in airports, seaports,customs,railway stations, long-distance bus stations, jail houses, courts yard, and many other security-related applications.


With ISO9001 management system, SECUPLUS always keeps running with high efficiency by balancing development on her product R&D, manufacturing, quality control and service according to ISO strict international standard requirements.


With global marketing strategy, SECUPLUS provides innovative and dependable security solutions to our global customers and makes every effort to continually exceed our customers' expectations.


Life is precious SECUPLUS puts its efforts on public security solution.

Our Service
Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support
