1m Wider Inspection Size Door Frame Metal Detector Gate Big Body Person Security Inspection

Good quality Baggage And Parcel Inspection for sales
Good quality Baggage And Parcel Inspection for sales
I'm Online Chat Now

1m Wider Inspection Size Door Frame Metal Detector Gate Big Body Person Security Inspection

China 1m Wider Inspection Size Door Frame Metal Detector Gate Big Body Person Security Inspection supplier
1m Wider Inspection Size Door Frame Metal Detector Gate Big Body Person Security Inspection supplier 1m Wider Inspection Size Door Frame Metal Detector Gate Big Body Person Security Inspection supplier 1m Wider Inspection Size Door Frame Metal Detector Gate Big Body Person Security Inspection supplier 1m Wider Inspection Size Door Frame Metal Detector Gate Big Body Person Security Inspection supplier

Large Image :  1m Wider Inspection Size Door Frame Metal Detector Gate Big Body Person Security Inspection

Product Details:

Place of Origin: CHINA
Brand Name: SECUSCAN
Certification: CE,ISO9001
Model Number: AT300B

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD 100~1000 per unit
Packaging Details: wooden pallet
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 300 units per month
Contact Now
Detailed Product Description
Feature: Perfect Weather-proofing Design Material: Aluminum Case
Induction Loop: Pure Copper Zones: 6,12, 18 Zones
Alarm: Audio And LED Alarm Warranty: 1 Year
Technical Training: Providing Sensitivity: Detect A Paper Clip

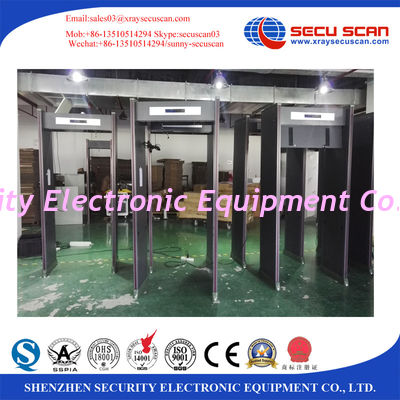

1m wider inspection size door frame metal detector gate for big body person security inspection



Easy to Install, Simple to Operate



Technical specification:


Electric current: AC100V~240V   50/60Hz
Power: 10W
Work environment: -20°C~+45°C
Gross Weight: 40kg
Outer frame: 2220mm (h) x 820mm (w) X 610mm (d)
Inner frame: 2000mm (h) X 700mm (w) X 610mm (d)



Characteristic:


6/12/18 Pinpoint zones to precisely identify multiple target locations from head to toe.
Advanced broadband detection technology: can detect ferrous and Non-ferrous articles.
Sensitivity adjustable from Level 0 o 299
1). High: Can detect a pin
2. Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
Shock proof to avoid false alarm
Sound and light alarm
Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
Tamper-Proof: operate program is protected by password.
Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources
Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
Harmless to pregnant woman and heart pacemaker.
Two LED light bars on both door panels: gives alarm corresponding to the height or human body.

Superior Versatility: Settings designed for airports, courthouse, Sports meeting, Casino, Electronics factory and Hardware factory.

Networking: Remote ability with Desktop Remote Control. ( Optional )



Standard:


In accordance with: EN60950, WN50081-1, And EN50082-1
CE Certificate; ISO 9001:2000 Certificate, National standard
