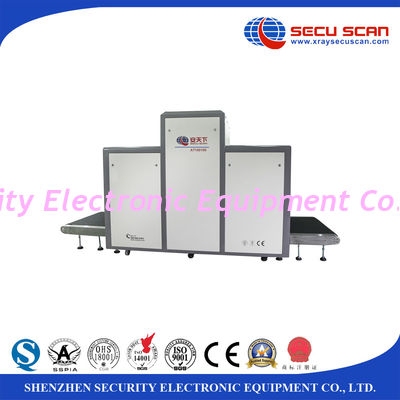

Large Size baggage scanners at an airport with tunnel size 100*100cm

China Large Size baggage scanners at an airport with tunnel size 100*100cm supplier
Large Size baggage scanners at an airport with tunnel size 100*100cm supplier Large Size baggage scanners at an airport with tunnel size 100*100cm supplier Large Size baggage scanners at an airport with tunnel size 100*100cm supplier Large Size baggage scanners at an airport with tunnel size 100*100cm supplier Large Size baggage scanners at an airport with tunnel size 100*100cm supplier

Large Image :  Large Size baggage scanners at an airport with tunnel size 100*100cm

Product Details:

Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT100100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD17800-USD20000
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Conveyor Max Weight: 200kg Penetration: 32-34mm Steel
Operatoin: User Maual Attached With Machine OEM/ODM: Accepted
Tunnel Size: 1000(W)*800(H)mm Warranty: One Year Free Spare Parts, Life Time Technic Support
Installation: Very Easy, Only A Few Wires Software Interface: Support Multi Language
Training: Free Of Cost At The Factory Delivery: 5-7 Days



Large Size baggage scanners at an airport with tunnel size 100*100cm





Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.



Specification





X Ray Generator:



Beam direction Downward
Beam angle 80 degree
Anode voltage 160kv
Anode power 0.5mA
Cooling / Duty Cycle Oil Cooling /100%





General specification:



Tunnel Size                                    1000(W)*1000(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 200kg
Dose per Inspection <1.5Gy/h
Resolution < 0.0787mm Copper Wire
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm
Vertical: Dial1.0mm
Penetrate resolution 32-34mm
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)





Packing and Shipment:





Packing details

carton packing

1 set/ctn

Packing Size: (L)2890*(W)1460*(H)2150mm

Gross Weight:1370kg

Payment terms

T/T, Western Union, Cash,L/C

Shipping methods

By air   (5-7days, most expensive)

By express (3-7days, more expensive)

By sea    (15-28days, cheapest)







X Ray Image:





X-ray Sensor                       L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Image Processing Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zoom 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy Switch from high energy to low energy
Adavantage Assist to detect drug and explosive powder





Installation Data:



  1. Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
  2. Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
  3. Operation Power: 220VAC(± 10%)50± 3Hz
  4. Power Consumption: 1.0 KW (max), 0.7KW(working)
  5. Noise: <58dB.



Computer Specs:

  1. CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB
  2. Motherboards: Intel G41/Nvidia chip set, 7025 or better on OEM motherboard
  3. Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1 and 1PCI BX press *16
  4. Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots.
  5. Hard Disk drive: 500GB 7200 rpm serial ATA HDD.
  6. Mouse: Optical



Advantages:

  • We have 20000 square meter factory, 4 floor, 260 employess and 5 R&D team
  • We have passed ISO9001, 16001, OHSMS18001, Health Inspection
  • We have full security product line which can meet your different needs
  • We never stop researching and will have one or two new product each year
  • We listen to our customer and solve their problems





Applications:







End user Recommend X Ray Baggage Scanner model NO.
Airports, Transport terminals AT6040; AT6550; AT10080; AT100100
Factories (to find needle in clothing,  shoes,  bags), AT5030; AT6040; AT6550
Courthouses, Embassies, Buildings AT5030; AT6040; AT6550
Military installations AT5030;AT6040; AT6550; AT8065; AT100100
Prisons, Hotels, Schools, Convention centers  AT5030; AT6040; AT6550; AT10080
Security checkpoints,Special events location  AT5030; AT6040; AT6550; AT8065; AT10080
