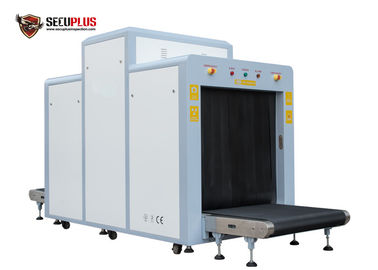

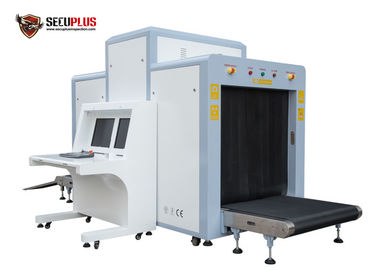

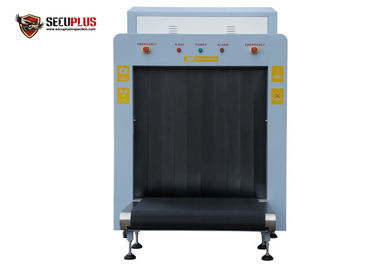

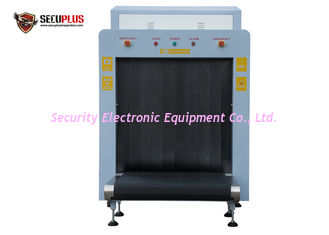

SPX100100 X Ray Baggage Scanner X - Ray Detection Equipment High Performance

SPX100100 X Ray Baggage Scanner X - Ray Detection Equipment High Performance
SPX100100 X Ray Baggage Scanner X - Ray Detection Equipment High Performance SPX100100 X Ray Baggage Scanner X - Ray Detection Equipment High Performance SPX100100 X Ray Baggage Scanner X - Ray Detection Equipment High Performance

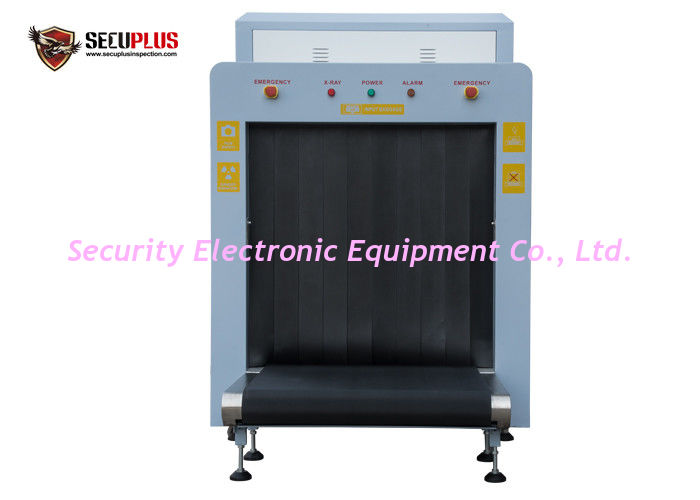

Large Image :  SPX100100 X Ray Baggage Scanner X - Ray Detection Equipment High Performance

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO, FCC, ROHS
Model Number: SPX100100
Port: Shenzhen
OEM: accepted
have in stock: yes
Business Type: Manufacturer
lead time: 1 to 3 weeks
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/year
Detailed Product Description
Tunnel Size: 1000mm*1000mm Conveyor Max Load: 200KG
Penetration: 28-34mm Anode Voltage: 140KV
Tunnel Size: 1000(W)*1000(H)mm Certificates: CE ISO
High Light:

security screening equipment

,

airport baggage scanner



SPX100100 X Ray Baggage Scanner X - Ray Detection Equipment High Performance





Special for big size baggage inspection and security check





General Specification





Tunnel Size:

1000(W)*1000(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

200kgs

Wire Resolution:

32AWG to 38 AWG

Spatial resolution:

horizontal:1.3 or 1.0mm,
vertical: 1.3 or 1.0mm

Penetration:

28 to 34 mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<1μGy/h (at a distance of 5cm From external housing)

Pass rate:  720 bags per hour

Beam direction:

Diagonal

Generate angle:

80 degree

Anode Voltage:

140Kv

Anode power:

0.4 to 0.5mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution Color, LCD Accord, 19 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,

reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 60000 pictures in real time

 Zoom:

max 16 Times Enlarge, Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1.8 KW (max),  0.3KW(working)

Noise:

<58db





Image System :


Technical Principle: Dual-energy X-ray Imaging; L Shaped Array,
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17inch
Image Display: High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number
signature
High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive: Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process: 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536



Operating Environment:


Operation temperature/Humidity: 5℃~+40℃/10%-90%(non-condensing)
Storage Temperature/Humidity: -40℃to 60℃/ 5%-95%(non-condensing)
Operation Power: 220VAC(+10%~-15%50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.3KW (max), 1KW(working)
Noise: <58db
Dimensions (L×W×H) :3638.5mm x1295mm x1916.5 mm
Device Weight: 900Kg
G. Weight: 1370Kg
Packing Volume: 10.63CBM



Computer Character:


CASE: IPC7132
Power: 250W/ATX
Main board: AIMB 501G2
CPU: G1610 2.6G
Storage: 2GB 1600MHz DDR3 Innodisk
Hard Disk: SEAGATE 500G 3.5”



X-ray Generator:



Anode Voltage: 140kv
Anode power: 0.2-1.2mA
Generate angle: 80 degree
Brand: own made
Generate direct: from top to bottom
Cooling / Duty Cycle: Oil Cooling /100%



Other Characters:



Detect PCB board: UK brand Sensortech
Extension Rollers: customize size length
Support card reader operator access
CD DVR/RW unit: Optional
Computer system: XP system
Monitor: 17 inch DELL
