X ray baggage scanner SPX6550 x-ray scanner for Government Hotel school prison Use

X ray baggage scanner SPX6550 x-ray scanner for Government Hotel school prison Use
X ray baggage scanner SPX6550 x-ray scanner for Government Hotel school prison Use X ray baggage scanner SPX6550 x-ray scanner for Government Hotel school prison Use X ray baggage scanner SPX6550 x-ray scanner for Government Hotel school prison Use

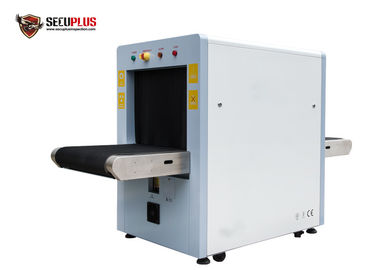

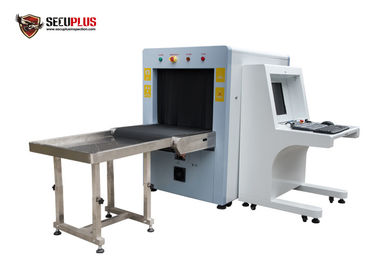

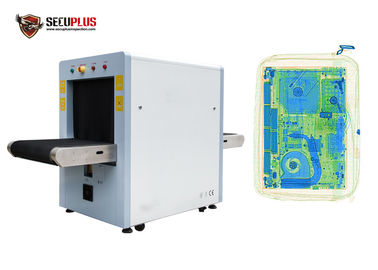

Large Image :  X ray baggage scanner SPX6550 x-ray scanner for Government Hotel school prison Use

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO FCC ROHS
Model Number: SPX6550
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: within 5 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets month
Detailed Product Description
Tunnel Size: 650(W)*500(H)mm Conveyor Max Load: 170kg
Anode Voltage: 140Kv Penetration: 30mm To 40mm Steel
Have In Stock: Yes OEM: Accept
High Light:

airport screening machines

,

security screening equipment

X ray baggage scanner SPX6550 x-ray scanner for Government Hotel school prison Use



General Specification :


Tunnel Size: 650mm×500mm
Conveyor Speed: 0.22m/s
Conveyor height : 695mm
Conveyor Max Load:170kg
X ray Dose per inspection <1.14μSv
Wire Resolution: 40 AWG typical
Penetration Resolution : 30AWG ,the wire visible below 15.9mm thick aluminum
Film Safety :Guarantee ASA/ISO1600 Film



Spatial resolution Level dia1.0mm, Vertical: dia1.0m
 Penetrate resolution 24WG to 34AWG
Penetration 30mm to 32mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.15μGy/h (at a distance of 5cm From external housing)




Image System :


Technical Principle--------Dual-energy X-ray Imaging; L Shaped Array,
X-ray Sensor--------L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor--------High Resolution Color, LCD Accord, 17inch
Image Display--------High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement--------1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall--------All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number
signature
High Density Region Alarm--------Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection--------Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive--------Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions--------Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications--------Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process--------24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536



Operating Environment:


Operation temperature/Humidity-------  -5℃-40℃/10%-95%(non-condensing)
Storage Temperature/Humidity--------  -20℃to 60℃/ 5%-95%(non-condensing)
Operation Power--------220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption--------1.0KW (max), 0.7KW(working)
Noise---------<58db
Dimensions (L×W×H)--------2195mm x902mm x1362mm
Device Weight--------465Kg
G.Weight---------700Kg
Packing Volume--------5.54CBM





X-ray Generator:



Anode Voltage: 140kv
Anode power: 0.35mA
Generate angle: 80 degree upward
Brand: own made
Generate direct: from top to bottom
Cooling / Duty Cycle: Oil Cooling /100%



Other Characters:



Detect PCB board: UK brand Sensortech
Extension Rollers: customize size length
Support card reader operator access
CD DVR/RW unit: Optional
Computer system: XP system
Monitor: 17 inch DELL monitor



Our Work Shop

X ray baggage scanner SPX6550 x-ray scanner for Government Hotel school prison Use 0X ray baggage scanner SPX6550 x-ray scanner for Government Hotel school prison Use 1
