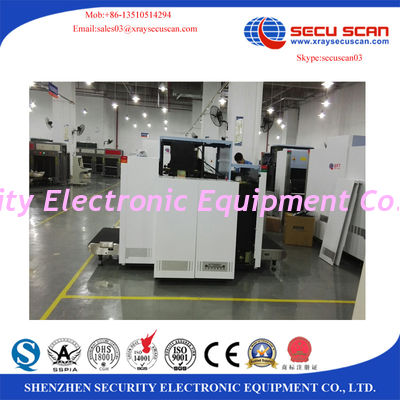

 SECUSCAN AT100800D is a dual-view multi-energy x ray security inspection system

 equipped with state-of-the-art x ray imaging technology. It provides high resolution and ultra-clear images for easy object identification with the latest technology of computer control and image processing. Projected images in both vertical and horizental directions can be obtained no matter how the inspected object is oriented. The tunnel size allows inspection of large articles. It is ideal for security inspection of hold carried articles at airports, customs,railway stations, seaports, warehouse,etc.

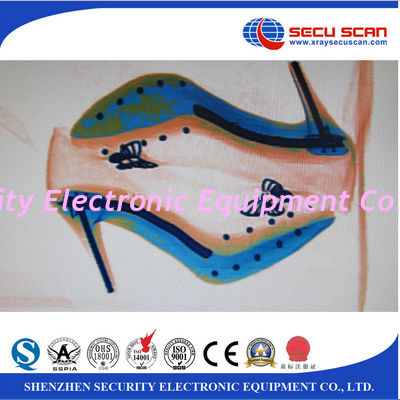

      SECUSCAN AT10080D can distinguish organic and inorganic materials by atomic

 composition of the material. SECUSCAN AT10080D can distinguish explosives/drugs and realize Threat Image Project Function through adding different option. The operator can easily identify materials with the following coloring scheme:

  Organic material--orange

  Inorganic material--blue

  Mixed material--green

  High density material--red

General Specification :

Tunnel Size: 1000(W)*800(H)mm
Conveyor Speed: 0.22m/s
Conveyor height : 301mm

Conveyor running direction: bi-direction

Conveyor Max Load:200kg
Wire Resolution: 38AWG guaranteed, 40AWG typical

Steel Penetration: 38mm guaranteed, 40mm typical

Film Safety : guarantee ISO 1600 film

Throughput : Typically 720 bags per hour

X-ray Leakage: <1.0µ Sv / hr(at a distance of 5cm From external housing)

Self-diagnostic:system self-diagnostic when power on

Generator self-protection function: self adjust generator power on by time of system unused

Image System :

* X-ray Sensor: double L-Shaped Photodiode Arrays ,16bit deep .

* Monitor: High Resolution Color, LCD Accord, double 17 inch monitors

* Image Processing: Black / white, Color, abundant energy , variable absorptive, elimination of inanimate matter, elimination of organism, super-enhance, reversed color, high energy penetration, low energy penetration, image strengthening, image lightening, reducing darkening.

* Memory gray level : 65536

* Image Max Resolution: 1024 * 1280 pixel

* Image Processing: 24bit for processing real time

* Image storage: Storage 100,000 pictures in real time

* Image review:Detected images review (any one)

* Zoom: 32/64 Times Enlarge, Whole screen continuous observation

* Standard parts: menu, electricity testing, date/time display, auto-counting of objects detected, operator license number, maintenance record, system start up/ x ray generator, radial beam timing, operating mode display

* Multi-energetic distinguish retrieval Objects: Selective detection of

Objects by atomic number, organic objects in orange, inorganic objects in blue, mixture in green.

* Assist to detect drug and explosive powder, according to the material composition characteristics

of explosives and drugs, this device can detect.

* TIP function: Dangerous goods image is provided by the insert function (TIP), which can be convenient for training and assessing the operator’s image and recognition ability.

* To connect Ethernet network

* Alarm System: If the machine fails to penetrate a particular item, then an visual alarm will be generated to notify the operator

* Personal identification number: The Operator personal identification number can be entered through keyboards.

* Software password protection : All software features of machine are online and password Protected and all software features are controlled from key board of machine only

*  Online recording facility : The machine has online recording facility and images can be transferred to external storage device through USB port.

X-ray Generator :

Beam direction: from side and bottom   Beam divergence : 80 degree

Anode Voltage: 160Kv

Anode power: 0.2 to 1.2mA

Cooling / Duty Cycle: Oil Cooling /100%

Computer Character

Computer CPU: Intl Core 3 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB Little low version, Motherboards: Intel G41, Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1and 1PCI BX press *16 .

Memory: 2GB,1333MHz

Hard Disk drive: 500GB

Computer system: Windows 7

Other Characters :

*Keyboard Protection: IP43
Machine Protection: IP20

Dual direction scanning

1m length extended luggage ramp
Extension Stainless Steel Rollers: Optional
UPS (Uninterrupted Power Supply): Optional

Audio and visual alarm (optional)

Monitor Table: two LCD monitors, made in stainless steel, it have vents and transparent parts
LCD monitor: 19 inch (optional)

Operating Environment :

Operation temperature/Humidity: 0℃-45℃/95%(non-condensing)

Storage Temperature/Humidity: -40℃-60℃/95%(non-condensing)

Operation Power: 187~240VAC, 50-60Hz

Power Consumption: 0.8 KW

Noise: <58db
